6

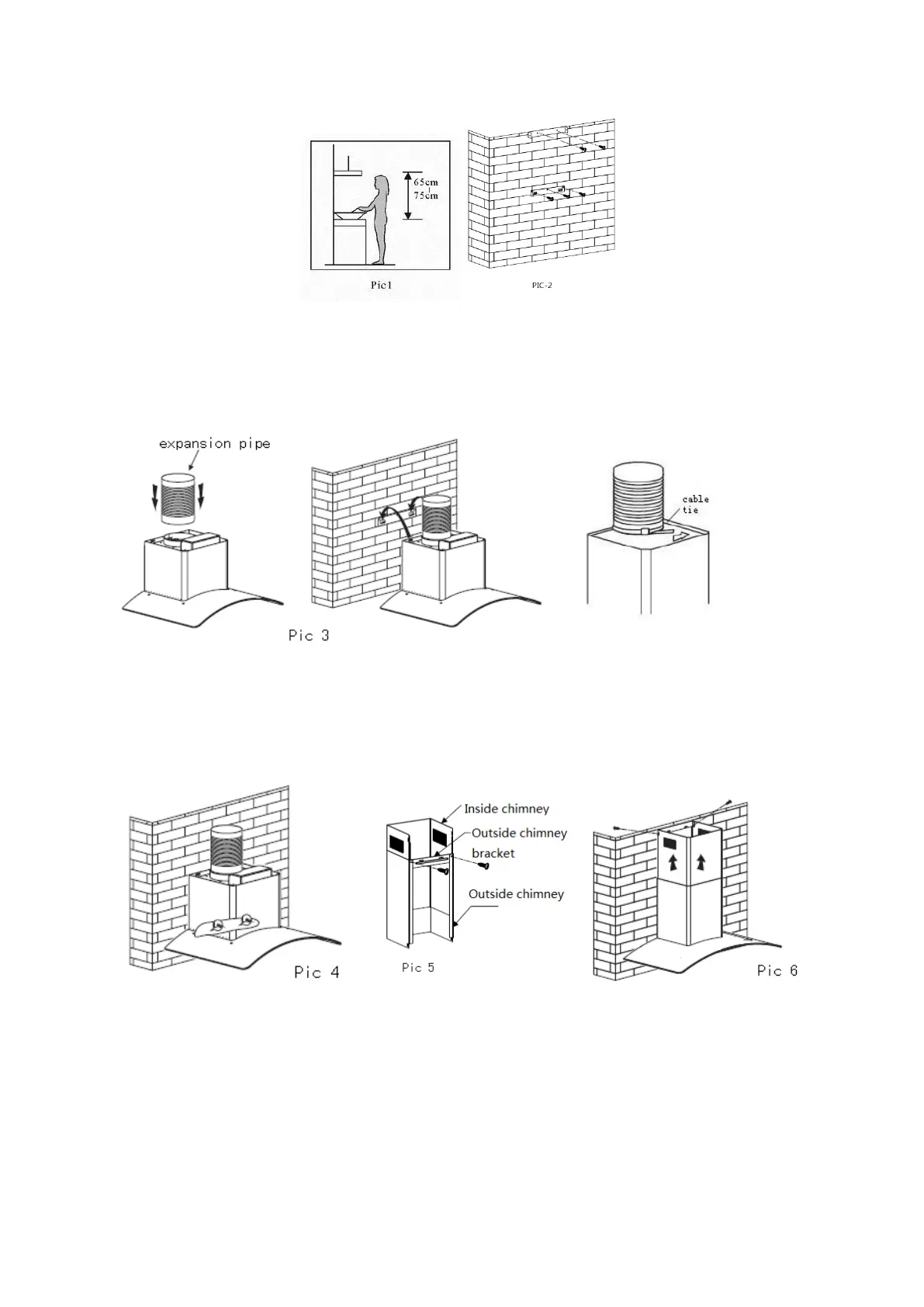

3. Install the hook on a suitable place once the installation height is fixed, and keep it
in line. The fixed position of the inside chimney bracket is the place of chimney. See
pic 2.
4. Attach the expansion pipe onto the one-way-valve as shown below,and fix the pipe
on the valve by cable tie.And then put the cooker hood on the hook. See pic 3.After
adjust the height,fix the body with 2 pcs ST4*30mm safety screws.See Pic 4.
5. Lead the expansion pipe outside of the room, then use 2pcs ST4*8mm screws to
install the outside chimney bracket onto the outside chimney, here should be sure the
inside chimney can be moved inside freely. See Pic 5.
6. Put the two chimneys together onto the cooker hood body, meanwhile adjust the
height of the inside chimney into the suitable height, and fix the inside chimney to the
inside chimney bracket by 2pcs ST4*8mm screws. See Pic 6.
Note: The two safety vents are positioned on the back housing, with diameter of 6mm.
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure
loss.
