Press cord into cord clip on back of
handle. Pull cord tight and wrap cord
around hooks (A2).
5
1-10
1 - 1 1
1 - 1 2
1 - 1 3
1 - 1 4
1 - 1 5
A2
H
G
F

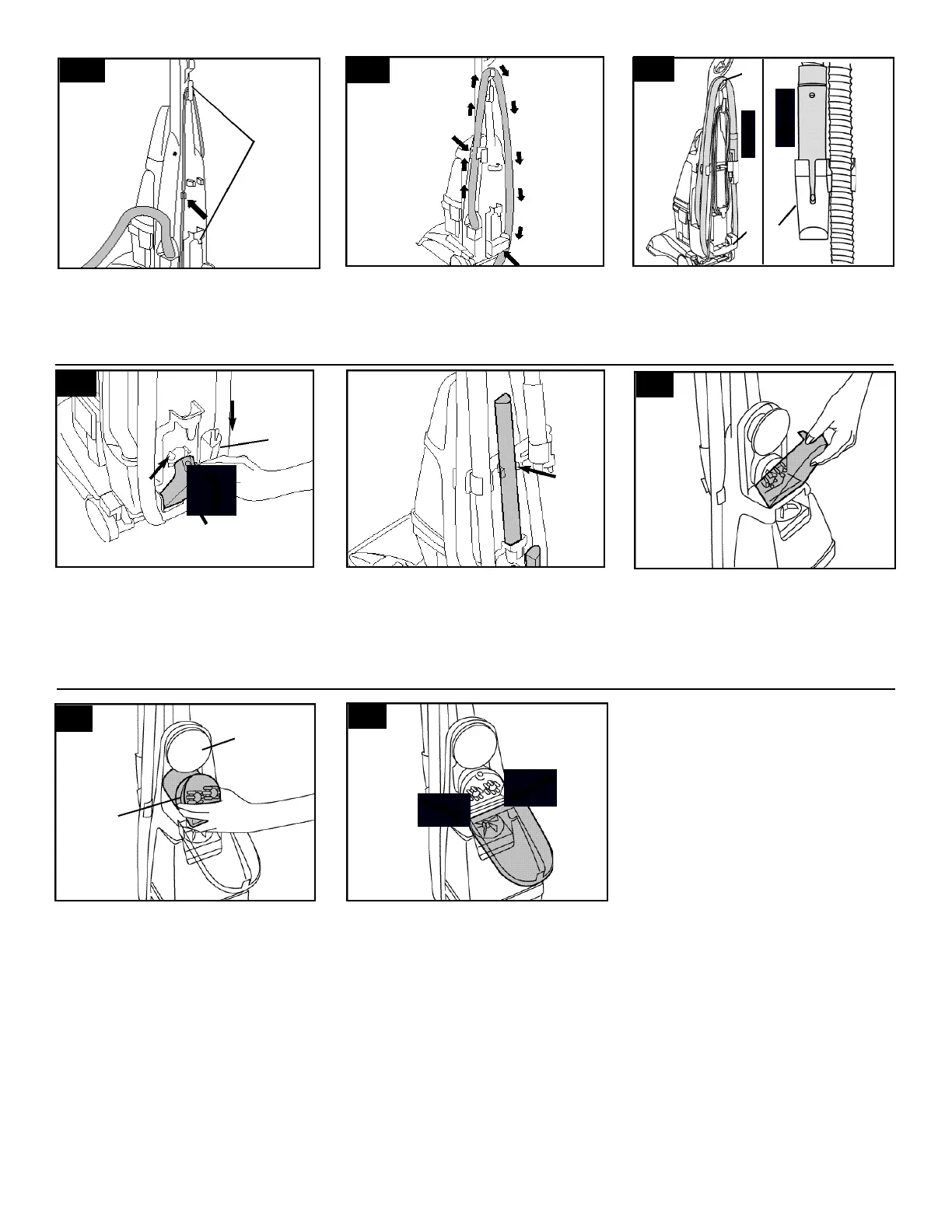

Storing hose & tools
Store hose on rack by first positioning
hose in front section of clip.
I
Continue wrapping hose over upper
hose hook (F) and under lower hook (G).
Snap hose end fully into holder (H).
Ensure that the hose end is pushed
down completely into holder (H).
Slide crevice tool (I) into holder.
Position stair/upholstery nozzle in holder
at base of cleaner and snap it into place
as shown at arrow.
Insert end of bare floor attachment into
holder and snap into clip as shown.
Powered hand tool
The powered hand tool is shipped in a
plastic bag for protection. Remove the
bag before using the tool by first open-
ing tool door.
To remove powered hand tool (J), pull it
down and outward.
To reposition the tool, reverse this proce-
dure.
To remove the scrub module (K), grasp
it at the sides and pull it forward.
To reposition module, fit tabs in the stor-
age area into holes on back of module.
Push module to snap it securely into
position.
How to reattach tool
cover
The tool cover is designed with a break-
away feature which allows it to snap free
if it is pushed open too far.
To reattach, align hinges of cover with
holes on sides of tool storage area.
1 - 1 7
J
K
1 - 1 6
