ATTACH HANDLE
POSITION TOOLS

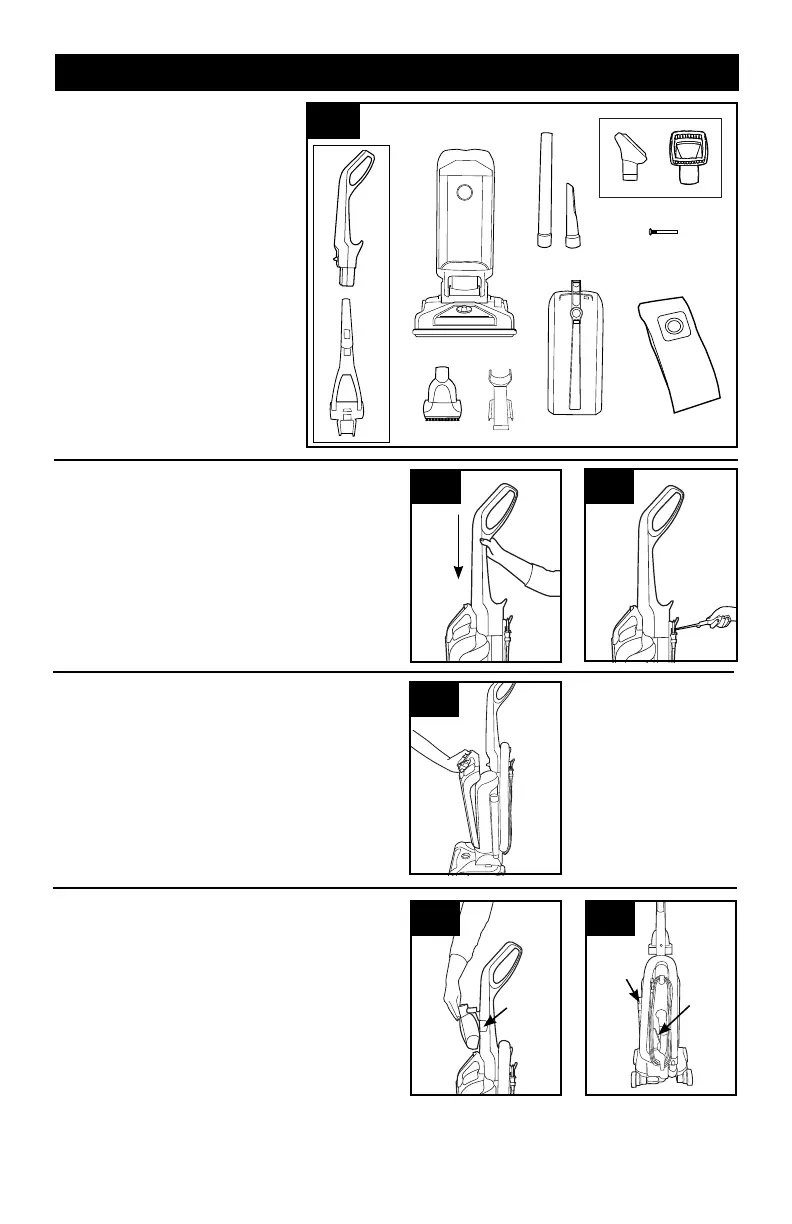

1. VACUUM ASSEMBLY
A. Handle*
B. Vacuum Base
C. Powered Hand Tool*
D. Powered Hand Tool Clip
E. Wand
F. Crevice Tool
G. Dusting/Upholstery Tool*
H. Screw (for assembly)
I. Bag Door
J. Bag
*Tool varies per model.
Remove all parts from carton and
identify each item shown.
Make sure all parts are located before
disposing of packing materials.
5
1.3
1.2
Note: Remove the screw located in the vacuum
base and set aside until instruction 1.3
1.2 Insert handle section into vacuum base. Push
down firmly.
1.3 Using a Phillips screwdriver, fasten (1) screw
behind handle into vacuum base.
ATTACH BAG DOOR
1.4
1.4 Place bottom of Bag Door into vacuum body
first. Make sure the filter bag is securely tucked into
the vacuum. Pivot Bag Door into vacuum. Bag
Door is secure when you hear a click.
1.5 1.6
1.5 Secure Powered Hand Tool Clip (A) over
ridges on side of handle. Attach bottom of Powered
Hand Tool and pivot into clip until secure.
1.6 Place Crevice Tool into Wand and slide into
tool storage area on left back side (B) of vacuum
and place Upholstery Tool on back side (C) of
vacuum as shown.
B
C
CARTON CONTENTS
A
A
B
C
E
1.1
F
G
H
D
J
I
Actual model may vary from images shown.
