Hoover WindTunnel Owner's Manual

5
Continued ➜
1. Handle
2. ON/OFF switch
3. Tool cover
4. Dusting brush
5. Powered hand tool*
or Crevice tool*
(depending on model)
6. Furniture nozzle
7. Dirt cup latch
8. Dirt cup lid
9. Dirt cup
10. Dirt cup handle
11. HEPA cartridge filter
12. Pre-filter
13. Final filter
14.Three position handle
release pedal: step on
lever to lower handle to
operating or low positions.
15. Nozzle control knob: slide
knob to correct setting for
height of carpet being
cleaned.
16. Furniture guard
17. Headlight
18. Edge groomers
19. Hose
20. Hose rack
21. Cord hooks: wrap
cord around hooks for
storage. The top hook
can be rotated right or
left for easy cord
release.
22. Carrying handle
23. Extension wands
24. Crevice wand*: stores
in rear wand.
*Some models only
2-1
Cleaner description
1
2
13
14
5
6
7
8
9
10
11
12
16
15
17
18
21
20
24
22
4
2. How to use
23
3
19

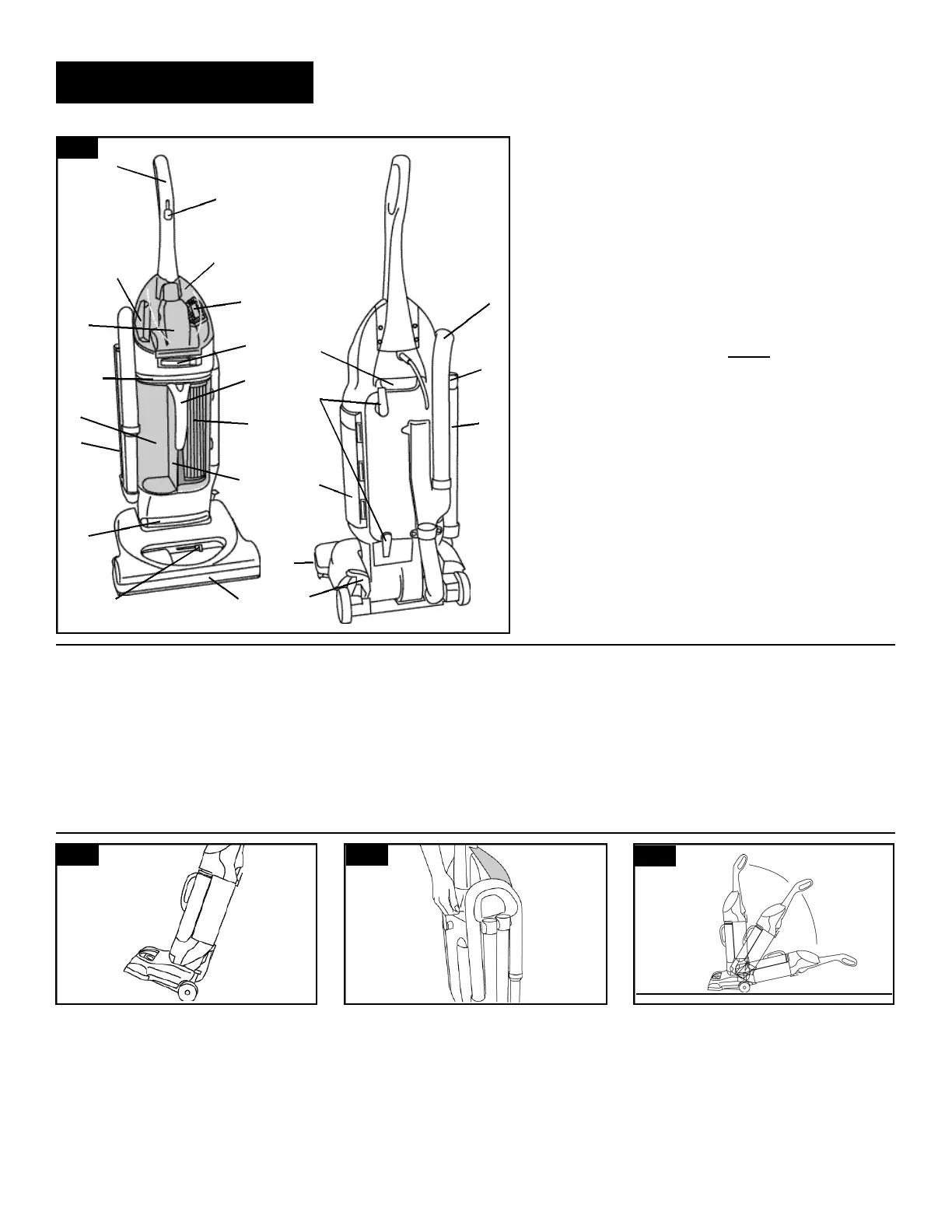

The assembled cleaner will look like the drawing.
Model with Powered Hand Tool is shown.
Operate cleaner only at
voltage specified on data
plate on bottom of
cleaner.
This cleaner is intended
for household use.
Polarized plug
To reduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install the
p r oper outlet. Do not change the plug in
any way.
ON-OFF switch
Plug cord into electrical outlet.
To turn cleaner ON, push switch up.
To turn cleaner OFF, push switch down.
2-2
2-3
2-4
Carrying cleaner
The cleaner can also be moved by
using the carrying handle.
Handle positions
The handle of your cleaner has three
positions; upright for storage and when
using cleaning tools; operating posi-
tion for general operation on carpet
and floors; low for reaching under low
furniture. Step on handle release lever
to lower handle.
Transporting cleaner
To move your cleaner from room to
room, put handle in upright position, tilt
cleaner back on rear wheels and push
forward.

Hoover WindTunnel Specifications

General

Type	Upright
Bagged/Bagless	Bagless
Filter Type	HEPA
Power	12 amps
Features	WindTunnel Technology
Dust Capacity	1.5 liters
Height	44 inches
Width	13 inches
Color	Blue
