continuous test function of M1 and M2.
10. Test resistance comparator upper limit setting (insulation resistance test)
In the insulation resistance test mode, use the "▲" or "▼" key to select the
setting of the "upper limit of judgment value" on the measurement parameter setting
interface, as shown in the figure below.

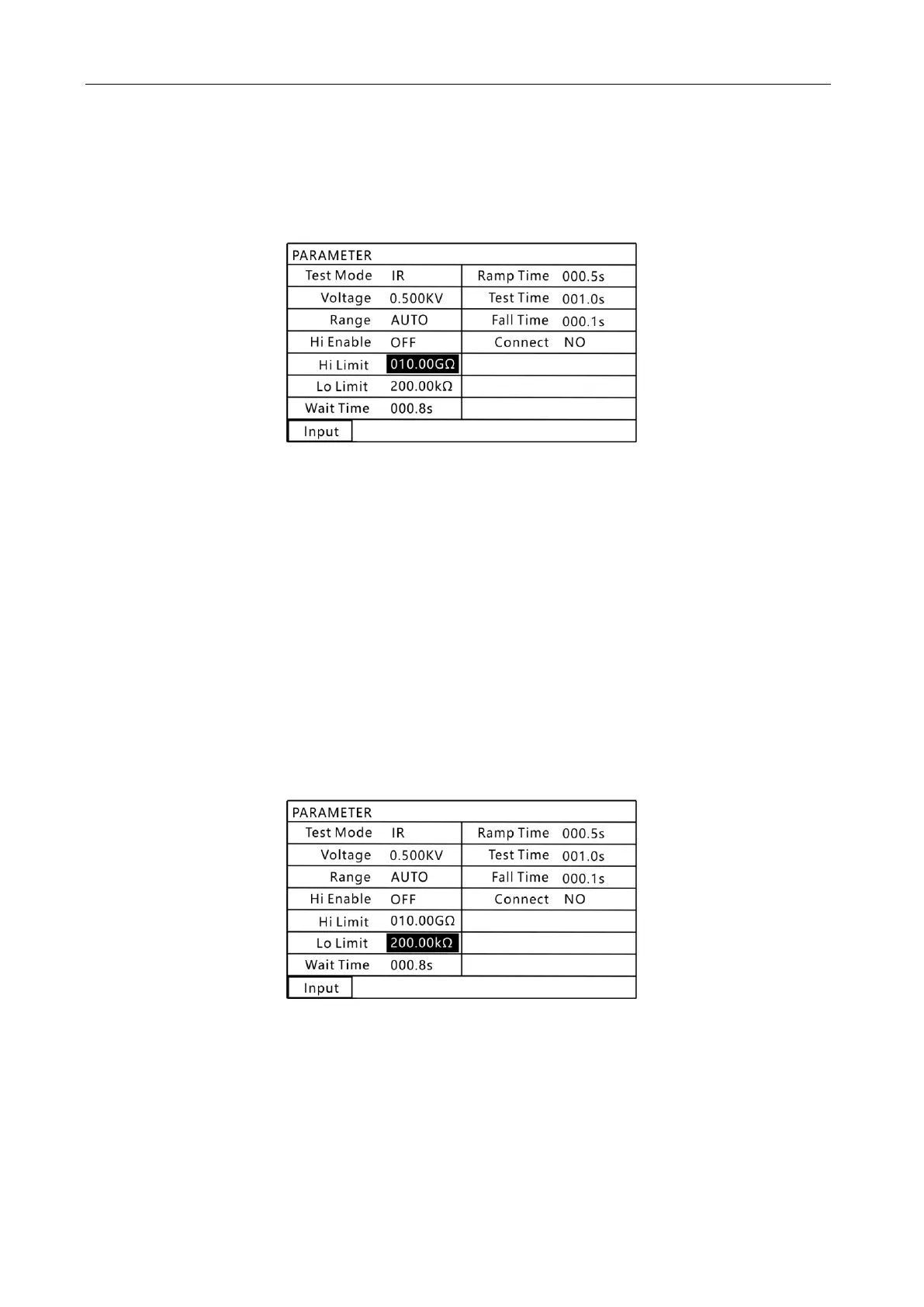

8.16 Insulation resistance "judgment value upper limit" setting interface
In this interface, press the "Input" key, the first digit of the voltage value will
appear in reverse, and use the numeric keys to set the upper limit of the required
judgment value. After setting, press “Enter” to confirm. To cancel the setting, press the
"Esc" key to exit the current setting.
Note: If the set upper limit set value is not in the range, the instrument will
automatically determine that it is not in the range and will automatically restore the set
value to the previous set value.
11. Set lower limit of test resistance comparator (insulation resistance test)
In the insulation resistance test mode, use the "▲" or "▼" key to select the
setting content of "lower limit of judgment value" in the measurement parameter
setting interface, as shown below:
8.17 Insulation resistance "judgment lower limit" setting interface
In this interface, press the "Input" key, the first digit of the voltage value appears
in reverse, and use the numeric keys to set the required lower limit of the judgment
value. After setting, press “Enter” to confirm. To cancel the setting, press the "Esc" key
to exit the current setting.
Note: If the set lower limit setting value is not in the range, the instrument will
automatically determine that it is not in the range and will automatically restore the
