Model Assembly
Horizontal Tail Installation

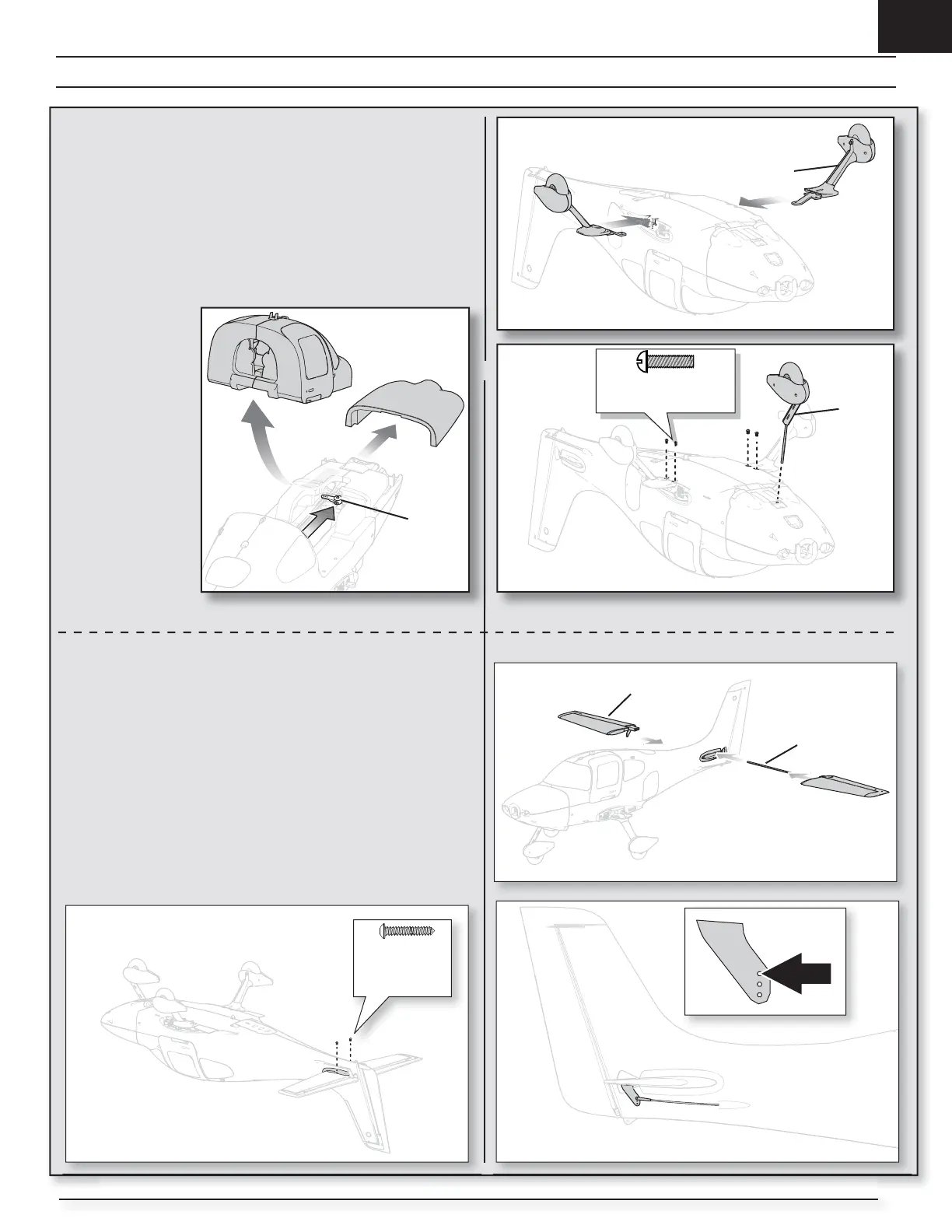

1. Insert the horizontal tail joiner tube (A) into the fuselage. Slide the horizontal
tail halves (B) into place with the control horn facing down.
2. Secure the horizontal tail piece in place using the included 2 screws (C). Use
caution to avoid over-tightening the screw.
3. Attach the pushrod to the elevator control horn using the included clevis.
Landing Gear Installation
Main Gear
1. Install the landing gear assemblies (A) into the mounting locations on the
sides of the fuselage as shown.
2. Secure the landing gear into place with the 4 included 3 x 8mm screws (B)
as shown.
Nose Gear
3. Remove the top half of the cowl by pulling straight forward; the cowl is
retained with magnets and aligned with pins.
4. Install the nose gear
assembly (C) into the
pivot block on the
bottom of the fi rewall as
shown.
5. Tighten the 3 x 8mm
screw in the nose gear
control arm (D) so it
grasps the nose gear
strut on the fl at spot
6. Re-install the cowl
B
C
2 x 10mm
self-tapping
button head
A
A
B
C
3 x 8mm
button head machine
B
D
5
To Next Page
