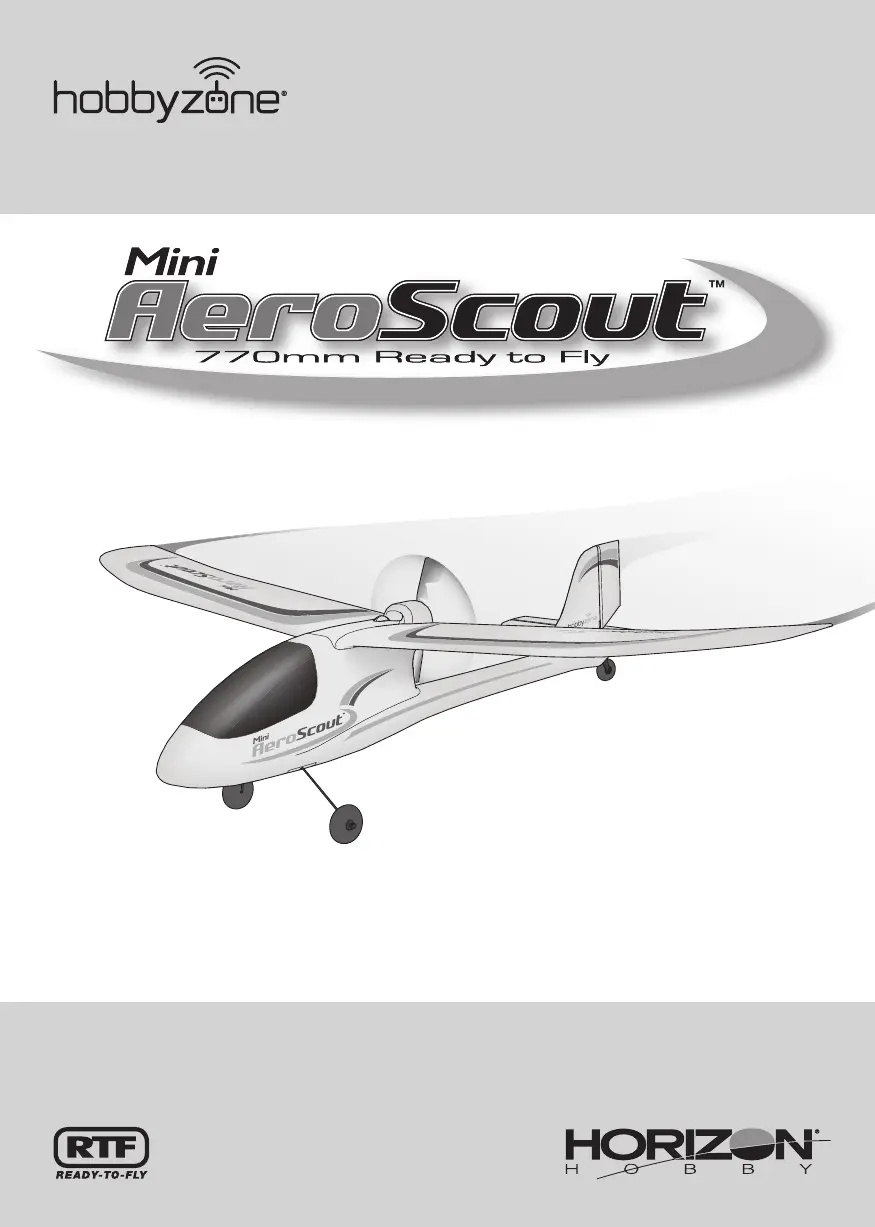

Horizon Hobby Hobbyzone Mini AeroScout - User Manual

Horizon Hobby Hobbyzone Mini AeroScout
15 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni

Questions and Answers

  • L
    Larry AndersonAug 14, 2025
    What to do if LED on receiver flashes rapidly and Horizon Hobby Hobbyzone Mini AeroScout Toy aircraft will not respond to transmitter after binding?
    • K
      kristinroachAug 14, 2025
      If the LED on the receiver flashes rapidly and the aircraft doesn't respond after binding, there might be a few reasons. Ensure at least 5 seconds have passed between powering on the transmitter and connecting the flight battery to the aircraft. If not, leave the transmitter on, and disconnect and reconnect the flight battery to the aircraft. Also, check if the flight battery or transmitter battery charge is too low, and replace or recharge them as needed. The transmitter may have been bound to a different model, so select the correct one or bind to the new one. Finally, make sure the aircraft and transmitter aren't too close to large metal objects, wireless sources, or other transmitters; move them to a different location and try connecting again.
  • M
    mmcgeeAug 17, 2025
    What to do if LED on receiver flashes rapidly and Horizon Hobby Toy aircraft will not bind to transmitter during binding?
    • C
      Christopher LopezAug 18, 2025
      If the LED on the receiver flashes rapidly and the aircraft won't bind to the transmitter during binding, it could be due to several factors. First, the transmitter might be too close to the aircraft during the binding process. Power off the transmitter, move it further away from the aircraft, disconnect and reconnect the flight battery to the aircraft, and then follow the binding instructions. Another reason could be that the bind button wasn't held down while the transmitter was powered on; power off the transmitter and repeat the binding process. Lastly, the aircraft or transmitter might be too close to a large metal object, wireless source, or another transmitter; move both to a different location and try binding again.
  • M
    martinsarahAug 21, 2025
    Why Horizon Hobby Toy aircraft will not respond to throttle but responds to other controls?
    • M
      megan08Aug 21, 2025
      If the aircraft doesn't respond to the throttle but responds to other controls, it could be because the throttle stick and/or throttle trim is too high; reset the controls with the throttle stick and throttle trim at the lowest setting. Another potential cause is that the motor is disconnected from the receiver; open the fuselage and ensure the plug for the motor is properly installed.
  • C
    Christopher SmithAug 26, 2025
    Why does my Horizon Hobby Hobbyzone Mini AeroScout Toy have reduced flight time or is underpowered?
    • S
      Steven MartinezAug 26, 2025
      Reduced flight time or an underpowered aircraft can be due to several reasons. The flight battery charge might be low, so completely recharge it. The flight battery could also be damaged, in which case you should replace it and follow the battery instructions. Cold flight conditions can also affect performance, so ensure the battery is warm before use. Finally, the battery capacity might be too low for the flight conditions; replace it or use a larger capacity battery.
  • L
    Lauren CrawfordAug 28, 2025
    What to do if Horizon Hobby Hobbyzone Mini AeroScout Toy control surface does not move?
    • B
      Bethany RhodesAug 28, 2025
      If a control surface doesn't move, several issues could be the cause. There might be damage to the control surface, control horn, linkage, or servo; replace or repair any damaged parts and adjust the controls. A wire could be damaged, or connections might be loose; check the wires and connections, and connect or replace them as needed. Also, check if the flight battery charge is low and fully recharge it. Finally, ensure the control linkage moves freely.
  • P
    Patrick GriffinSep 1, 2025
    What to do if Horizon Hobby Toy motor power pulses then loss of power?
    • C
      Cassandra GallegosSep 1, 2025
      If the motor power pulses and then there is a loss of power, it is possible that the battery power is down to the point of receiver/ESC Low Voltage Cutoff (LVC). Recharge the flight battery or replace the battery if it is no longer performing well.
  • A
    alexandrazamoraSep 5, 2025
    Why does Horizon Hobby Toy motor loses power?
    • T
      Terry MartinezSep 5, 2025
      If the motor loses power, it could be due to damage to the motor or power components. Check the motor and power components for any damage and replace them as needed.
  • D
    Donald SuarezSep 8, 2025
    Why is there extra propeller noise or extra vibration in my Horizon Hobby Toy?
    • C
      Connie MaySep 9, 2025
      Extra propeller noise or vibration could be due to a damaged propeller, prop shaft, or motor. Replace any damaged parts to resolve the issue.

Summary

Safety Precautions and Warnings

General Safety Guidelines

Essential safety rules to prevent injury and damage during operation. Covers safe distances, environment, and handling.

Preflight Preparation and Charging

Battery Charging Procedures

Instructions and warnings for safely charging the Li-Po flight battery using the included charger.

Aircraft Assembly

Step-by-Step Assembly

Detailed instructions for assembling the aircraft's fuselage, landing gear, and wing.

Transmitter Setup

Transmitter Control Layout

Identifies all buttons, sticks, and trims on the transmitter.

Flight Battery and Binding

Install Flight Battery and Arm Aircraft

Instructions for connecting the battery and arming the motor for operation.

Control Surface Setup

Control Direction Test

Verifies that control surfaces move in the correct direction relative to stick inputs.

Flying Techniques

Maintenance and Repairs

Propeller and Troubleshooting

Common Troubleshooting Issues

Solutions for problems like no response, extra noise, or reduced flight time.

Horizon Hobby Hobbyzone Mini AeroScout Specifications

General IconGeneral
Skill LevelBeginner
Radio SystemSpektrum
Servos2
ChargerUSB
MaterialEPO
Recommended Age14+
