WARNING
Danger of injury due to unexpected door travel
Unexpected door travel can occur when the emergency
battery HNA 18 is still connected despite the mains plug
being pulled out.
Disconnect
▶
the emergency battery HNA 18 – and mains plug,
or with a fixed connection,
(see section – 3.2.1) turn off the system power.
Prevent the door system from being switched back
▶
on without authorisation in accordance with the safety
regulations.
3.3.6 Signal transmitter for forced opening attempt *
A magnet switch fixed to the door can detect a forced
opening attempt and activate a signal transmitter connected
here (24 V max. 100 mA, Figure 9.1b) for max. 3 minutes
(see section 3.4.4).
3.4 Connecting additional components
to the motor connection circuit board
Terminal S1, static current circuit RSK 13.4.1
See Figure
▶
1.4
Connection of the switch to the decoupling mechanism
(mechanical release, see section 6.7).
Terminal S2, static current circuit RSK 23.4.2
See Figure
▶
1.4
Connection of an optional safety switch.
Terminal S3, static current circuit RSK 33.4.3
See Figure
▶
1.4
Connection of an optional safety switch.
3.4.4 Terminal S4, magnet switch for forced
opening attempt*
See Figure
▶
10
If the door is closed, a magnet switch fixed to the door can
detect a forced opening attempt. Actuation of the switch
connected here activates the signal transmitter
(see section 3.3.6).
* Accessory, not included as standard equipment!
Putting the Control Into Service4
4.1 Preparations

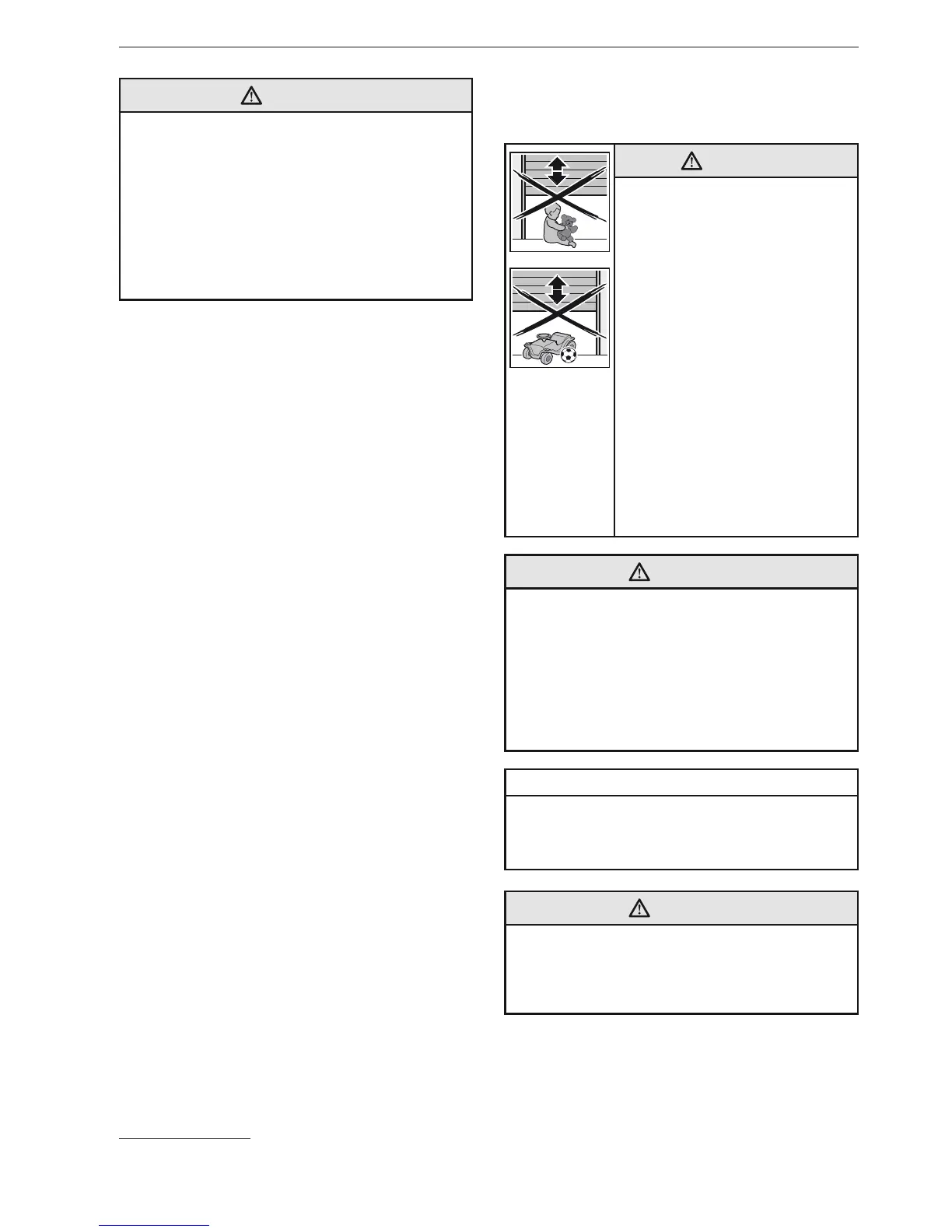

WARNING
Danger of injury during door travel
If people or objects are near the door
while the door is in motion, this can lead
to injuries or damage.
Children are not allowed to play
▶
near the door system.
Make sure that no persons or
▶
objects are in the door's area of
travel.
If the door has only one safety
▶
device, only operate the roller
garage door operator if you are
within sight of the door's area of
travel.
Monitor the door travel until the
▶
door has reached the end-of-travel
position.
Only drive or pass through remote
▶
control door systems if the door is
in the Open end-of-travel position!
Never stay standing under the open
▶
door.
CAUTION
Danger of door falling
Before the spring assembly is fitted, no persons may be
located near the door, as it may fall.
Do not come near the door until the spring assembly has
been fitted.
Danger of crushing in the side guide
Do not reach into the side guide with your fingers during
door travel, as this can cause crushing.
Do not reach into the guide rail during door travel.
▶
ATTENTION
Overloading the release knob
The release knob can be damaged by overloading.
Do not hang on the release knob with your
▶
body weight.
CAUTION
Danger of injuries due to the hot lamp
Touching the lamp during or immediately following
operation can lead to burns.
Do not touch the lamp if it is switched on or was
▶
recently switched on.
During mechanical fitting of the roller garage door, the curtain
can be rolled onto the shaft, by means of the operator. To do
this, the operator and the control must be fitted and
electrically connected to the 4-wire cable as specified in the
“Instructions for Fitting, Operation and Maintenance of the
Roller Garage Door”.
The following steps must be completed:
TR10A073-B RE / 02.2012 25
