TR10A108-B RE / 02.2013
11
For sectional doors with central 3.
door locking, fit the lintel joint
and link bracket off-centre
(max. 500 mm).
NOTE:

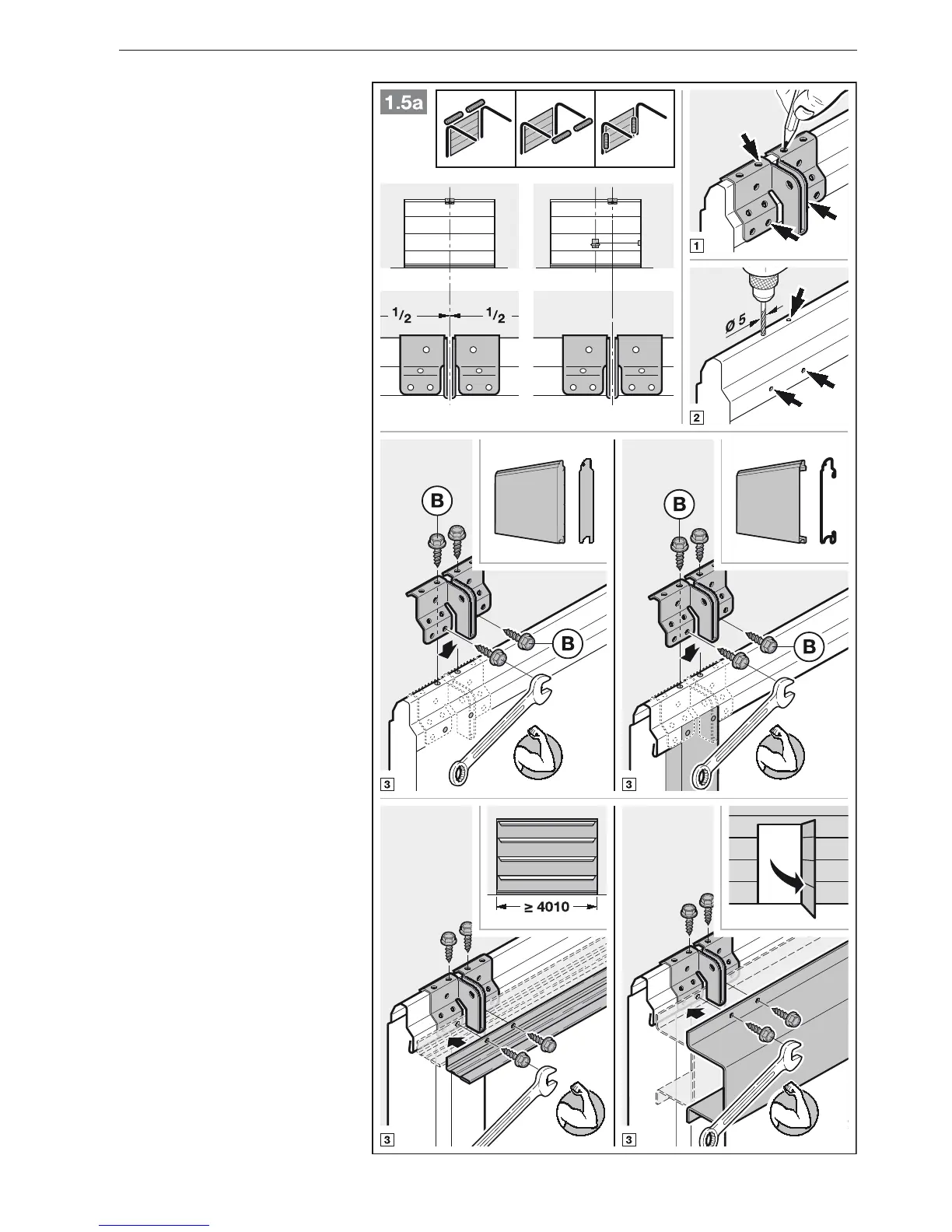

Not illustrated in figure 1.5a: use the
5 × 35 woodscrews from the door
accessory pack (hole Ø 3 mm) for
timber doors.
ENGLISH
