Hörmann SupraMatic - System Control: Relay, Pre-warning, Timer

46
TR10A108-B RE / 02.2013
Symbol Menu Action Note

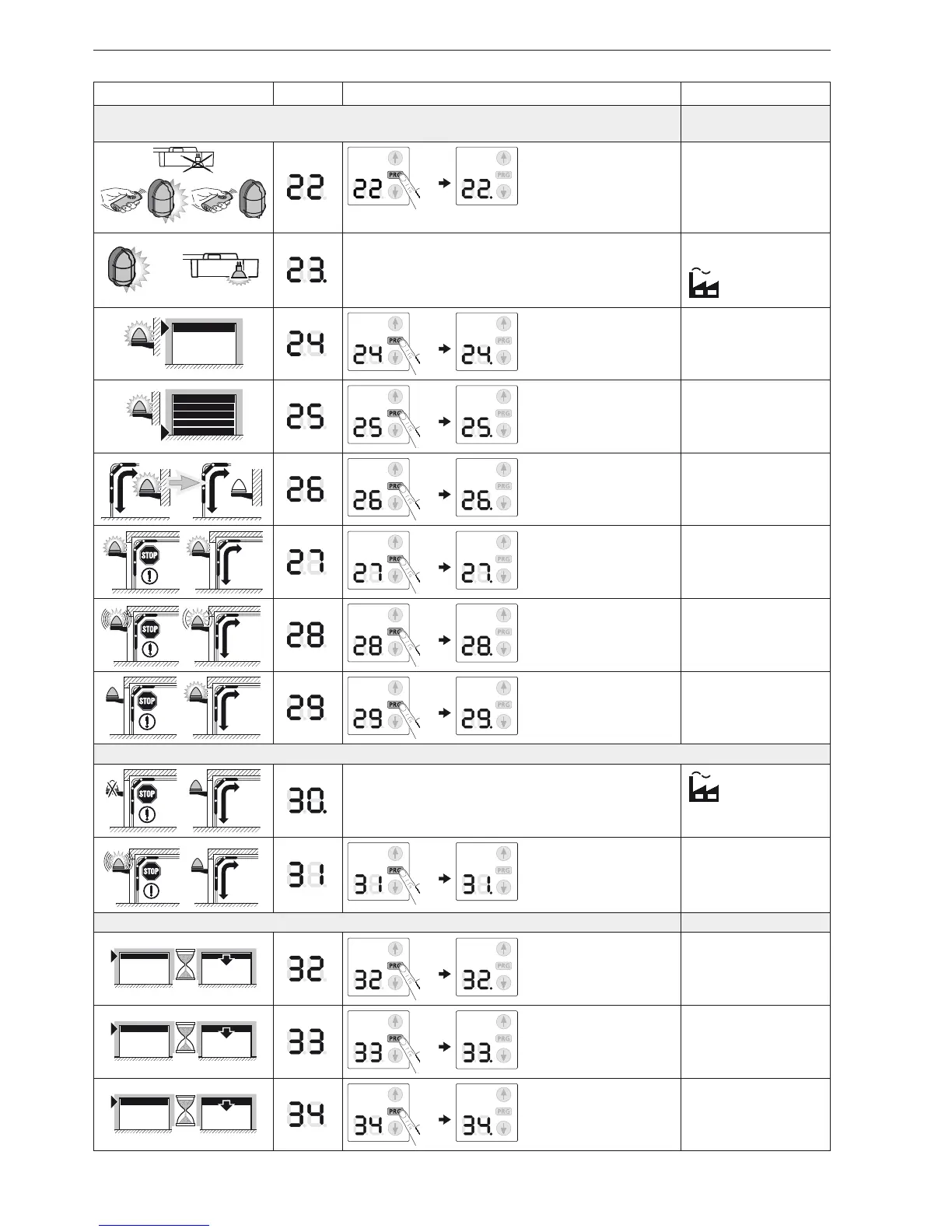

Additional functions with relay
(HOR 1 or
3rd relay UAP 1)
External light on/off
=
Function same as
operator light
Open end-of-travel
position signal
Close end-of-travel
position signal
1 sec.
Momentary signal on
receiving the Open
command
Start / advance warning
permanent signal
Start / advance warning
flashing
Relay picks up during
travel
Pre-warning time
5 sec.
Hold-open phase for automatic timer Photocell required
30 sec.
60 sec.
120 sec.
