TR10A108-B RE / 02.2013
9
Note section
▶
3.2.
– Clearance required
Completely disassemble the 1.
mechanical door locking. Disengage
the mechanical lockings.

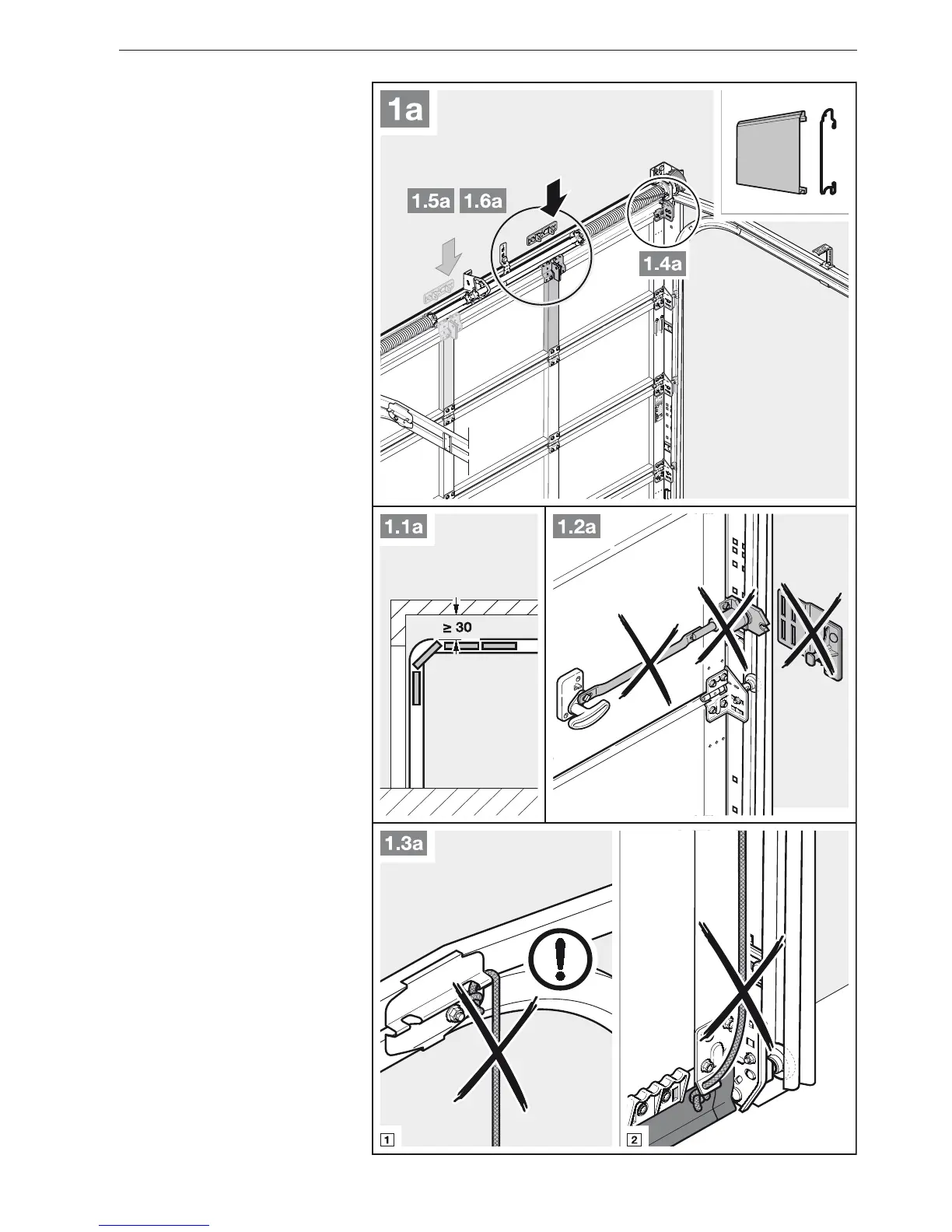

With an off-centre reinforcement 2.
profile, fit the link bracket on the
nearest reinforcement profile to the
left or right (see Figure 1a).
ENGLISH
