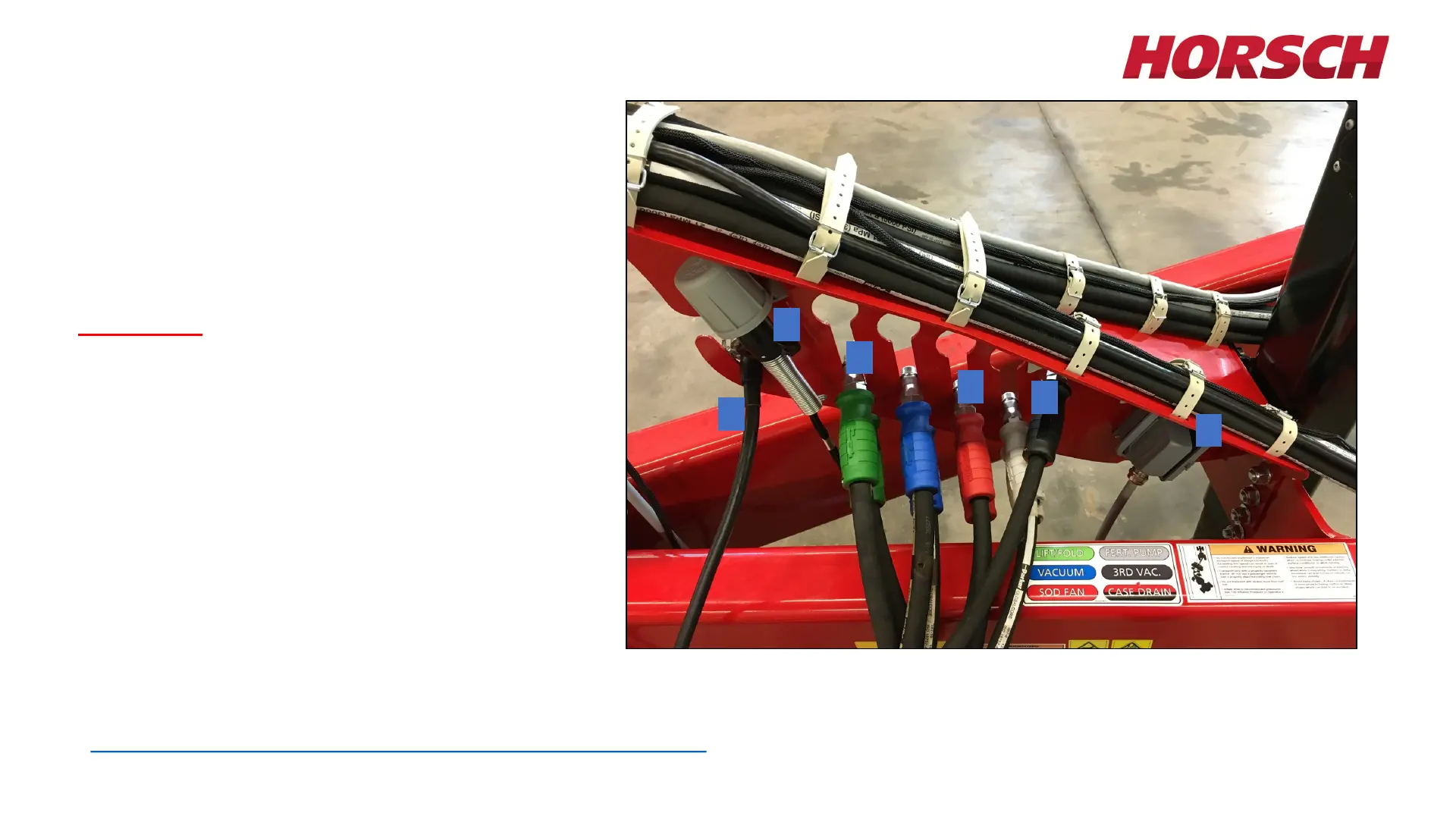

Machine Hook Up:
Avatar Hook-Up consists of the following connections:
1. Lift/Lower, Fold/Unfold Hydraulic Hoses
2. SOD Fan Hydraulic hoses
3. Case Drain Hose (single hose)
4. ISO Connector
5. Extra Power Connector
6. Road Lighting Connector
IMPORTANT! Always hook up Case Drain first, prior
to machine operation to avoid any issues!
6
5
2
1
3
4
For further information about machine operation, safety and technical specifications, see the model year specific Owner’s Manual
included with the machine, or view it electronically or download it at the official HORSCH web site located at
https://www.horsch.com/us/service/downloads/downloadcenter/us.
