Support Wheels
The support wheels stabilize the seed bar and guarantee a uniform working depth
across the entire working width. The support wheels must rest on the ground when
the machine is folded out and lowered to working position.

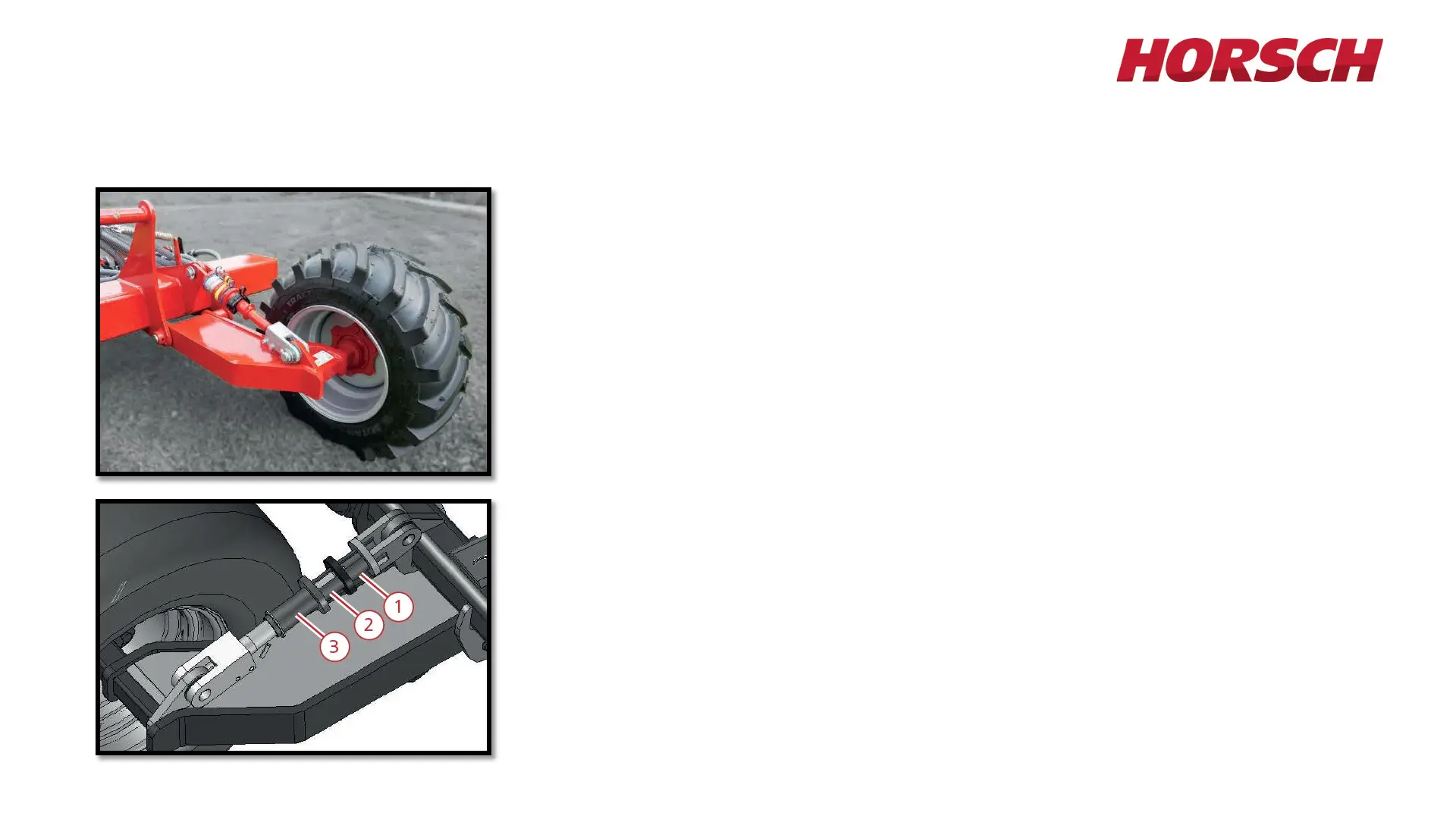

Adjusting the Support Wheels
The clips may only be removed or inserted when the respective side is relieved.
Therefor it is necessary to raise or lower the tool bar.
• Always fill all adjustment areas (1) and (2) completely with clips.
• Insert clips, which are not required, in area (3).
• Adjust both support wheels evenly.
Raising the Support Wheels
• Slightly lift the machine.
• Remove clips from area (1).
• Lower the machine.
• Reinsert the clips again in the area (2).
Lowering the Support Wheels
• Lower the machine.
• Remove clips from area (2).
• Lift the machine.
• Reinsert the clips again in the area (1).
