Avatar SD40
Folding
8
Folding
Pay attention to the seq u ence of the following steps!
• Connect the machine to the tractor.
• Connect all hoses, including the case drain!
• Fold in the railing on the catwalk platform.

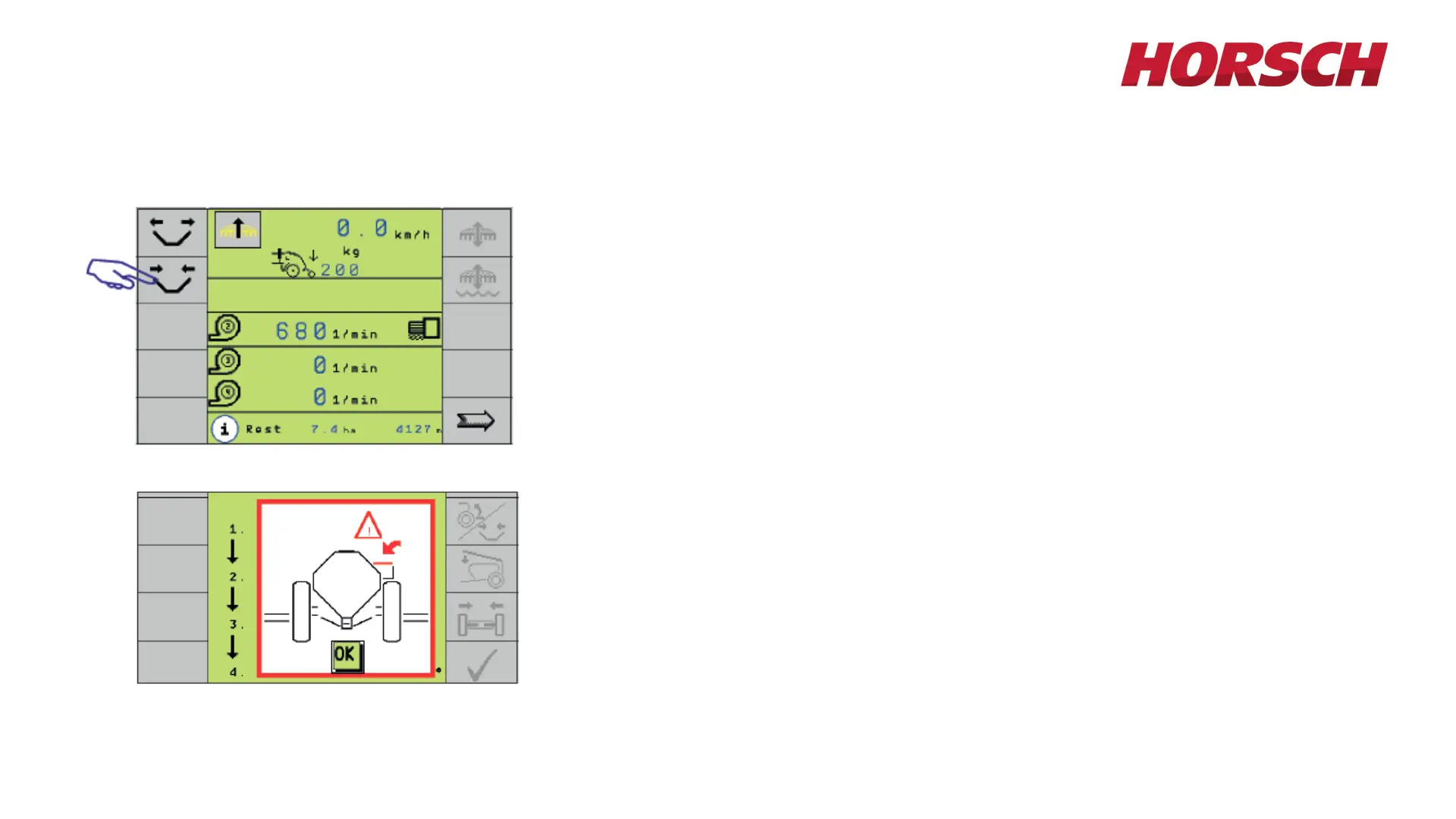

• Switch on the E-Manager and select hydraulics Lifting in the display.
• Lift the machine until the symbols for unfolding/ folding change to black.
• Remove the aluminum clips from the support wheels.
• Switch on the hydraulic Folding function in the display.
• Fold the railing and confirm in E-Manager before the wings are folded. Risk
of damages!
