Horton HT650 - Parts List and Diagram

ITEM DESCRIPTION QTY
11 AirChamber 1
12 Socket Head Cap Screw 6
13 Set Screw 2
14
1
Seal Washer 2
15 Retaining Washer 1
16 Pan Head Screw 3
22
1
 ShoulderScrew(Locking) 2
26 Hex.Bracket 1
27 RotaryAirUnionAssembly 1
28 O-ringSeal 1
29
1
Warning Sticker 1
PARTS LIST
ITEM DESCRIPTION QTY
1 Hex.HeadCapScrew 1
2 Mounting Bracket 1
3 Drive Sleeve 1
(IncludesBearing)
4 Friction Disc 1
5
1
Silicone Sleeve 2
6 Washer 1
8
1
Piston 1
(Includes Friction Facing
andSleeveBearings)
9
1
Compression Springs 2
10
1
 O-ringSeal 1

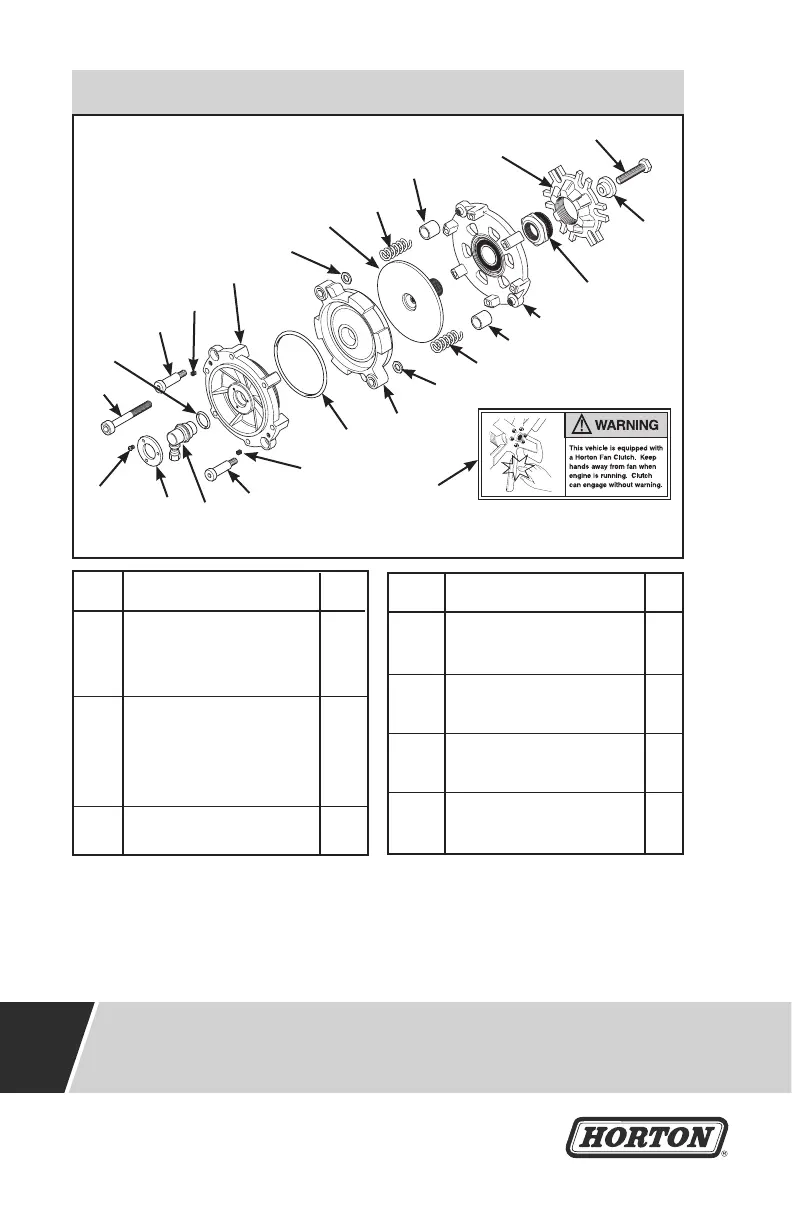

HT650 Exploded View
2
5
5
9
9
4
14
14
8
11
10
13
13
22
22
28
12
16
15
29
1
26
6
3
27
1
Denotes Repair Kit item. Repair Kit Part No. 994317.
