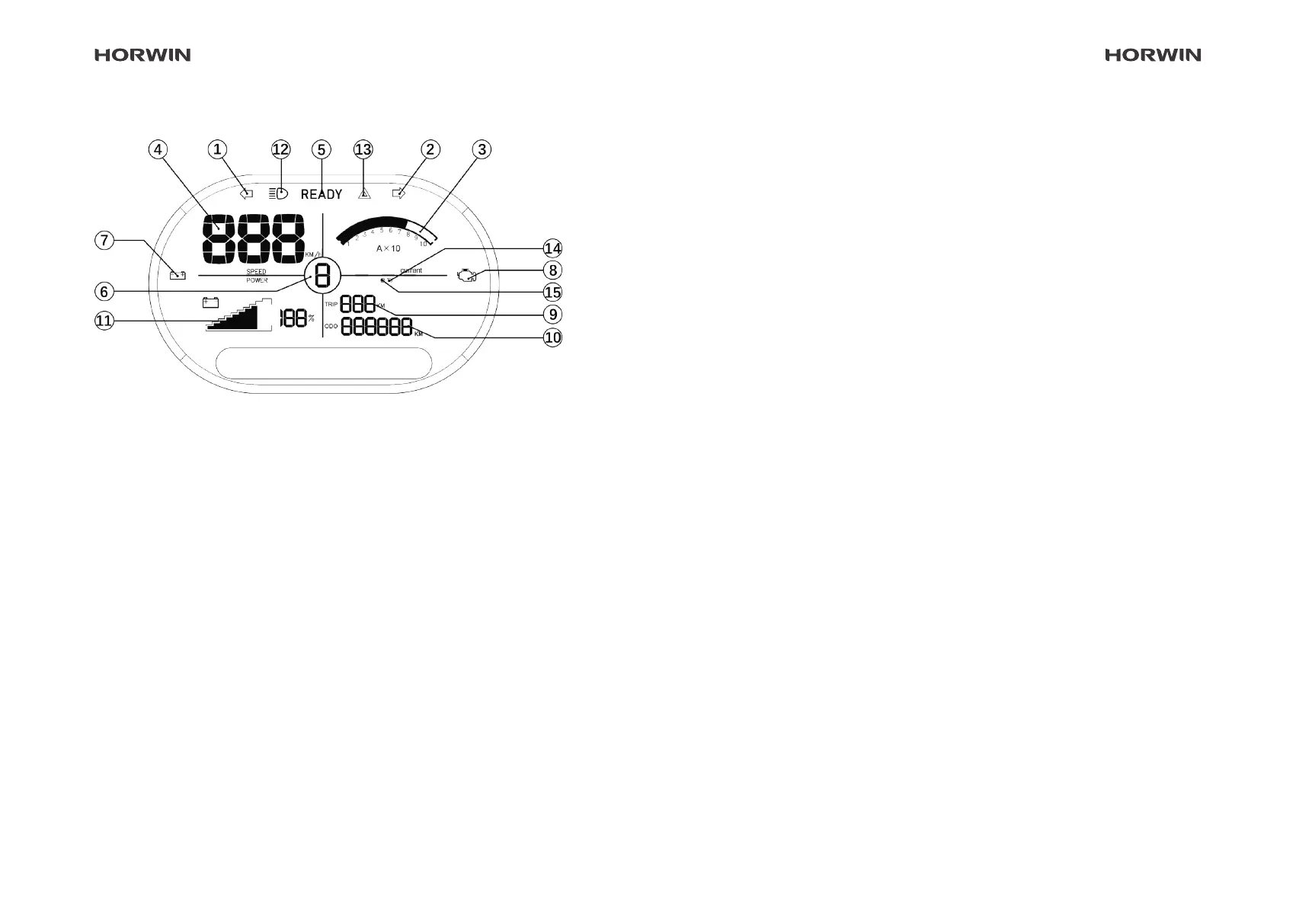

Instrument cluster / display
EK1 Light riding mode speeds:
• The maximum speed in the 1st riding mode is up to 15 km/h
• The maximum speed in the 2nd riding mode is up to 20 km/h
• The maximum speed in the 3rd riding mode is up to 25 km/h
⑦ Low battery indicator
If the battery charge level is below 20%, the indicator lights up.
⑧ Motor warning light
If an error occurs in the motor control, this symbol lights up.
⑨ Trip odometer
Display of the current distance travelled (automatic reset after
restart).
⑩ Total mileage
Display of the total mileage reading.
⑪ Battery charge level indicator
Displays the current battery charge level as a percentage.
⑫ High beam indicator lamp
This indicator lights up when the high beam is switched on.
⑬ Hazard warning lights
If you press the button on the right-hand combination switch of
the hazard warning lights, the left and right indicators and this
symbol ash.
⑭ Cruise control system
• Pressing the cruise control button causes the vehicle to con-
tinue travelling at the current speed.
• The cruise control can be deactivated by applying the left or
right brake or by pressing the cruise control button again.
⑮ Reverse mode indicator
• If you press and hold the reverse button on the right-hand combi-
nation switch, the vehicle is in reverse riding mode.
• Releasing the button returns the vehicle to forward mode.
① Indicator, left
This indicator light ashes when you press the left indicator.
② Indicator, right
This indicator light ashes when you press the right indicator.
③ Current power display
Displays the current consumption of the motor.
④ Speed per hour
Displays the current speed (in km/h or mph).
⑤ Operating status
Indicates the current operating status of the vehicle.
⑥ Park or riding mode
Displays the currently selected parking or riding mode.
EK1 Riding mode speeds:
• The maximum speed in the 1st riding mode is up to 25 km/h
• The maximum speed in the 2nd riding mode is up to 35 km/h
• The maximum speed in the 3rd riding mode is up to 45 km/h
