C. Door
1. C-100BAF, C-100BAF-AD
a) Door Reversal
If you would like to reverse the door swing, follow the steps below. Otherwise, skip to
section "II.D. Setup."
1) While maintaining a hold on the door, remove the hinge stop pin from hinge (B). Pull out
the bottom of the door slightly and gently remove the door from hinge (A). See Fig. 1.
2) Remove the 2 screws securing the top panel, then lift it off. See Fig. 2.
3) Remove hinge (A) and the bracket from the right side of the unit and the top brace from
the left side. Rotate hinge (A) to position the gasket notch to the inside, then fasten
hinge (A) and the bracket to the left side and the top brace to the right side. See Fig. 3.

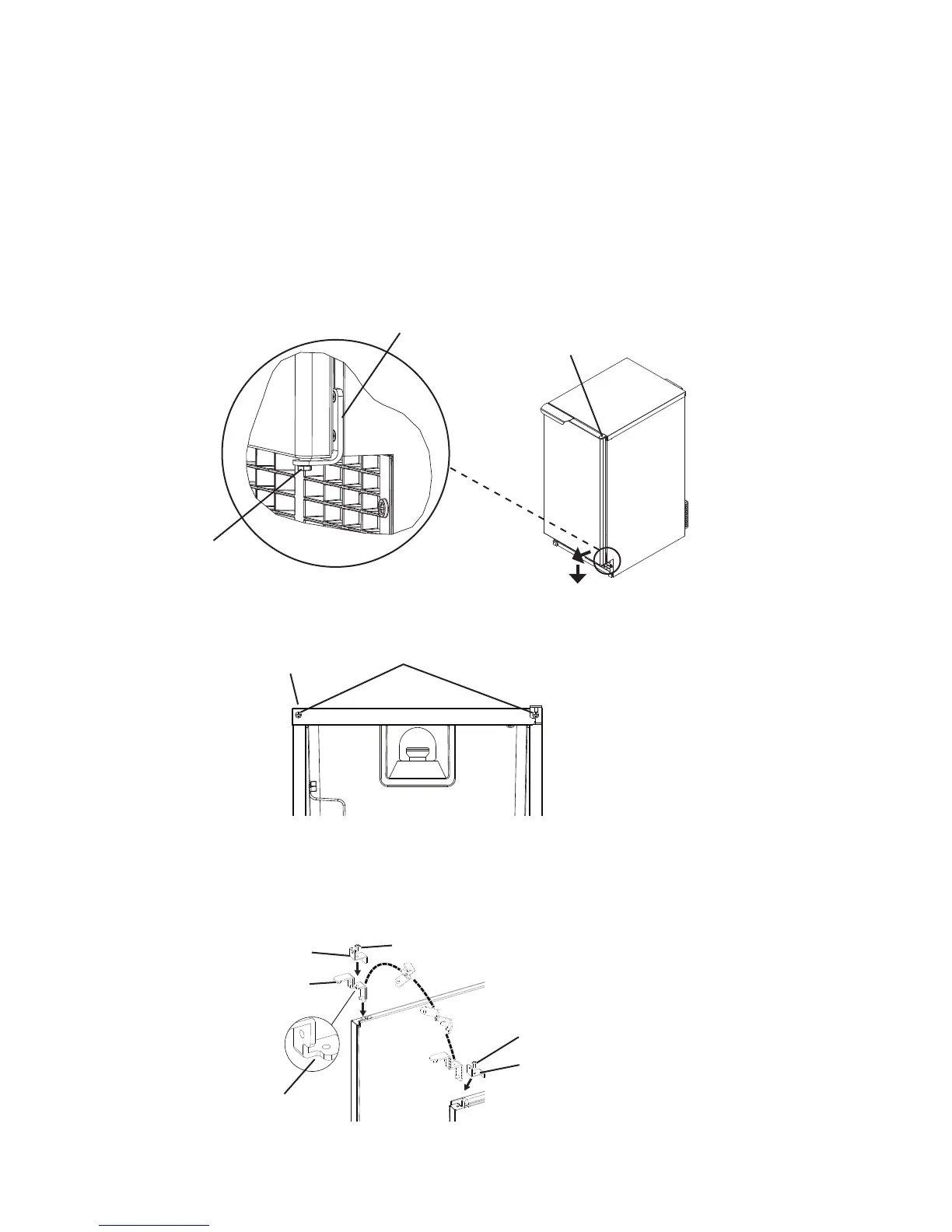

Fig. 1
Hinge (A)
Hinge Stop Pin
Hinge (B)
Fig. 2
Screws
Top Panel
Fig. 3
Hinge (A)
Bracket
Screw
Top Brace
Gasket Notch
Screw
To Next Page
