F. Water Supply and Drain Connections
WARNING
Water supply and drain connections must be installed in accordance with applicable
national, state, and local regulations.
NOTICE
• Normal operating water temperature must be within 45°F to 90°F (7°C to
32°C). Operation of the icemaker, for extended periods, outside of this normal
temperature range may affect icemaker performance.
• To prevent damage to equipment, do not operate the icemaker when the water
supply is off, or if the pressure is below 7 PSIG. Do not run the icemaker until the
proper water pressure is reached.
• Connect to potable water supply only. Do not connect to a hot-water supply.
• In areas where water damage is a concern, install in a contained area with a oor
drain.
• Water line installation to the icemaker is not warranted by Hoshizaki.
• Water-hammer issues must be resolved by a qualied plumber before installing
the icemaker. Water hammer can cause icemaker damage that may lead to water
leakage or ooding.
• If using the optional drain pump (HS-0248), test its operation every time the
icemaker is cleaned and sanitized. See "IV.E. Optional Drain Pump" for details.
If the optional drain pump is not operating properly, water could back up and
overow, leading to costly water damage.
• A plumbing permit and services of a licensed plumber may be required in some areas.
• External lters, strainers, or softeners may be required depending on water quality.
Contact your local Hoshizaki Certied Service Representative for recommendations.
• Water supply inlet is 1/2" female pipe thread (FPT).

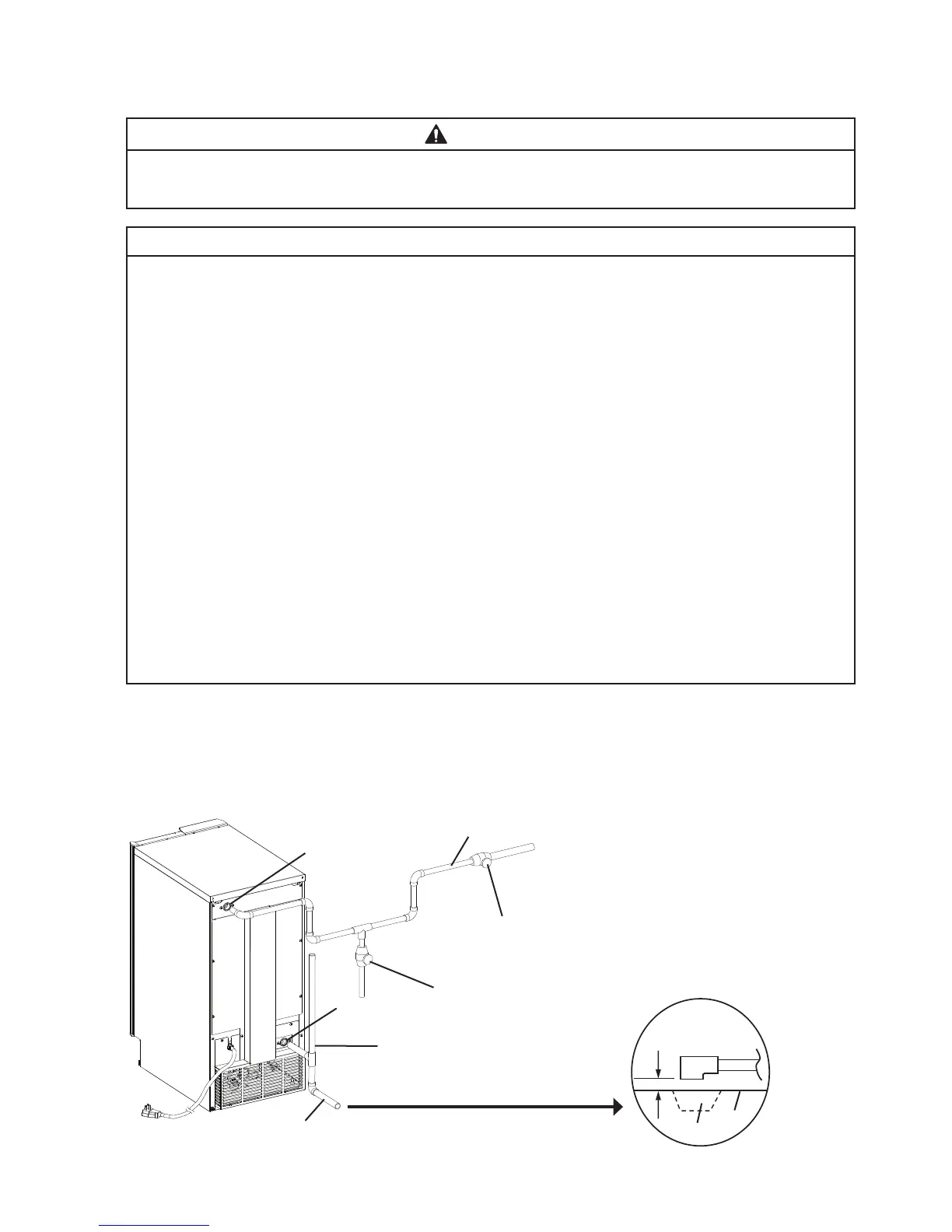

Fig. 30
Piping to approved drain.
Leave a 2-inch (5-cm) vertical
air gap between the end of the
pipe and the drain.
2-inch (5-cm)
air gap
Floor
Drain
Water Supply Line
Shut-Off Valve
Water Supply Line
Drain Valve
Water Supply Inlet
1/2" FPT
Drain Outlet
1/2" FPT
Vented Tee Connection
Extend the vent at least 12"
(30 cm) above the drain outlet.
Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
Minimum 1/2" Nominal ID Hard Pipe
or Equivalent
Be sure there is sufficient extra
water supply line and drain line for
the unit to be pulled out for service.
