2. C-100BAF-DS, C-100BAF-ADDS
a) Overlay Panel Fabrication and Attachment
IMPORTANT
The overlay panel must be crafted by a professional cabinet maker to ensure
quality results.
(1) Parts
Ensure that all parts required for the overlay panel assembly are contained in the
accessories bag.

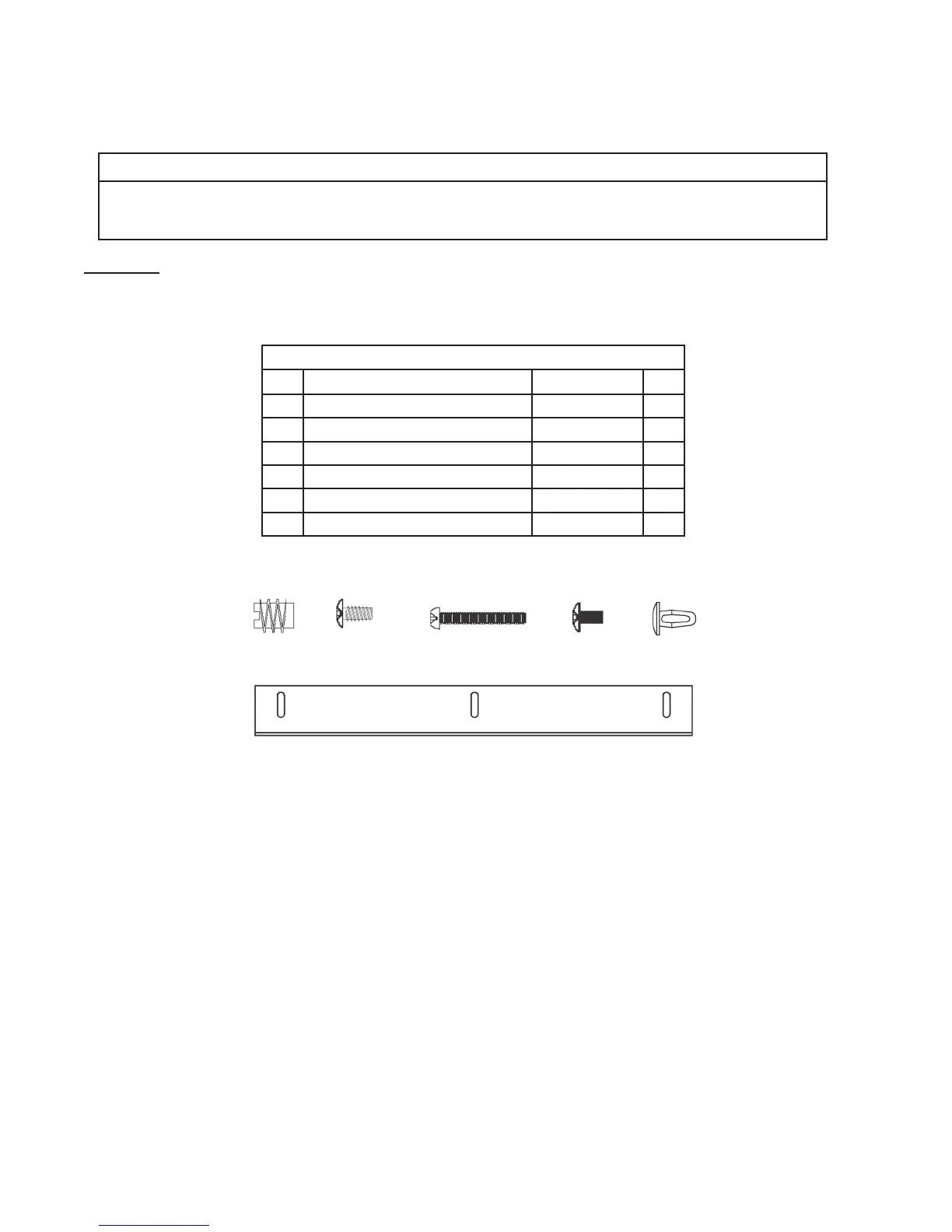

Overlay Panel Parts
No. Description Part Number Qty.
1 Threaded Wood Insert 4A4004-01 6
2 T2 Screw 4×8 SS 7P32-0408 3
3 Pan Head Screw M4×25 SS 7C12-0425 4
4 Truss Head Screw M4×8 SS 7C32-0408 2
5 Canoe Clip 4A0629-02 2
6 Sheet Metal Bracket 4A3998-01 1
To Next Page
