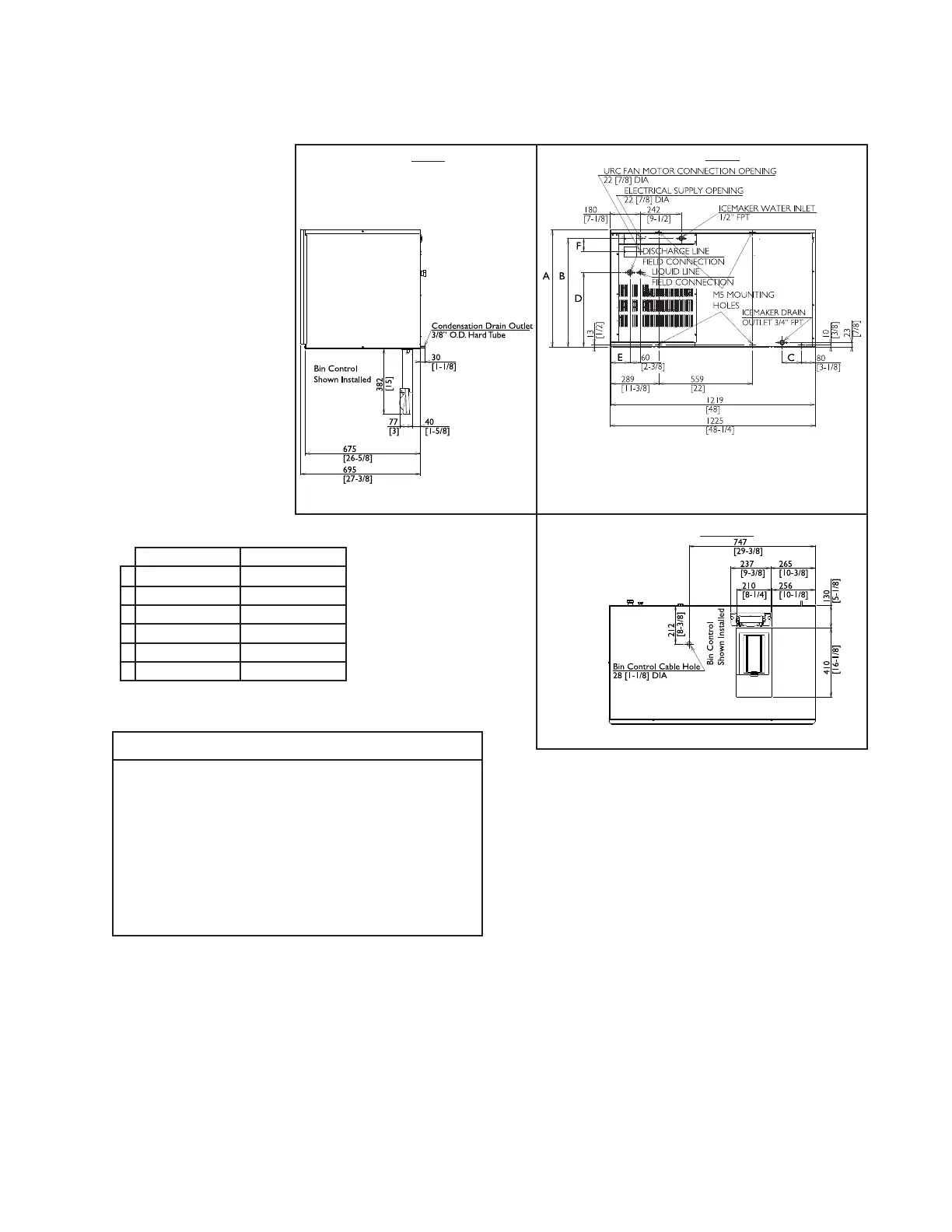

3. Remote Models KM-1301SRJ/3 and KM-1601SRJ/3
NOTICE
• Allow 6" (15 cm) clearance at rear,
sides, and top for proper air circulation
and ease of maintenance and/or
service should they be required.
• The ice storage bin opening must
match the bottom opening as in the
illustration.
Rear
Side
Bottom
Model Shown: KM-1301SRJ
Model Shown: KM-1301SRJ
Model Shown: KM-1301SRJ
Units: mm [in.]
KM-1301SRJ/3 KM-1601SRJ/3
A 695 [27-3/8] 695 [27-3/8]
B 643 [25-3/8] 643 [25-3/8]
C 115 [4-1/2] 115 [4-1/2]
D 442 [17-3/8] 442 [17-3/8]
E 115 [4-1/2] 115 [4-1/2]
F 76 [3] 100 [3-7/8]
