• Remove the protective plastic lm from the panels. If the appliance is exposed to the
sun or to heat, remove the lm after the appliance cools.
• Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the
fan blade (if applicable) turns freely.
• Check that the compressor is snug on all mounting pads.
• The icemaker can be installed on a dispenser unit or ice storage bin. The ice storage
bins listed below are recommended.
Model Number Bin Width Recommended Hoshizaki Ice Storage Bin
KM-1301S_J/3
KM-1601S_J/3
KM-1900S_J/3
KM-2200S_J3
KM-2600S_J3
48" or Wider B-800 Series
For further options, contact your local Hoshizaki distributor.
• NOTICE! Remote models must be connected to an appropriate remote condenser
unit. The remote condenser units listed below are recommended. Connection to a
different remote condenser unit will void the warranty unless Hoshizaki approves
a different remote condenser unit for your specic application. For further
details, contact your local Hoshizaki distributor.
Model Number Recommended Hoshizaki Remote Condenser Unit
KM-1301SRJ/3 URC-14F
KM-1601SRJ/3
KM-1900SRJ/3
KM-2200SRJ3
URC-22F
KM-2600SRJ3 URC-26J

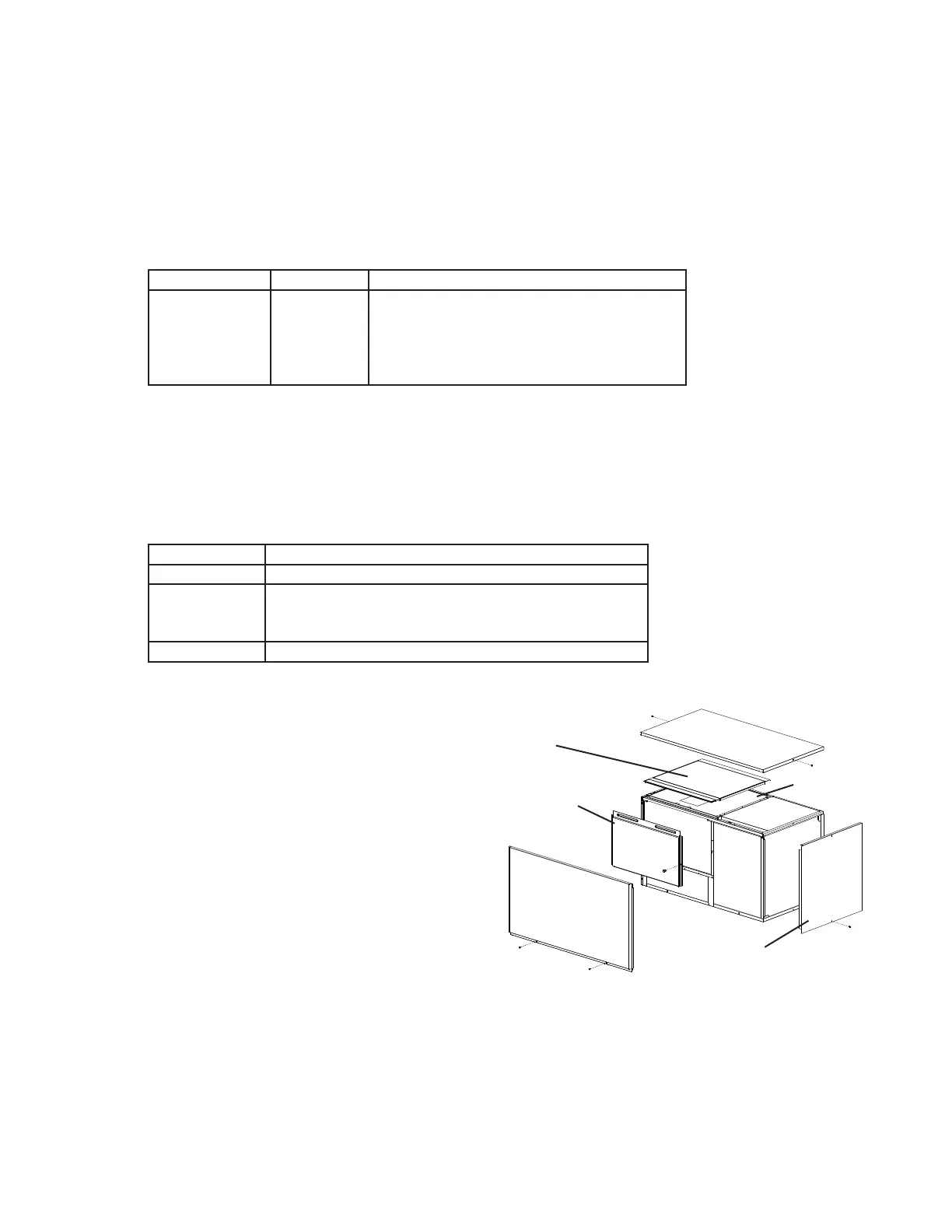

C. How to Remove Panels
See Fig. 1
• Front Panel: Remove the screws. Lift up
and pull towards you.
• Top Panel: Remove the screws, then lift off.
• Right Side Panel: Remove the screw. Slide
forward slightly and lift off.
• Insulation Panel: Remove the thumbscrew.
Lift up slightly and pull towards you.
• Top Insulation: Lift off.
• Spacer: Lift off.
Fig. 1
Top Panel
Insulation
Panel
Right Side Panel
Top
Insulation
Front Panel
Spacer
