DESIGN INSPIRAT I O N

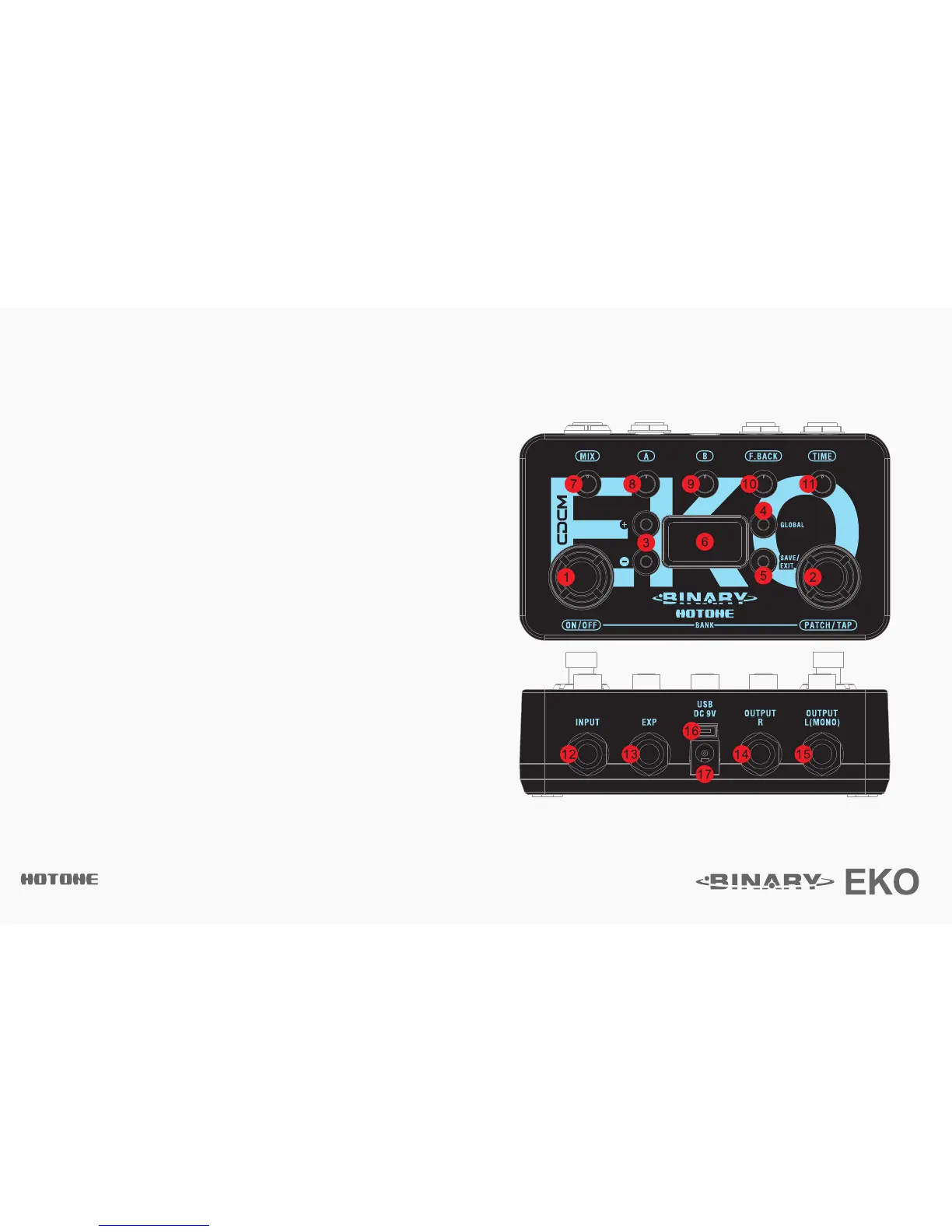

1. ON/OFF: For switching this unit on/off. The LEDs under the upper 5 knobs indicate
effect on/off status.
2. PATCH/TAP: Tap for selecting forward patches in current bank, hold for
engaging/disengaging tap tempo mode.
3. +/- buttons: For selecting effects and adjusting parameters.
4. GLOBAL: For setting expression pedal, input mode, and other parameters.
5. SAVE/EXIT button: For saving or canceling parameter changes.
6. OLED screen: Shows bank/patch numbers, setting values and other operation info.
7. MIX: Controls effect wet/dry signal ratio (varies with effects).
8-9. A/B: Control detailed effect character (varies with effects).
10. F.BACK: Controls the delay feedback amount (varies with effects).
11. TIME: Controls the delay time. In Tap Tempo mode, use TIME knob to set a Tap Tempo
subdivision*, and the TIME LED will keep flashing.
12. INPUT: 1/4” (6.35mm) stereo jack, for plugging in instruments or other effects. A Y
cable is needed when connecting to stereo pedal outputs.
13. EXP: 1/4” (6.35mm) TRS jack, for connecting expression pedals. The expression pedal
should have a TRS cable attached to it. We recommend using a Hotone Soul Press
(switched to EXP mode) for expression control.
14-15. OUTPUT (L & R): 1/4” (6.35mm) mono jacks, for connecting to amps or other effects.
16. USB jack: Mini USB jack, for effects editing, firmware updates, and factory reset.
17. DC 9V: Plug in your power supply here (DC 9V, center negative).
Panel Introduction
*Requires firmware v1.1.1 or later
