Hotone JOGG - Panel Introduction; Input and Output Ports; Ground Lift Switch; Control Knobs

1. IN: 1/4” Mono input connection for guitar or other instrument.
2. OUT L/R: Unbalanced 1/4” TS stereo output connections to
amplifiers or other equipment. For mono output, use only the left
unbalanced output.
3. XLR OUT: Balanced mono XLR output connections to mixer or
audio interface. The output signal is the same as OUT L.
4. LIFT/GND Switch: Turn the switch LIFT to cut off the ground
connection of the XLR connectors (Ground Lift) to avoid noise
caused by the ground loop. Turned GND, the XLR line will be ground
normally.
5. GAIN Knob: Controls the input gain amount up to 12dB.
6. OUTPUT Knob: Controls the overall output volume.
7. Footswitch: Tap to bypass the signal or for direct monitoring. The
signal won’t be affected by knobs onboard when bypassed. Jogg
features buffer bypass switching.

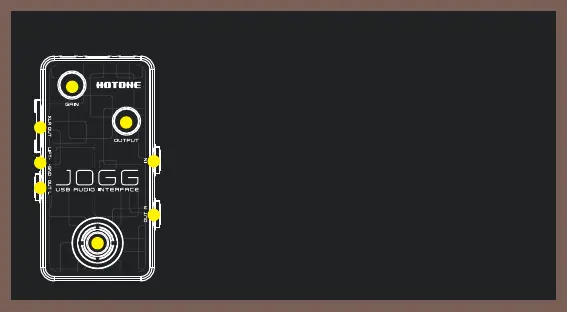

PANEL INTRODUCTION
1
2
2
4
3
5
6
7
