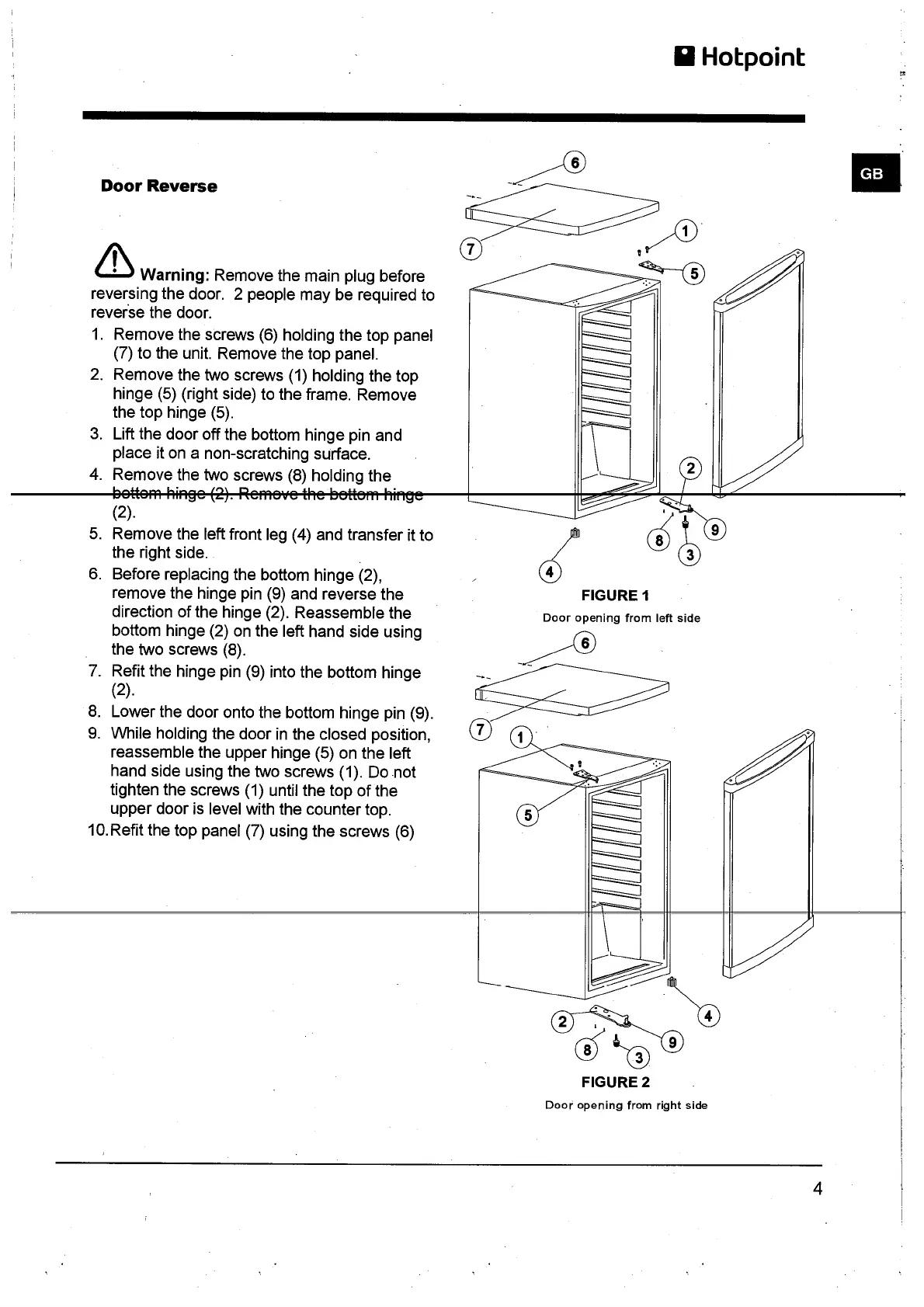

Door Reverse
& Warning: Remove the main plug before
reversing the door. 2 people
may be required to
reverse the door.
1. Remove the screws (6) holding the top panel
(7)
to the unit. Remove the top panel.
2. Remove the two screws (1) holding the top
hinge (5) (right side) to the frame. Remove
the top hinge (5).
3. Lift the door off the bottom hinge pin and
place it on a non-scratching surface.
4. Remove the two screws (8) holding
the
5. Remove the left front leg (4) and transfer it to
the right side.
6. Before replacing the bottom hinge (2),
remove the hinge pin (9) and reverse
the
direction of the hinge (2). Reassemble the
bottom hinge (2) on the left hand side using
the two screws (8).
7. Refit the hinge pin (9) into the bottom hinge
(2).
8. Lower the door onto the bottom hinge pin (9).
9. While holding the door in the closed position,
reassemble the upper hinge (5) on
the left
hand side using the two screws (1). Do.not
tighten the screws (1) until the
top of the
upper door is level with the counter top.
10. Refit the top panel (7) using the screws (6)
II Hotpoint
/
0
FIGURE 1
Door opening from left side
FIGURE2
Door opening from right side
9
••
4
