Fitting an Appliance
under a Work Top
To minimise running costs Hotpoint recommend
fitting a vent to the rear of your work top.
Available from Hotpoint Genuine Parts &
Accessories Mail Order Hotline UK: 08709 077 077 or
Republic of Ireland: (01) 842 6836.
WARNING: If there is less than 30mm
clearance, a Vent must be fitted to provide
adequate ventilation above your appliance.
If appliance is fitted
with an Air Grille
Simply push appliance back until
the air grille is nearly touching the
wall (Fig 3).
Appliance without
an Air Grille
1. Fit the two supplied wall
spacers to the top of the
condenser at the back of
the appliance (Fig 4).
2. Push appliance back, until
spacers are against the wall.
Moving your Appliance
For mobility a Wheel Kit is available from Hotpoint
Genuine Parts & Accessories Mail Order Hotline
UK:
08709 077 077 or
Republic of Ireland: (01) 842 6836
Not available for combination fridge freezer
models.
Adjusting
the Feet
(Front Feet only)
The right foot screw
is pre-set to the
correct position.
Stabilise by adjusting the
left foot screw until all four
feet are in firm contact with the floor (Fig 5).
Clean before Using
We recommend before using your appliance that
you clean the interior and exterior (see page 10).

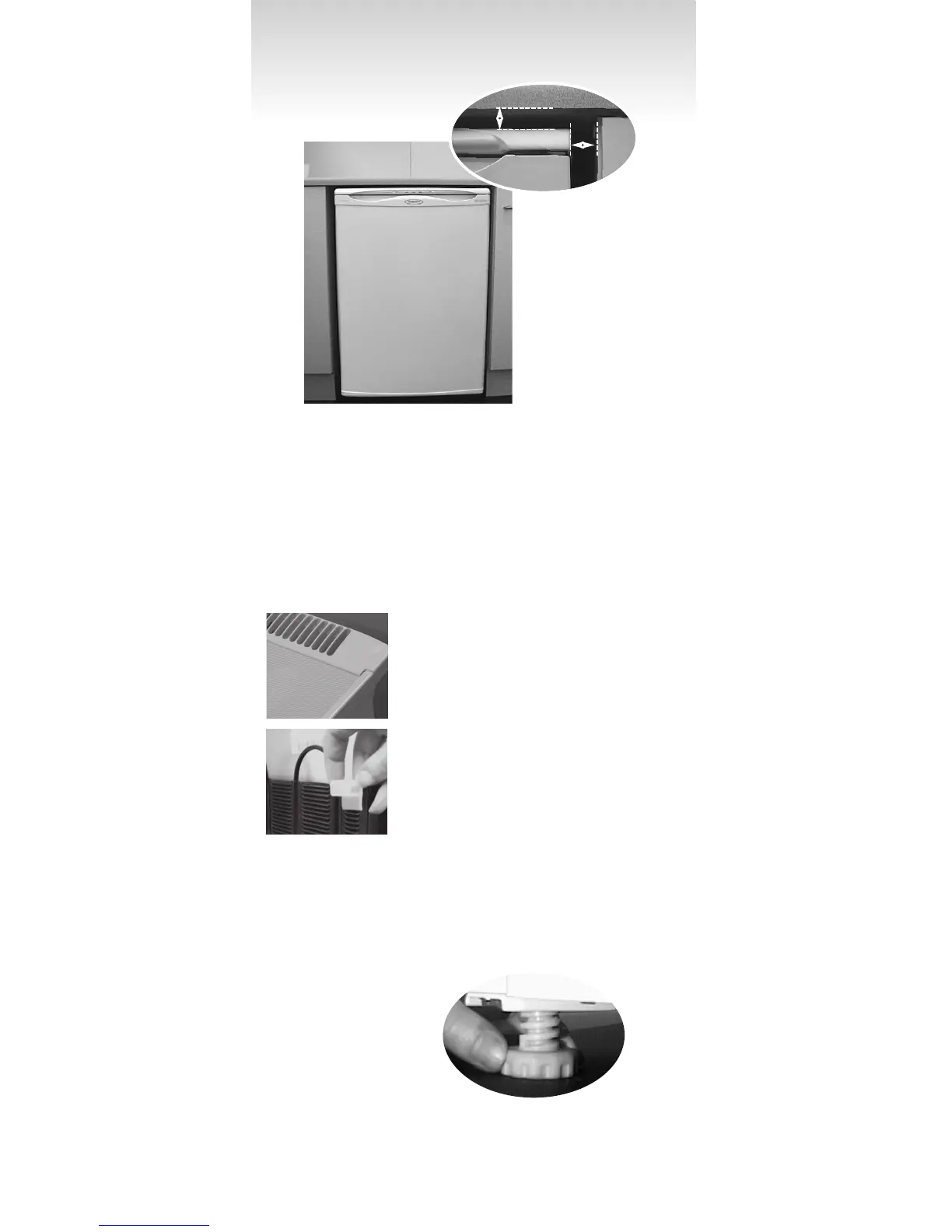

25mm
30mm
LEFT & ABOVE:
Allow a
minimum
30mm between
the top of the
appliance and
the underside of
the work top,
25mm either
side and 25mm
from the base
of appliance to
the floor.
