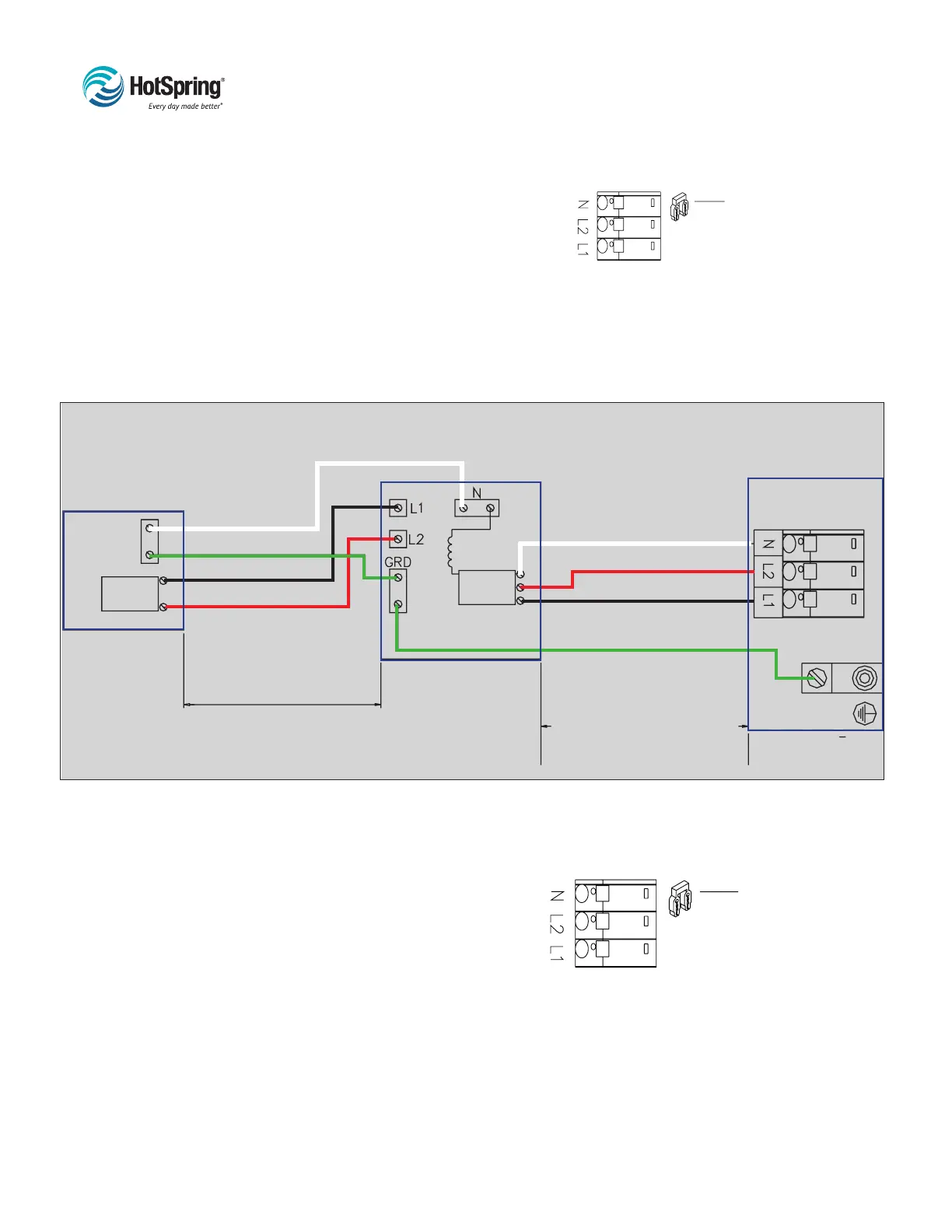

WIRING ILLUSTRATION
OPTIONAL 30 or 50A, 230V SUBPANEL CONVERSION CONNECTION
230 VAC, 24/40A, 60HZ, CONVERTED MODELS
Main Service
Electrical Panel
230VAC, 30 or 50 Amp
2-Pole Circuit CIircuit
Breaker (Non GFCI)
Less Than 100 FT (30 m).
#8 AWG White, Neutral
#10 AWG Green, Ground
#8 AWG Black, L1
#8 AWG Red, L2
Sub-Panel
with GFCI
Breaker
More than 5 feet (1.5 m)
the Sub-Panel must be within
sight of the spa
Do Not Exceed 50 Feet (15 m)
Spa Control Box
N, Neutral, #8 AWG White
L1, Hot, #8 AWG Black
Ground, #10 AWG Green
L2, Hot, #8 AWG Red
ELECTRICAL INFORMATION
230 VOLT CONVERSION 30 OR 50
AMP (PACE, STRIDE, SX & TX MODELS ONLY)
Conversion instructions
NOTE: An Authorized HOT SPRING Spa Technician must reconfigure
spa using the soft jumpers.
A licensed electrician must install the sub-panel (available from your
HOT SPRING Spa Dealer) to supply
power to the spa. The sub-panel must be placed in sight of the spa, at a
minimum distance of 5 feet (1.5 m) away.
2 Position Power Jumper
must be removed on the
Terminal Block to operate
230 VAC Spa Models
Power Jumper Position
See Wiring
Illustration
below
230 VAC Wiring
(50A Converted)
30 or 50A
30 or 50A
115 VOLT CONVERSION 30 AMP
(PACE, STRIDE, SX & TX MODELS ONLY)
Conversion instructions
NOTE: An Authorized HOT SPRING Spa Technician must reconfigure
spa using the soft jumpers.
A licensed electrician must install the sub-panel (available from your
HOT SPRING Spa Dealer) to supply
power to the spa. The sub-panel must be placed in sight of the spa, at
a minimum distance of 5 feet (1.5 m) away.
Terminal Block
Power Jumper
Power Jumper Position
See Wiring
Illustration on
next page
115 VAC Wiring
(30A Converted)
2 Position Power Jumper
must remain on the Terminal
Block to operate 115 VAC
Spa Models
*ALL CANADIAN SPA MODELS USE #8 AWG GREEN, GROUND.
THESE SPAS ARE INTENDED FOR USE WITH GFCI SUBPANEL PROVIDED.
