1700 SERIES PRESSURE WASHER OPERATOR’S MANUAL
Hotsy 1700 • 97-6419 • Rev. 7/06
ITEM PART NO. DESCRIPTION QTY
1
2 928641 Connecting Rod Assy 3
3 928641 Connecting Rod Assy 3
4 780564 Spring Washer 6
5 735312 Allen Screw 6
6 855893 Gasket, 3/8" 3
7 915630 Drain, Plug, 3/8" 1
8
9 858431 Sight Glass, 3/8" 1
10 735313 Crankcase Cover, Allen Screw 6
11 826681 Crankcase Cover 1
12 855891 Crankcase Cover Gasket 1
13 926650 Crankshaft Seal 2
14 808400 Roller Bearing 2
15 877249 Crankshaft Key, 8 x 25 mm 1
16 827393 Double-end Crankshft(HC300) 1
827397 Single-end Crankshft(HC301&2) 1
827391 Double-end Crankshft(HC500) 1
827392 Single-end Crankshft(HC501&2) 1
17 928637 Plunger Rod 3
18 918391 Shaft Protector 1
19 867751 Bearing Housing 1
867752 Closed-end Bearing Housing 1
ITEM PART NO. DESCRIPTION QTY
20 926648 Bearing Housing "O" Ring 2
21 827320 Crankcase 1
22
23
24
25 835281 Oil Dip Stick 1
26 860361 Plunger Guide 3
27 926653 Plunger Seal 3
28 926658 Pressure Ring "O" Ring 3
29 926689 Pressure Ring (20 mm) 3
30 941763 "V" Sleeve (20 mm) 6
31 926677 Support Ring (20 mm) 6
32 926676 Intermediate Ring (20 mm) 6
33 926681 Teflon Ring 3
34
35 884471 Manifold Housing 1
36
37
38 612693 Manifold Stud Bolt 8
39 780560 Washer 8
40 915631 Manifold Plug 6
41 915631 Manifold Plug "O" Ring 6
42

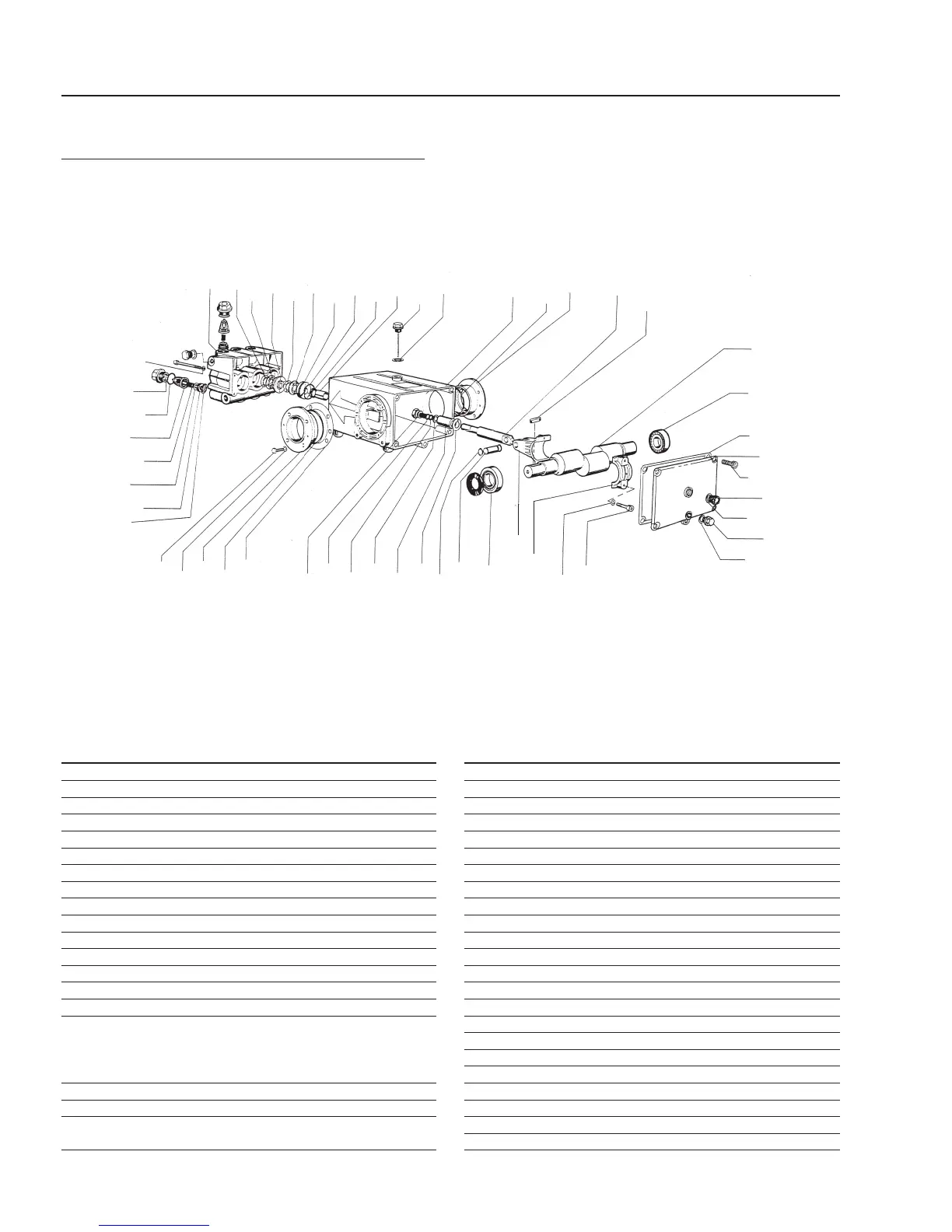

EXPLODED VIEW AND PARTS LIST
HC300 & HC500
35
31
30
32
31
30
29
28
27
26
25
6
21
20
19 17
15
16
15
12
11
9
6
7
6
5
4
14
62
61
59
58
57
60
56
55
52
20
19
49
48
47
46
45
44
43
41
40
38
39
3
2
10
