1700 SERIES PRESSURE WASHER OPERATOR’S MANUAL
Hotsy 1700 • 97-6419 • Rev. 7/06

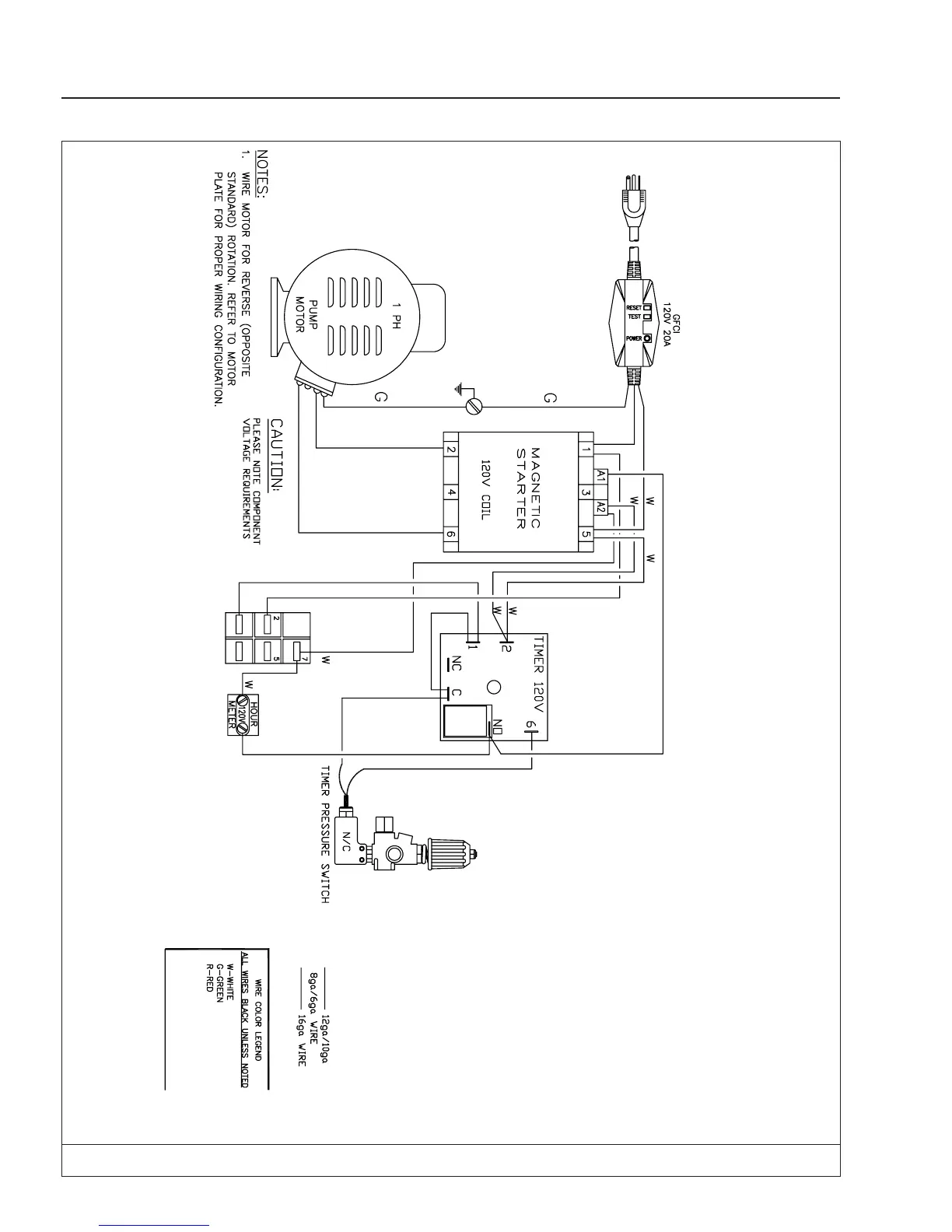

Wiring Diagram - Model 1710 with Auto Start/Stop
