Operations

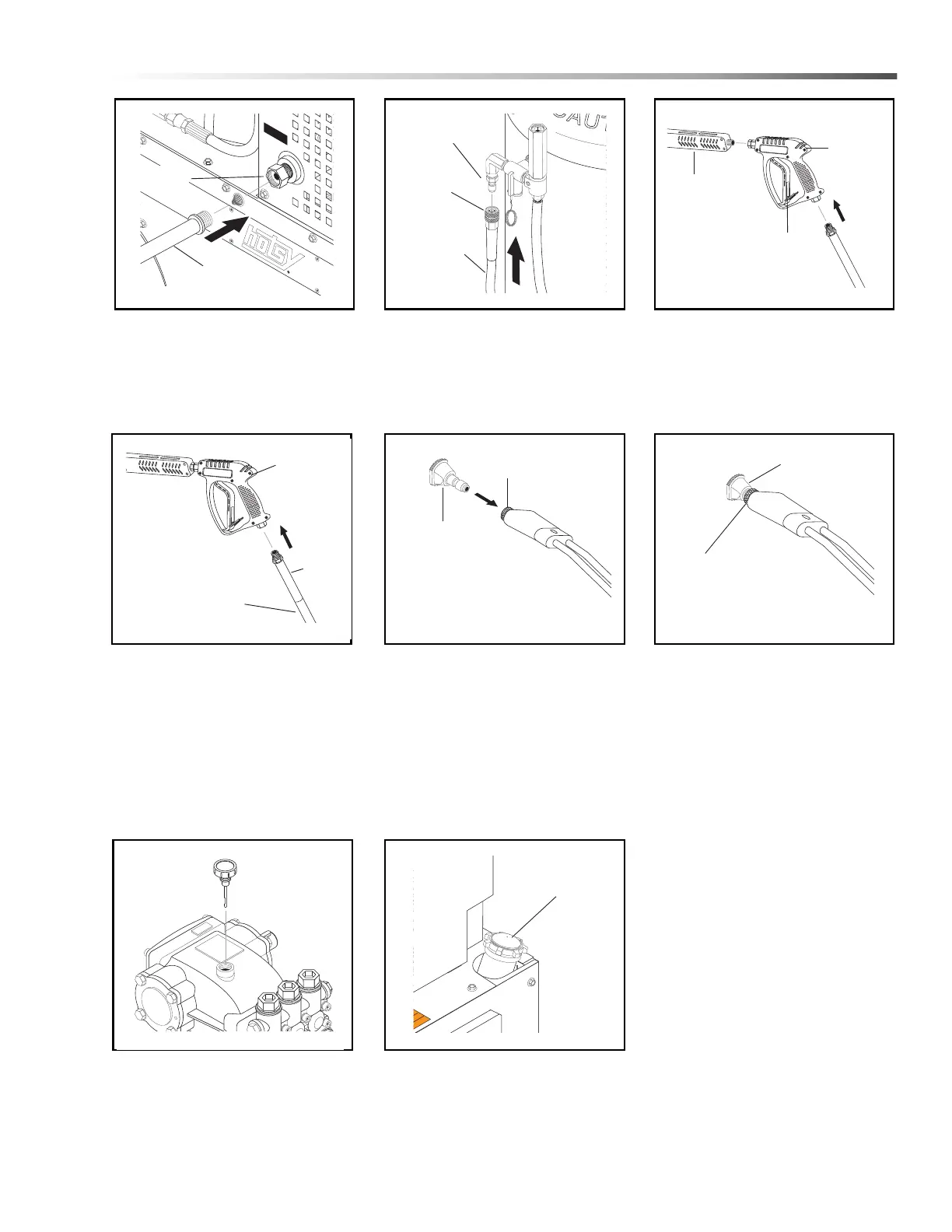

STEP 1: Attach a 5/8" water supply
hose to inlet connector. Minimum
flow should be 5 GPM depending
on model of machine. Do not
exceed 65 psi incoming water
pressure.
STEP 4: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads. The end
with the longest shroud or bend
restrictor is attached to spray gun.
STEP 7: Check oil level by using
supplied dip-stick. Use SAE 10W-
40 non-detergent only.
STEP 2: Attach high pressure hose
to discharge nipple using quick
coupler. Lock coupler securely by
pulling back coupler collar,
inserting onto discharge nipple and
pushing collar forward until secure.
STEP 5:
Before installing nozzle,
turn on water supply and run
machine allowing water to flush
through the system until clear. Pull
the spring-loaded collar of the wand
coupler collar back to insert your
choice of pressure nozzle.
CAUTION: Never replace nozzles
without engaging the safety latch
on the spray gun trigger.
STEP 8: Fill fuel oil tank. Do not
confuse gasoline and fuel oil tanks.
Keep proper fuel in proper tank.
STEP 3: Attach variable pressure
control wand to spray gun using
teflon tape on threads to prevent
leakage.
STEP 6: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
Hotsy 800 OIL FIRED OPERATOR’S 8.921-206.0 - B
COLD WATER INLE
T
INGRES
O DEL
AG
UA FR
íA
ADMISSION D
’EAU F
R
OI
D
9.80
0-02
0.
0
Garden
Hose
Water
Inlet
High
Pressure
Hose
Discharge
Nipple
Collar
Trigger
Gun
Wand
Safety Latch
Coupler
Collar
Pressure
Nozzle
Dipstick
Y
A
S
FU
NCIONAND
O
S
E
X
P
O
S
É
E
S
S
B
L
E
S
SU
R
E
S
AP
P
AREIL EST EN OP
É
R
A
TION
Fuel Oil
Tank
Pressure
Nozzle
Coupler
Collar
High
Pressure
Hose
Spray Gun
Shroud
