Hoval BIC 960 - 4 Sensor Characteristic Curves

12 4 205 503 / 14
SENSOR CHARACTERISTIC CURVES

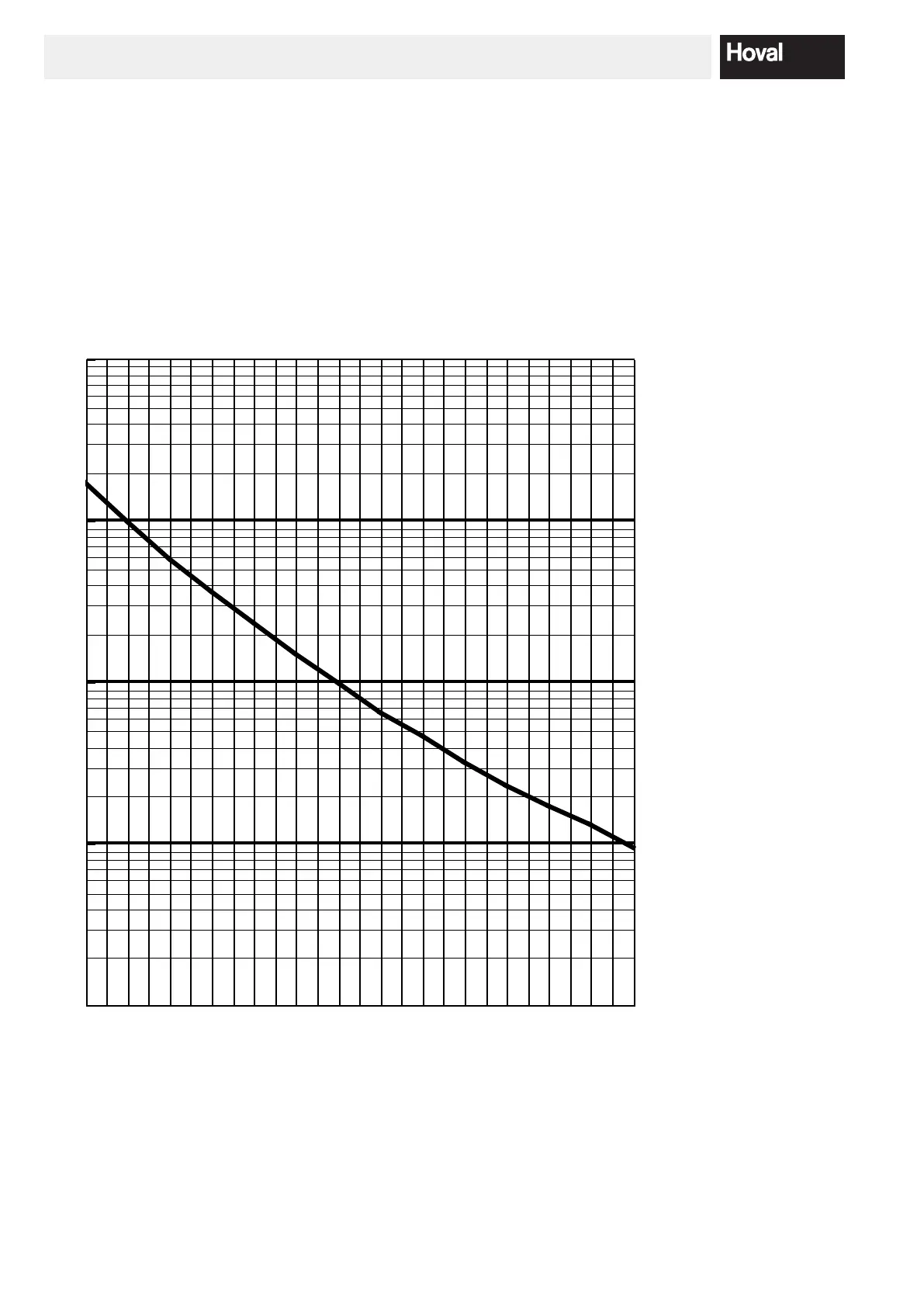

4. Sensor characteristic curves
The characteristic curve of the 12K NTC-Sensor Duplex screw-in sensor, which is used as the boiler sen sor, is iden-
tical to the characteristic curve of the ue gas sensor, called the 12K NTC- Sensor screw-in sen sor.
The characteristic curve of the pressure sensor module MCTH-1 (0....10 bar) is linear. The signal voltage of the sen-
sor at 0 bar is always 0.5V and at 10 bar is always 4.5V.
-30 -20 -10 0 10 20 30 40 50 60 70 80 90
100
10
2
10
3
10
4
10
5
10
6
Resistance
in Ω
Temperature in °C
Table
-30°C 170 kΩ
-20°C 98 kΩ
-10°C 58 kΩ
0°C 36 kΩ
10°C 23 kΩ
20°C 15 kΩ
25°C 12 kΩ
30°C 9.8 kΩ
40°C 6.5 kΩ
50°C 4.6 kΩ
60°C 3.2 kΩ
70°C 2.3 kΩ
80°C 1.7 kΩ
90°C 1.3 kΩ
100°C 0.95 kΩ
