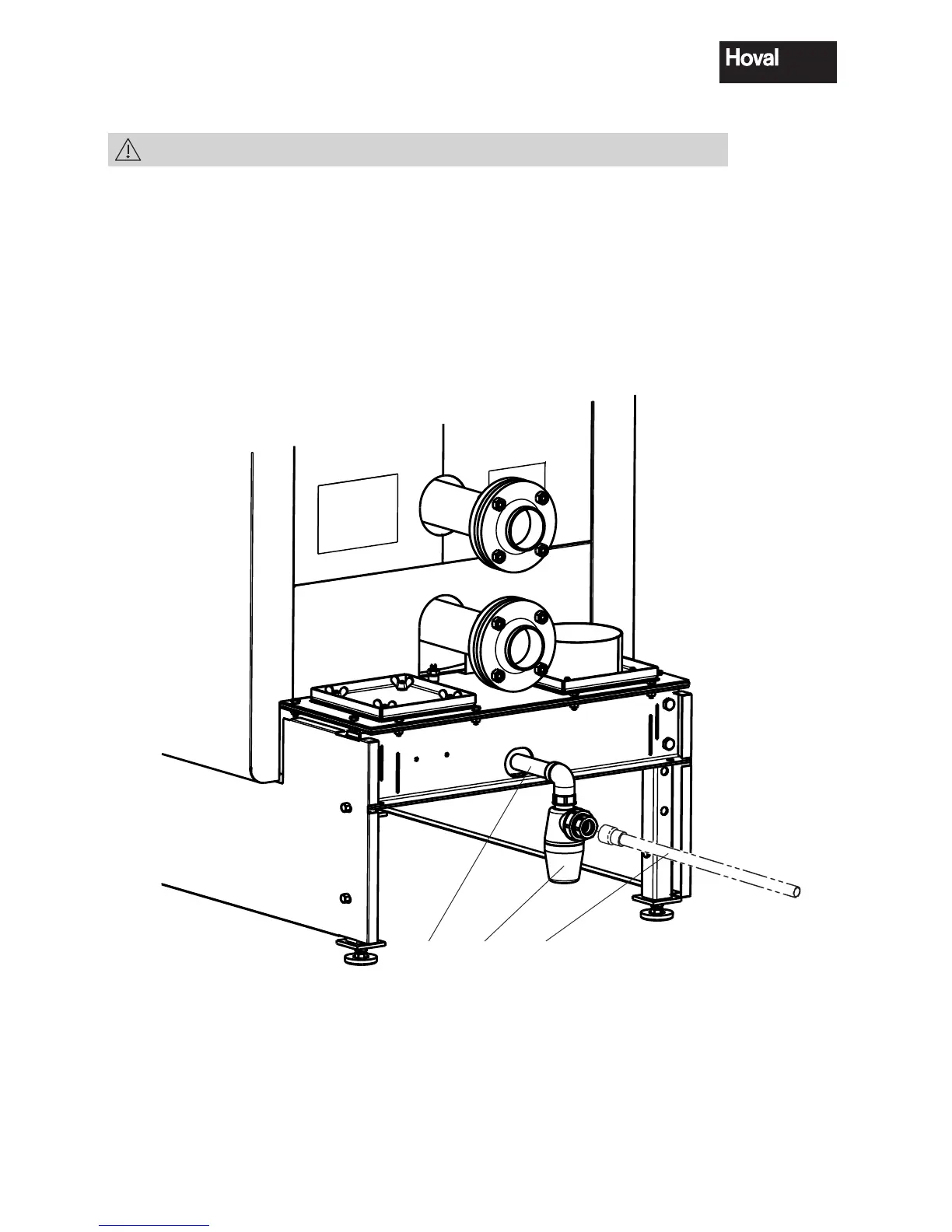

Fig. 05
13a 13 14
3.4 Mounting of base casing
1. Mount the siphon (13) delivered loose, incl. double nipple (13a, fig. 5).
2. Position the condensate box (option) under the boiler and make the electrical connection. Create con-
densate outlet, resp. connection line according to separate instructions.
For UltraGas
®
(575,650,720,850,1000):
Mount condensate outlet pipe (14, fig. 5) (delivered with boiler).
3. Screw mount the right and left side walls (15, 15a, fig. 6) with the already mounted cap nuts.
4. Attach the front (16) to the side walls (15, 15a).
