3. Assembly
3.1 Placement
Make sure that the cable does not touch any hot
locations!

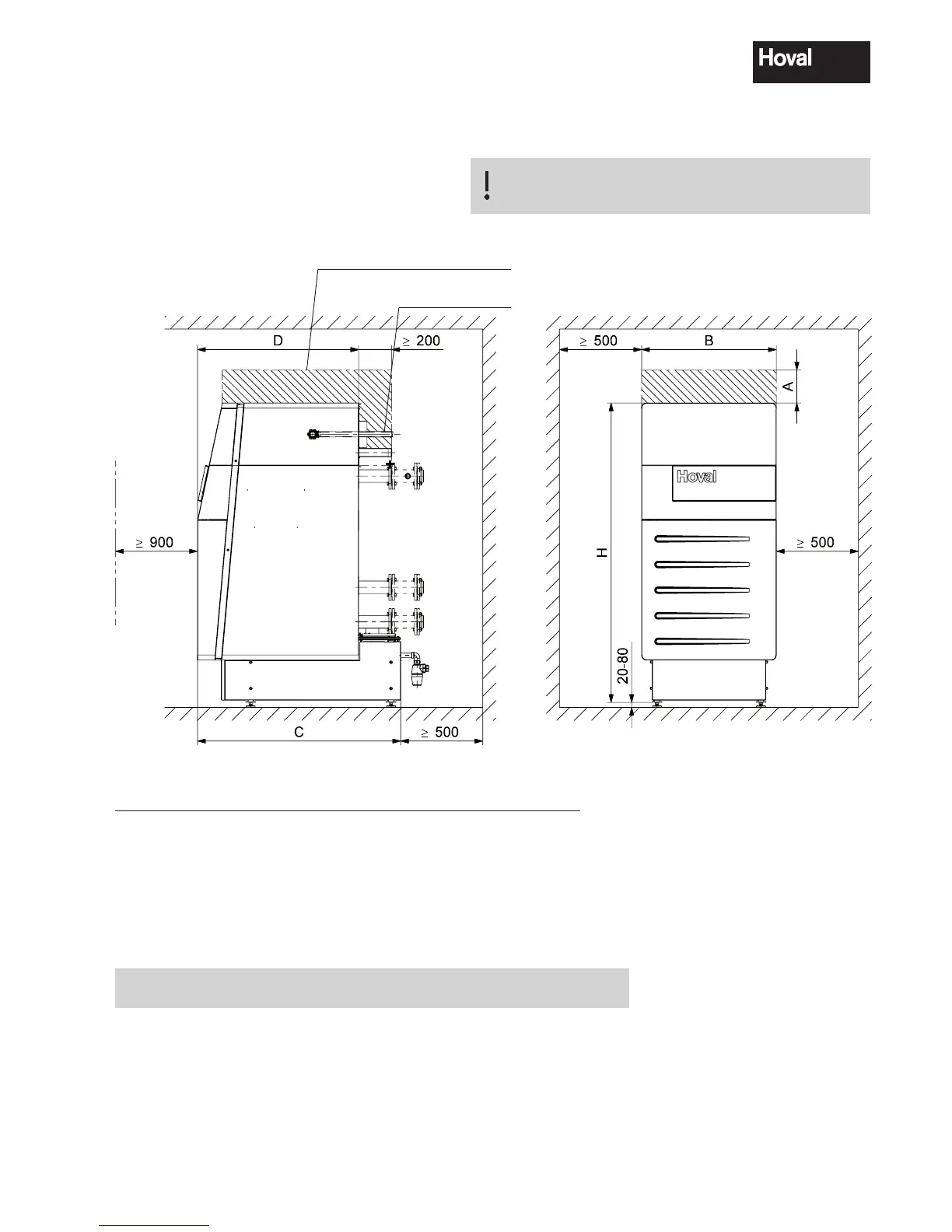

Fig. 01
Space requirements UltraGas
®
(125-1000)
Dimensions (mm)
The boiler may be placed against the wall on one side.
For the mounting of the casing yet a wall clearance of 100 mm min. must be provided.
For swing out of burner this
clearence must be ensured
Install gas line
straight to the back
UltraGas
®
Type A A minimal B C D H H minimum
(125, 150) 180
1
80
2
820 1237 981 1823 1711
3
(200 - 300) 360
1
160
2
930 1584 1247 1923 1811
3
(350 - 500) 200
1
100
2
1110 1679 1268 2070 1958
3
(575 - 720) 200
1
100
2
1290 1843 1438 2086 1984
3
(850, 1000) 420
1
230
2
1550 2154 1703 2139 2037
3
1
If room height is too small: Reduction of measures possible. See A minimum.
2
Attention! With A minimum the burner is no longer swing-out completely! Cleaning makes more difficult!
3
Boiler foot can be shortened, no base casing possible! Details see next page.
