Procedure:
1. Remove the two upper threaded elements (1) on the boiler base (1a).
2. Take off the front wooden beam.
3. Raise the front of the boiler with a jack (3).
4. Move aside the side beam (4) at the front (see fig. 2) Introduce the front feet and screw in place.
5. Raise the back of the boiler with a jack (3).
6. Move aside the side beam (4) at the back (see fig. 2). Introduce rear feet and screw in place.
7. Remove footboard locking device (5). Remove the locking pin (6) and fold open the footboard carefully.
In the case of models 850 and 1000, fold open the 2nd and 3rd footboard and remove the ladder.
Adjustment of the adjustable feet is carried out takes place after installing the neutralisation unit
4 1a
1
3
Typen (850, 1000)
with six feet
6
5
Typen (575-1000)
Hanging up possibilities for crane hooks
1b

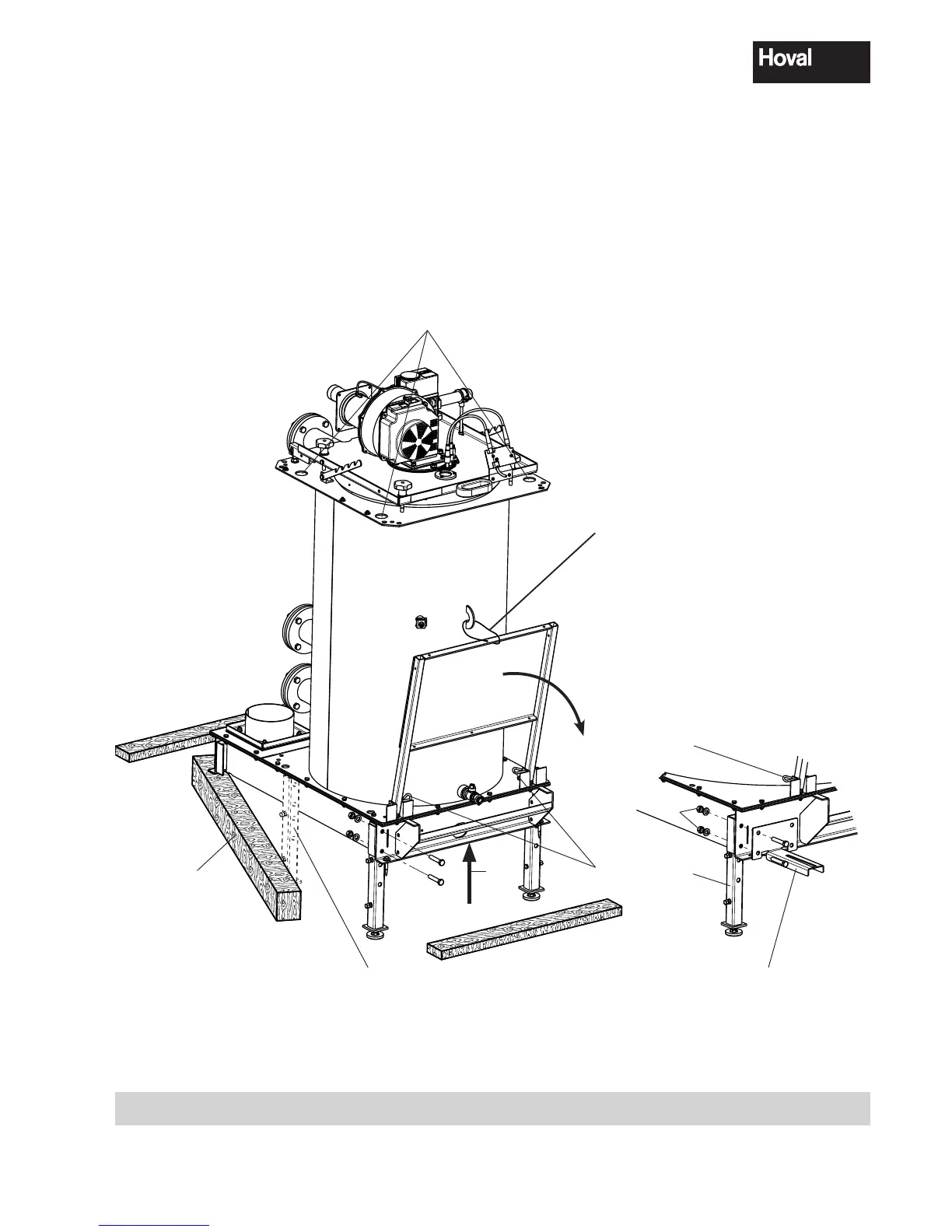

Fig. 02
