5. To obtain a lower cut add height adjustment spacer (s) between the impeller hub and the cutter
disc. Remount the cutter disc. Install the f lat washer and the impeller retaining bolt. Tighten the
bolt securely. (Fig. 17)
a. Add height adjustment spacer (s).
b. Remount the cutter disc.
c. Install the f lat washer and the impeller retaining bolt.
d. Tighten the bolt securely.
e. Use a 3 ¼ ” long impeller retaining bolt when one or two ½” spacer (s) or 2 or more ¼”
spacers are used.

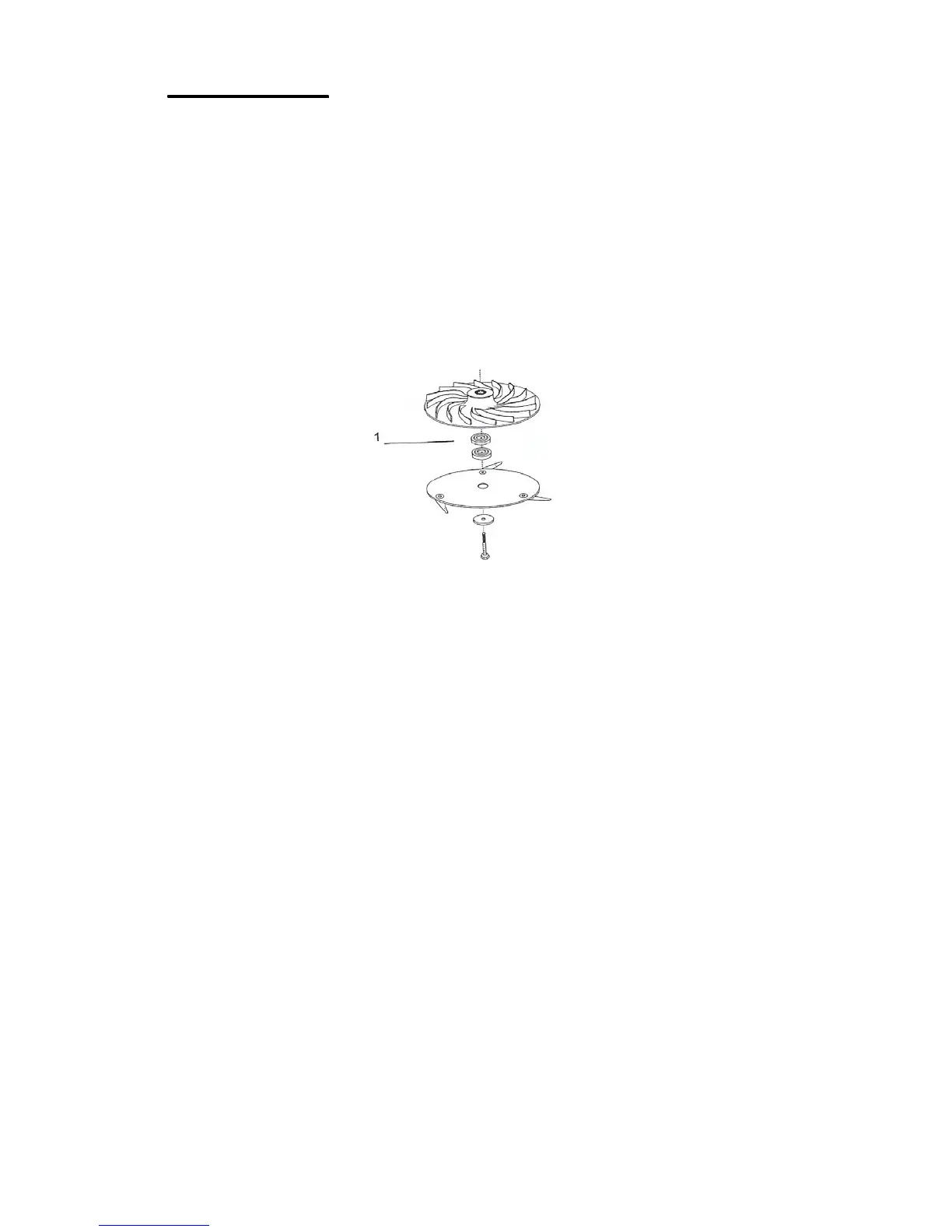

Figure 17
1. Height Adjustment spacer
