Assembly
Installing the Handle
1.

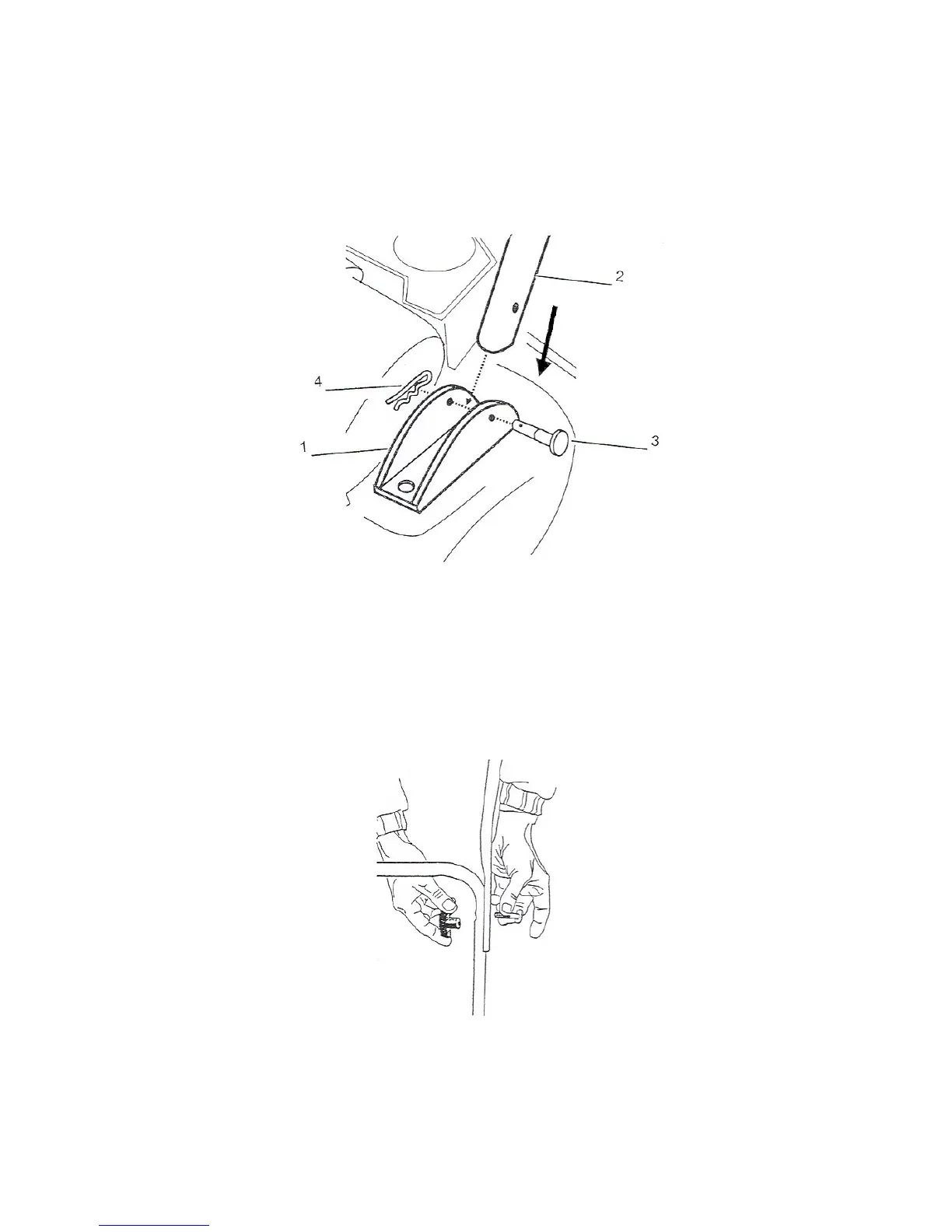

Mount the lower handle on the handle brackets with two (2) clevis and cotter pins. (Fig 3).
Figure 3
1. Handle Bracket 2. Lower Handle
3. Clevis Pin 4. Cotter Pin
2.
Attach the upper handle to the lower handle, with four (4) 5/16”-18 x 1 ½” shoulder bolts and
wing nuts (Fig 4)
Figure 4
3.
Secure the throttle cable neatly behind the handles using black tie wraps. Use one tie wrap for the
upper handle and one tie wrap for the lower handle.
