Howdens TOWER UNIT 3 DRAWERS - Drawer Installation and Unit Setup; Securing Drawers and Wall Mounting

UNB_TUDRAWER_INSTR_01.19Page 5 of 5
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
Use two people to stand up right.
14
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
15
Fix the wall mounting bracket to both sides of the Tower Unit.
(Use suitable xings when attaching to the wall).
13
1 2

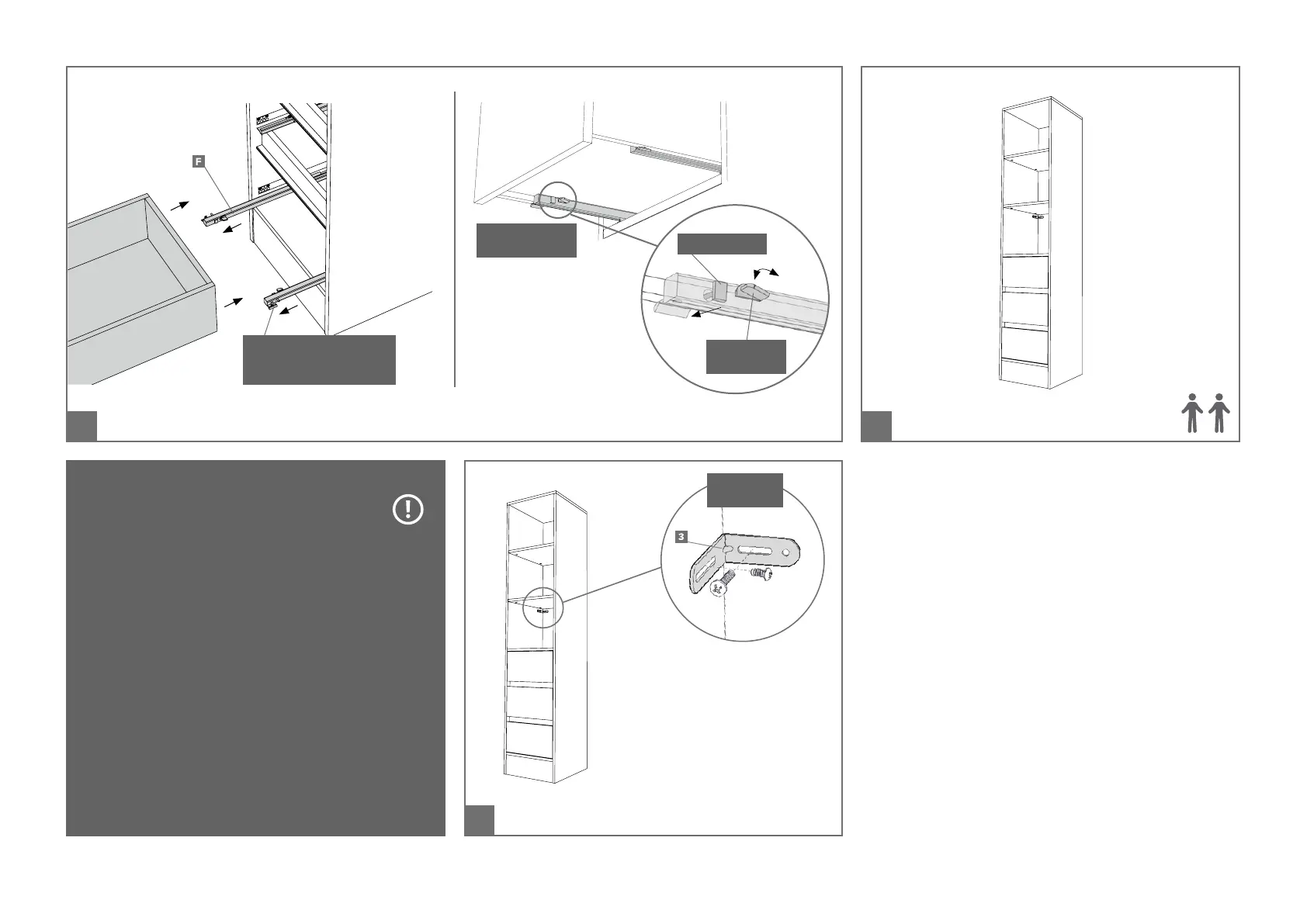

1 - Pull the sliding part of the lower drawer runners out (F) and sit
the drawer on top. Whilst holding the runners in place, slide the
drawer back until the drawer clicks into place.
2 - Use the locking button to secure the drawer. Repeat for all
drawers. To remove a drawer, reverse the operation.
We recommend you use
the Wall Mounting Brackets
provided to x the Tower Unit to
a wall (where possible). This will
prevent the unit being pulled over.
Use suitable xings.
WALL MOUNTING
BRACKETS
x2
Pull the sliding part of the
lower drawers out first and
hold in place.
Drawer shown
from underneath.
Locking button
Turn to
adjust height
Use suitable
wall fixings
