Motor
Manual
Parts list
1 Rotor and shaft 7 Motor housing 13 Cooling fan
2 DE flange 8 Stator winding 14 Retaining ring
3 DE oil seal 9 NDE shield 15 Fan cover
4 DE bearing 10 NDE bearing 16
Feet
5 Bearing retainer plate (secured) 11 Preload washer 17
Key
6 Terminal box 12 NDE oil seal
Over Hadstenvej 42, DK-8370 Hadsten
Tel : +45 86982111
Fax: +45 86981779
www.hoyermotors.com
Hoyer Motors
DRAWN
BREAK SHARP
Cross-Sectional view_HMA motor
31951
CHK'D
kg
01
WEIGHT:
Al.
A3
SHEET 1 OF 1SCALE:1:5
DWG NO.
TITLE:
REVISION
APPV'D
MFG
DO NOT SCALE DRAWING
MATERIAL:
DATESIGNATURE
NAME
EDGES
Q.A
DEBUR AND
© 2010 Hoyer Motors All intellectual property rights and all rights in know-how in relation to this drawing may not be reproduced, stored, or transmitted in any form by any means (electronic, mechanical,photocopying, recording or otherwise) without the prior written consent of Hoyer Motors. It is to be used only for the purposes specified by Hoyer
Motors and for no other purpose.
9 11 13
16
5
1517
12
1
42
6 7 8 10 14
3
1 Rotor w. shaft 10 N.D.E. bearing
2 D.E. flange 11 Pre-load washer
3 D.E.oil seal ring 12 N.D.E.oil seal ring
4 D.E. bearing 13 Cooling fan
5 Bearing plate 14 Snap ring
6 Terminal box 15 Fan cover
7 Motor housing 16 Feet
8 Winding stator 17 Key
9 N.D.E. shield
Part list
7.2 Bearing types for motor sizes
The general bearing types and sizes for the various motor
sizes and IE classes are shown in Table 2, Table 3, Table 5
and Table 6 for classes IE1 to IE4, respectively. Type 2Z and
2RS bearings or equivalent closed bearings are greased for
life. Always ensure that the shaft seals are intact. Note that
differences are possible between the bearing size and the
actual frame size.
Motors with re-greaseable bearings must be greased ac-
cording to Section 10.2 and the greasing data plate on the
motor. In case of doubt, contact Hoyer Motors.

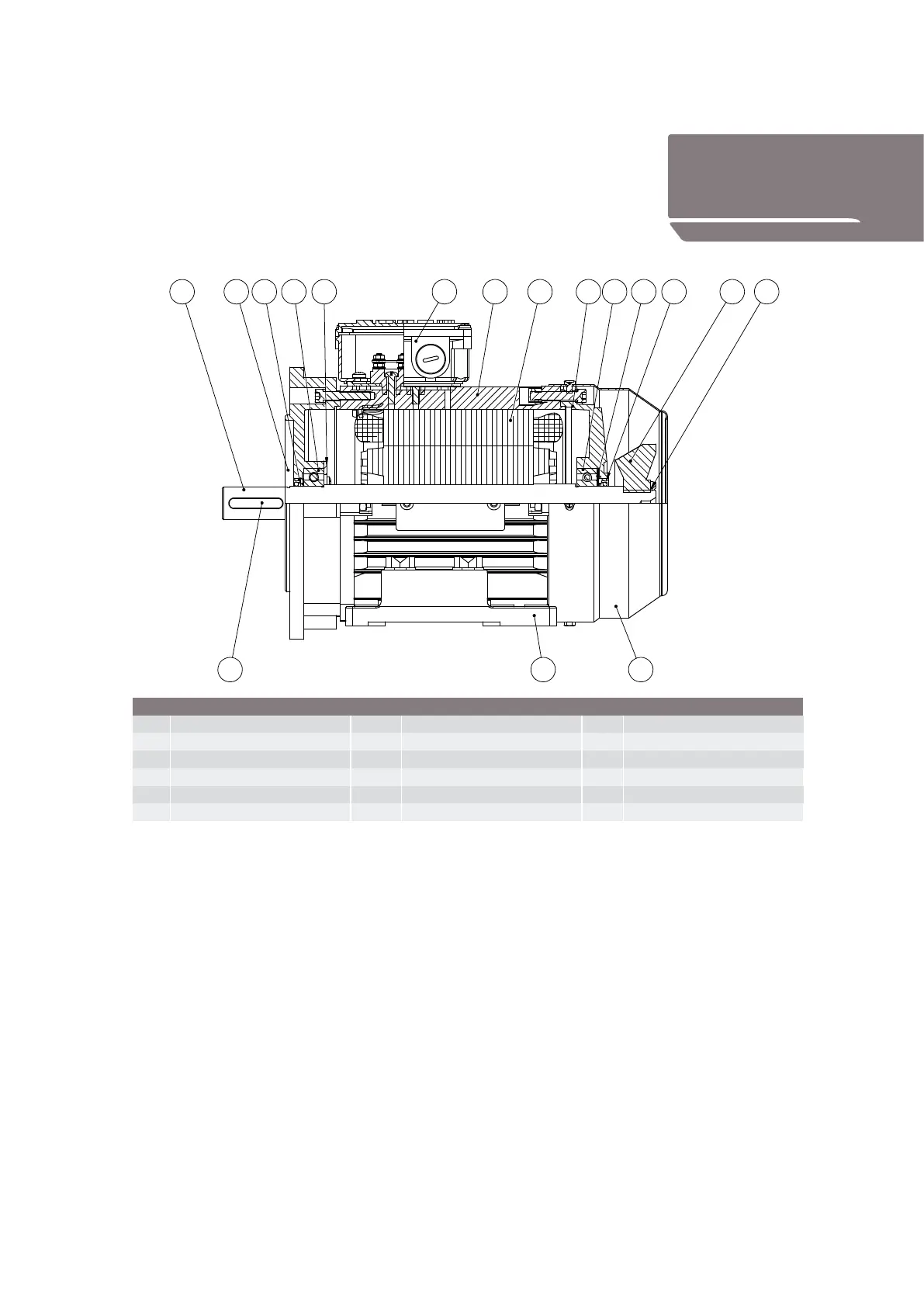

Figure 3: Cross-section view
of an aluminium motor
