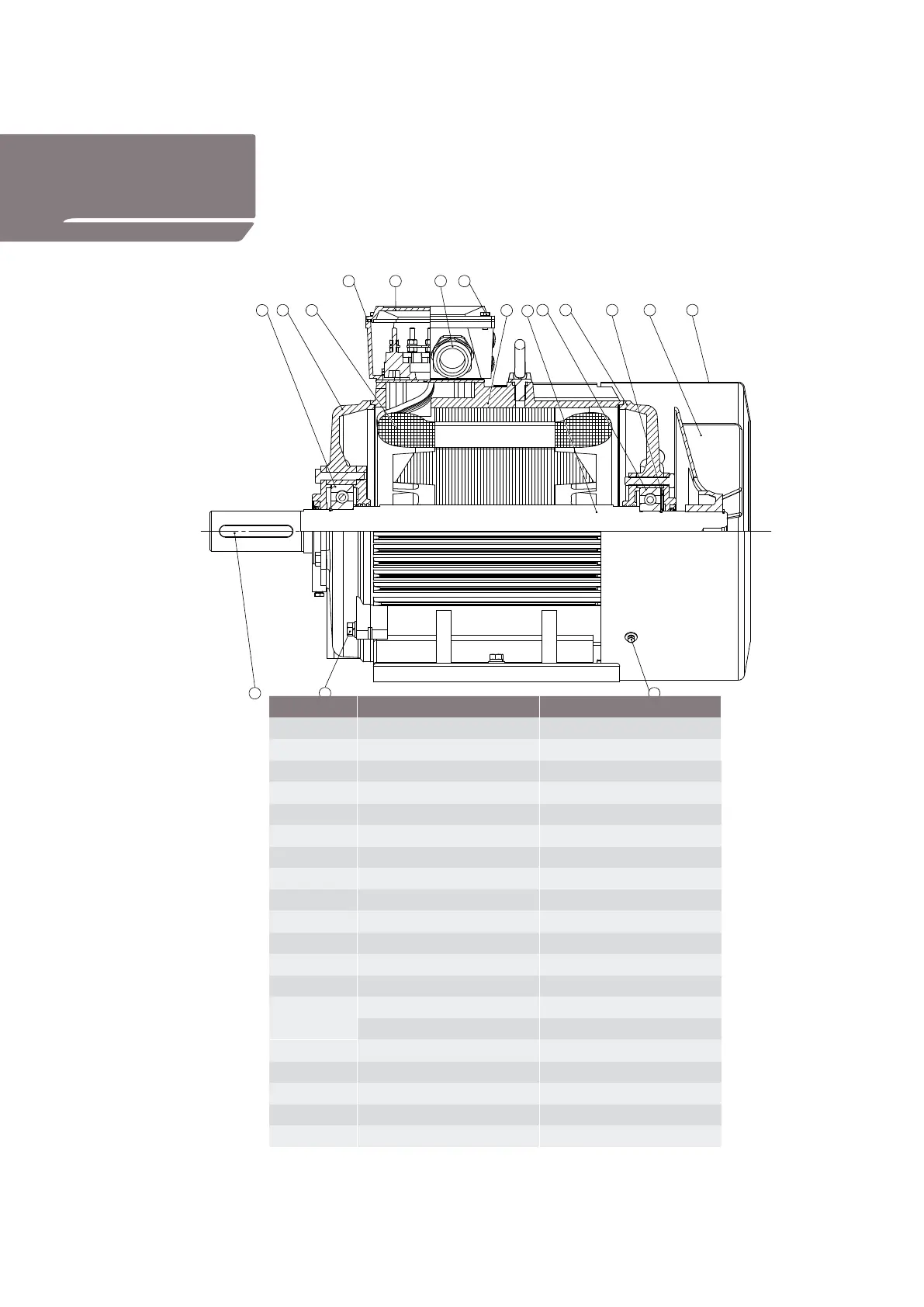

Figure 7 Three-phase motor exploded view
Over Hadstenvej 42, DK-8370 Hadsten
Tel : +45 86982111
Fax: +45 86981779
www.hoyermotors.com
Hoyer Motors
kg
WEIGHT:
BREAK SHARP
TIH
Motors and for no other purpose.
02
A3
SHEET 1 OF 1SCALE:1:20
DWG NO.
TITLE:
REVISION
DO NOT SCALE DR AWING
MATERIAL:
31411
Cross-Sectional view_HMC motor
DATESIGNATURE
NAME
EDGES
Q.A
MFG
APPV'D
CHK'D
DRAWN
DEBUR AND
© 2010 Hoyer Motors All intellectual property rights and all rights in know-how in relation to this drawing may not be reproduced, stored, or transmitted in any form by any means (electronic, mechanical,photocopying, recording or otherwise) without the prior written consent of Hoyer Motors. It is to be used only for the purposes specified by Hoyer
20200819
12 13
1118
1
4
5
6
7
8
2 3
9 10
14 15
17
1 10
2 11
3 12
4 13
5 14
6 15
7 16
8 17
9 18
D-end Bearing
D-end shield
Winding stator
Motor housing
Rotor with shaft
ND-end Bearing
ND-end shield
Preload washer
Cooling fan
Terminal cover
Terminal board with bolt
Bolt
Key
Part list
Fan cover
Bolt
Cable gland
Bolt
Gasket
Item Description Material
11, 17 Fasteners Steel
Oil seals Rubber and steel
2, 7 Flanges Aluminium/cast iron/steel
15 Terminal box cover Aluminium/cast iron
14 Gaskets Rubber
16 Nuts, lugs, studs, washers Brass/steel
16 Terminal board ABS/ceramic/resin
21 Terminal box Aluminium/cast iron
12 Cable glands or blind plugs Brass/steel/plastic
4 Frame Aluminium/cast iron/steel
3 Stator package Copper/steel/plastic
8 Preload washer Steel
18 Key Steel
5
Rotor assembly Steel and aluminium
Shaft Steel
1, 6 Bearing Steel/steel and rubber
9 Fan Plastic/aluminium
10 Fan cover Steel
19 Feet Aluminium/cast iron
20 Bearing caps Cast iron/steel
Table 18 Components of a three-phase motor
