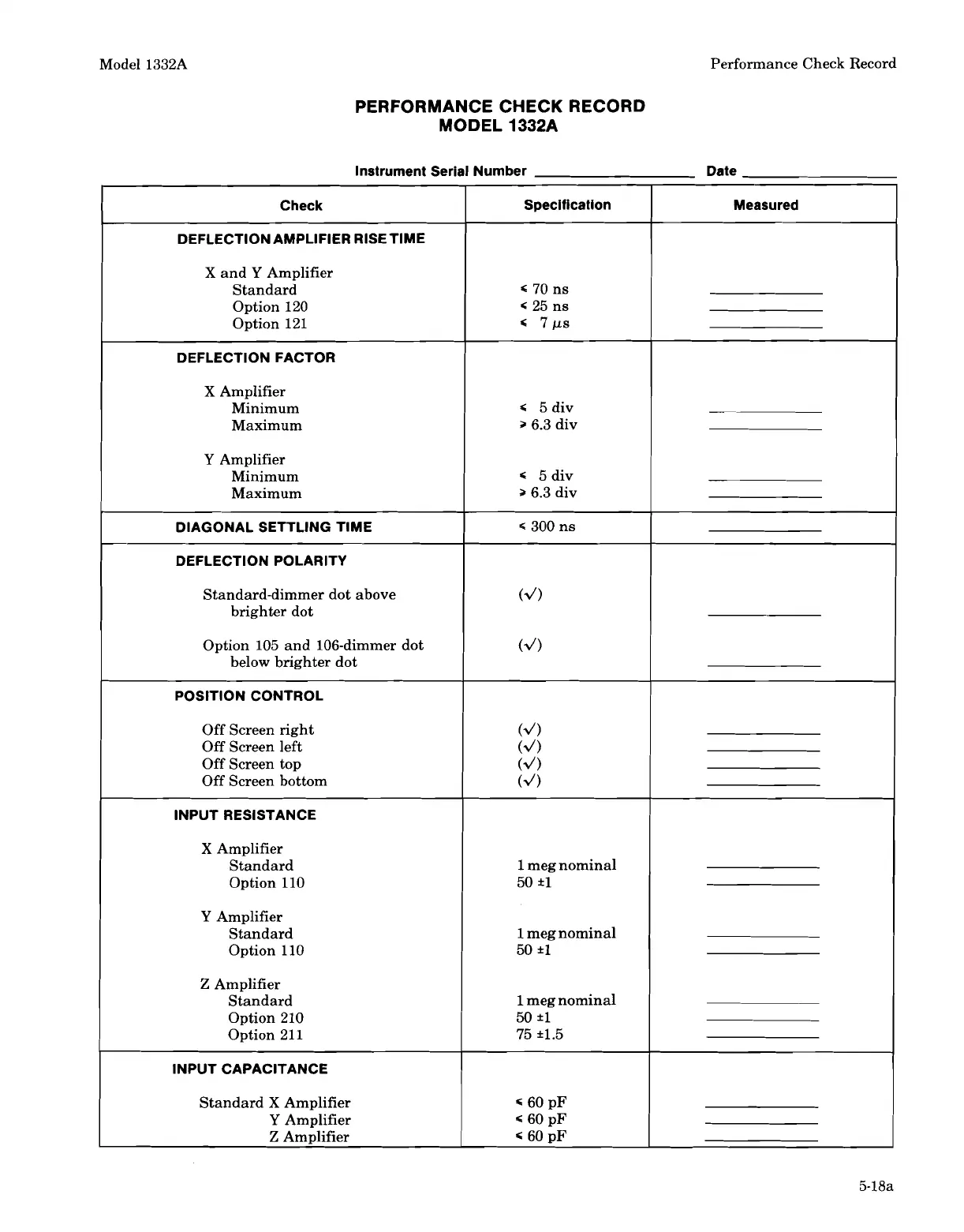

Model 1332A
PERFORMANCE CHECK RECORD
MODEL
1332A
Performance Check Record
Date
Measured
Instrument Serial
Check
DEFLECTION AMPLIFIER
RISE TlME
X and Y Amplifier
Standard
Option 120
Option 121
DEFLECTION FACTOR
X Amplifier
Minimum
Maximum
Y Amplifier
Minimum
Maximum
DIAGONAL SETTLING TIME
DEFLECTION POLARITY
Standard-dimmer dot above
brighter dot
Option 105 and 106-dimmer dot
below brighter dot
POSITION CONTROL
Off Screen right
Off Screen left
Off Screen top
Off Screen bottom
INPUT RESISTANCE
X Amplifier
Standard
Option 110
Y Amplifier
Standard
Option 110
Z Amplifier
Standard
Option 210
Option 211
INPUT CAPACITANCE
Standard X Amplifier
Y Amplifier
Z Amplifier
Number
Specification
70 ns
G 25 ns
7ps
G 5 div
r 6.3 div
G 5 div
6.3 div
G 300 ns
(4
(4
(4
(4
(4)
(4)
1 meg nominal
50
*1
1 meg nominal
50
*1
1 meg nominal
50
*1
75 t1.5
60 pF
c 60 pF
G 60 pF
