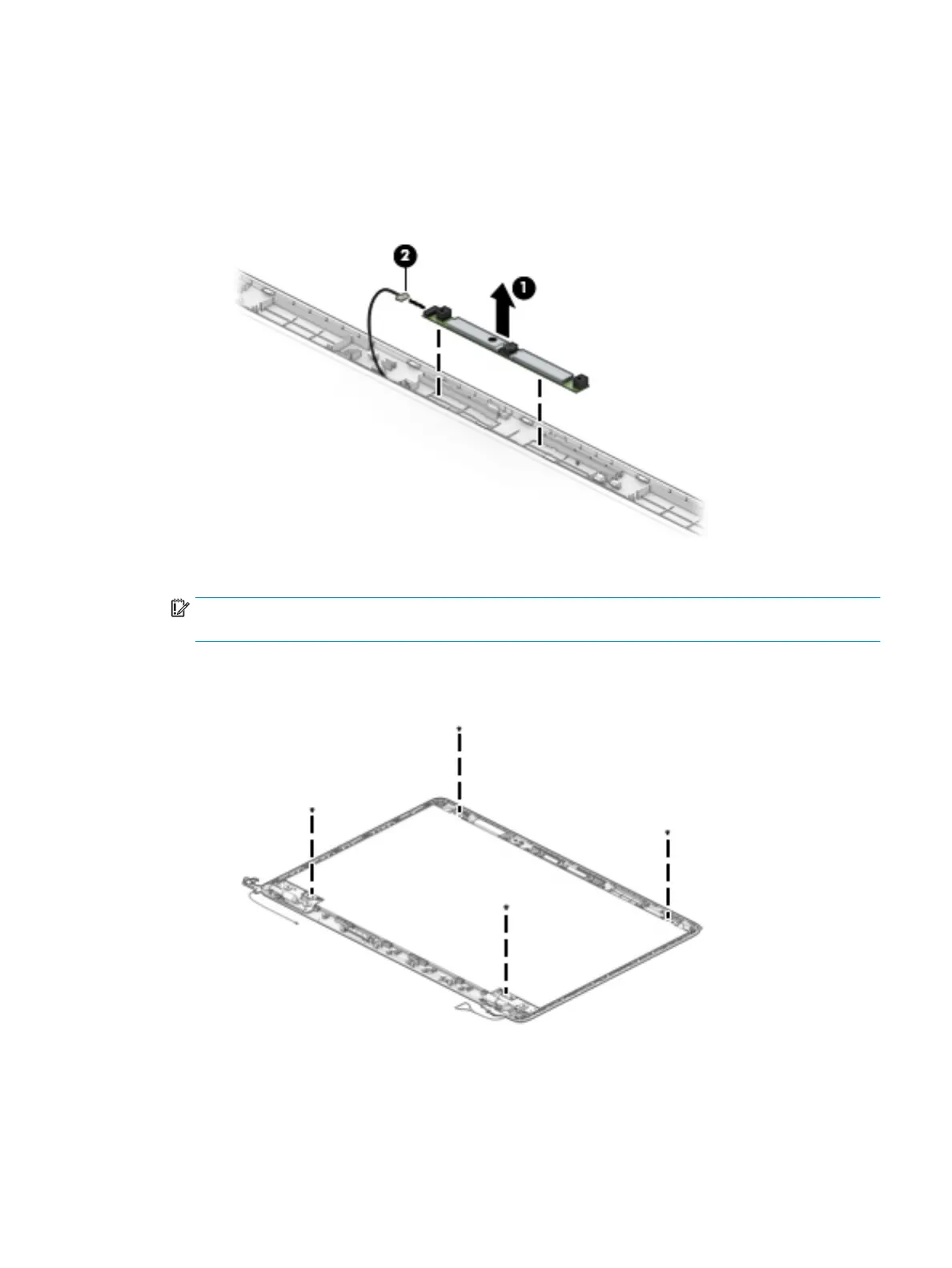

a. Detach the camera module (1) from the display back cover. (The module is attached with double-
sided adhesive.)
The HD camera module is available using spare part number L23237-001.
The VGA camera module is available using spare part number L23238-001.
b. Disconnect the cable (2) from the camera/microphone module.
3. If it is necessary to replace the display panel:
IMPORTANT: HD panels are secured to the display enclosure with screws. FHD panels are secured with
tape.
a. HD panels:
Remove the four Phillips M2.0×3.0 screws that secure the panel to the display enclosure.
FHD panels:
Component replacement procedures 55
