b. Pull the tape out from behind the left and right sides of the panel.
NOTE: You have to pull on the tape multiple times before it is completely removed.
c. HD and FHD panels:

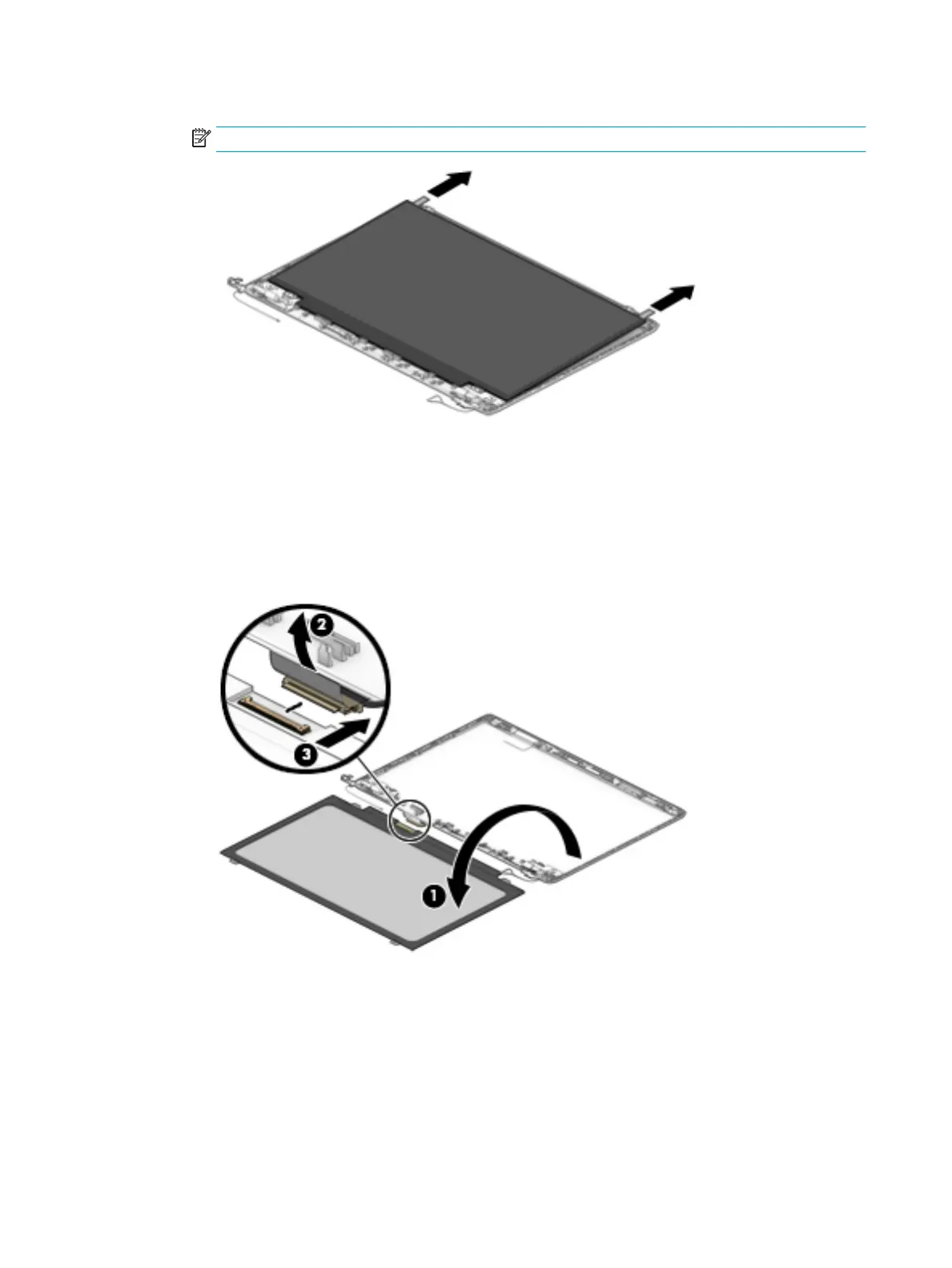

Swing the top edge of the display panel forward and position the panel upside down next to the
display enclosure (1).
d. Release the adhesive support strip (2) that secures the display panel cable connector to the
display panel.
e. Disconnect the display panel cable (3) from the display panel.
f. Remove the display panel.
Raw display panels are available using the following spare part numbers:
L23208-001: FHD, anti glare
L23209-001: FHD, BrightView
L23210-001: HD, anti glare
L23211-001: HD, BrightView
