HP 14s User Manual

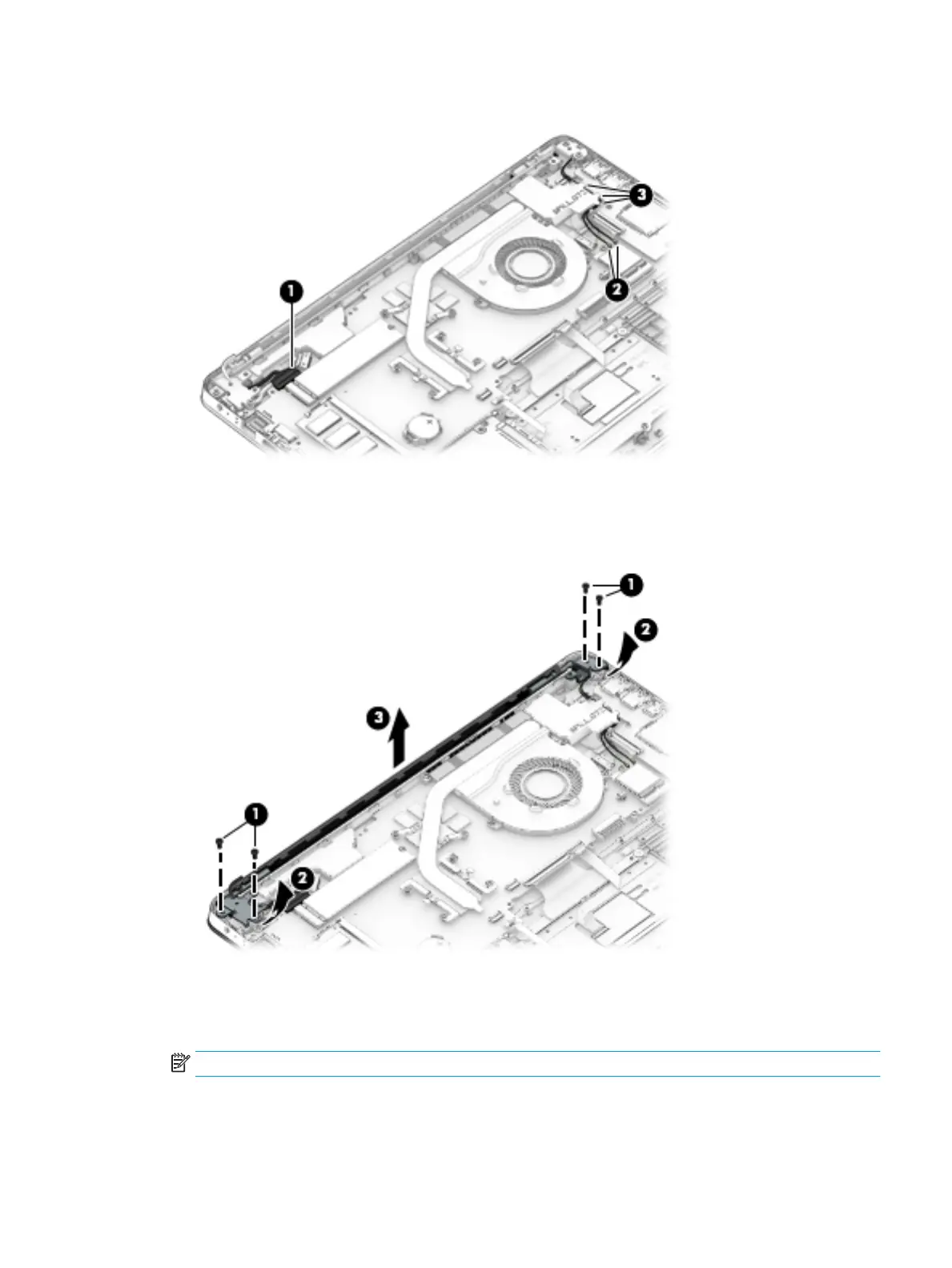

3. Remove the antenna cables from their routing path in the computer (3).
4. Remove the four Phillips PM2.5×6.0 screws (1) that secure the display assembly to the computer.
5. Lift the display to bend the hinges upward (2).
6. Separate the display from the computer (3).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display bezel, ex the inside of the top edge (1), the left edge (2), the bottom edge (3),
and the right edge (4) of the display bezel until the bezel disengages from the display enclosure.
NOTE: The display will not be connected to the computer as shown in the following image.
Component replacement procedures 57

HP 14s Specifications

General

Display Size	14 inches
Display Resolution	1920 x 1080
Operating System	Windows 10 or Windows 11
Graphics	Intel UHD Graphics or AMD Radeon Graphics
Wireless	Wi-Fi 5 and Bluetooth 4.2
Ports	1 x USB-C, 2 x USB-A, 1 x HDMI, 1 x Headphone/Microphone combo
Weight	1.46 kg
