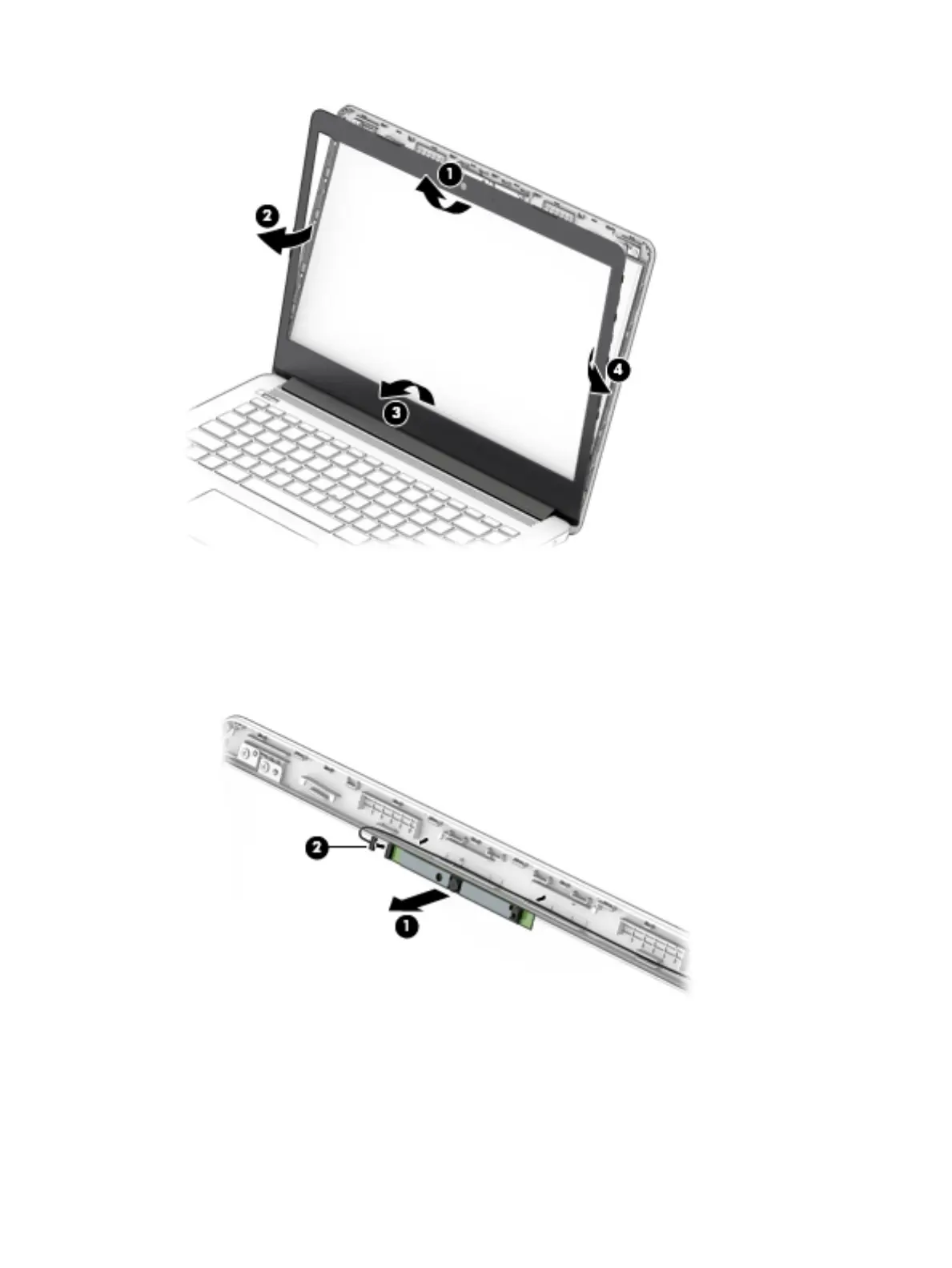

2. To remove the camera/microphone module:
a. Position the display assembly with the top edge toward you.
b. Pry up to disengage the camera/microphone module from the adhesive that secures it to the
display (1).
c. Disconnect the cable (2) from the module.
3. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the top of the
enclosure.
58 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
