7. If replacing the display enclosure, be sure that the subcomponents (including the camera/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.

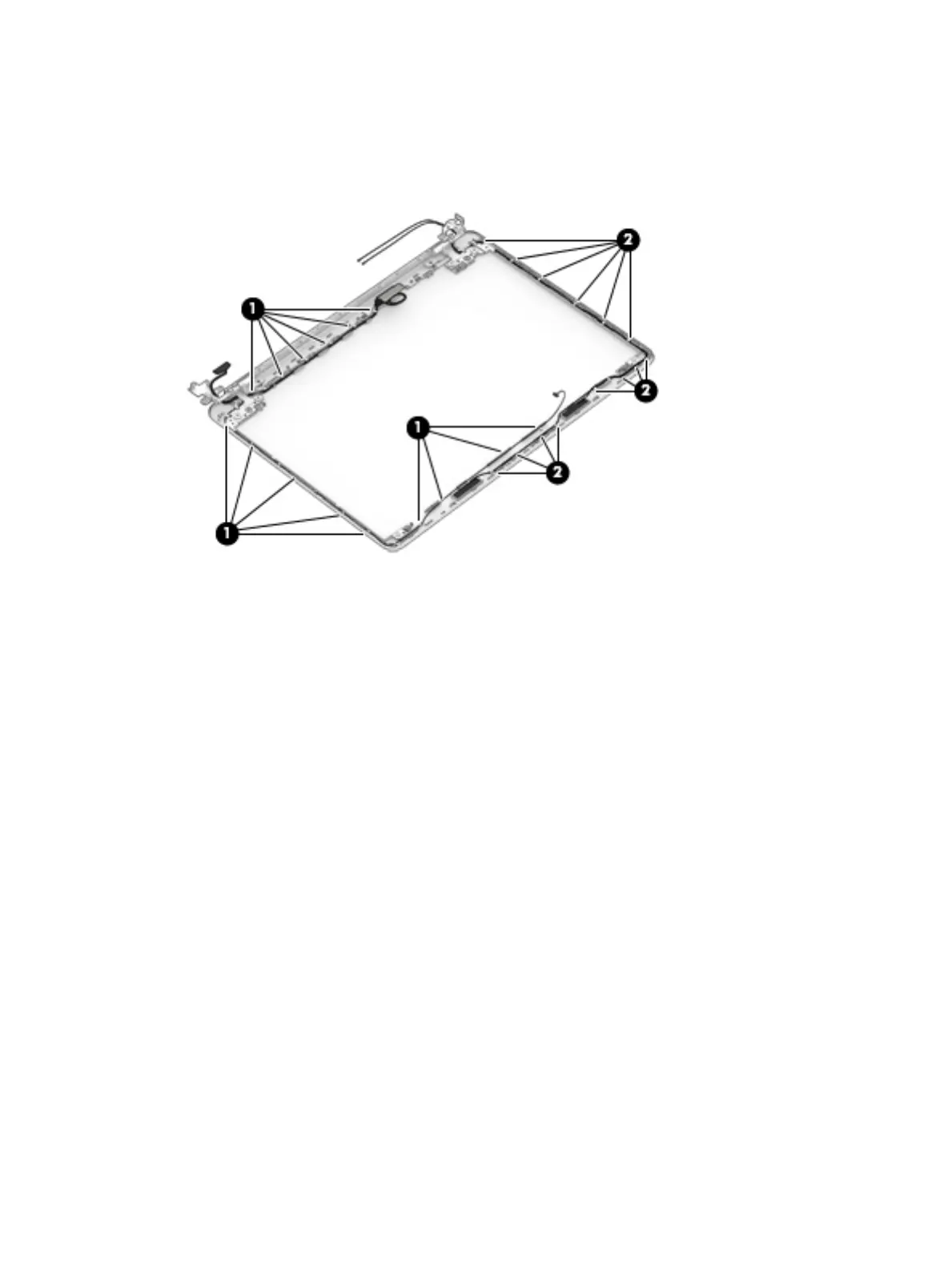

Use the following image to determine proper display cable (1) and antenna cable (2) routing.
Reverse this procedure to reassemble and install the display assembly.
