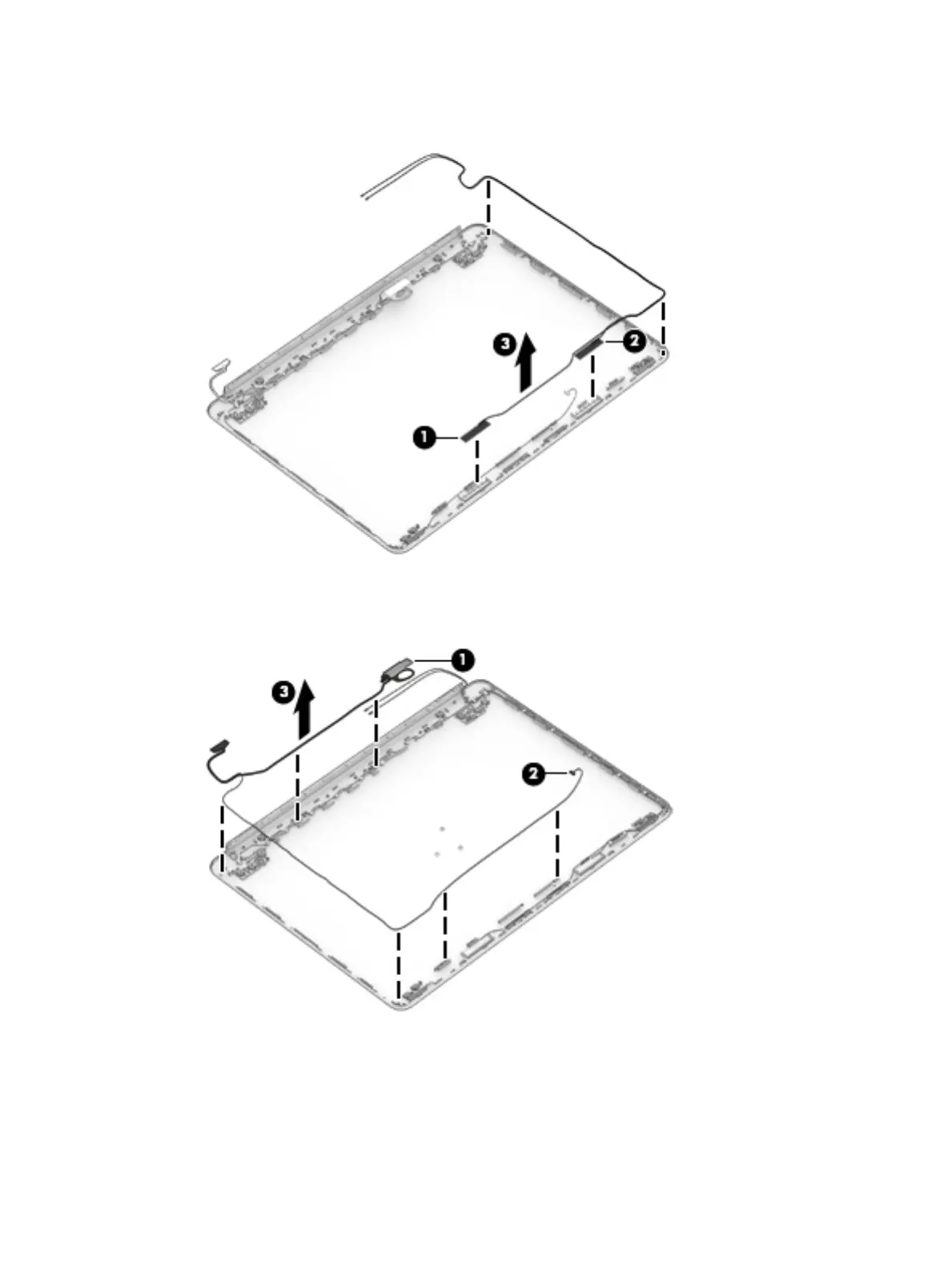

5. To remove the wireless antennas and cables, peel the left(1) and right (2) antennas o the display
enclosure, and then remove the antennas and cables from the display enclosure (2).
6. To remove the display/camera cable, disconnect the cable from the board at the bottom of the display
(1) and the camera at the top of the display (2), and then remove the cable from the clips built into the
side of the display enclosure (3).
Component replacement procedures 61
