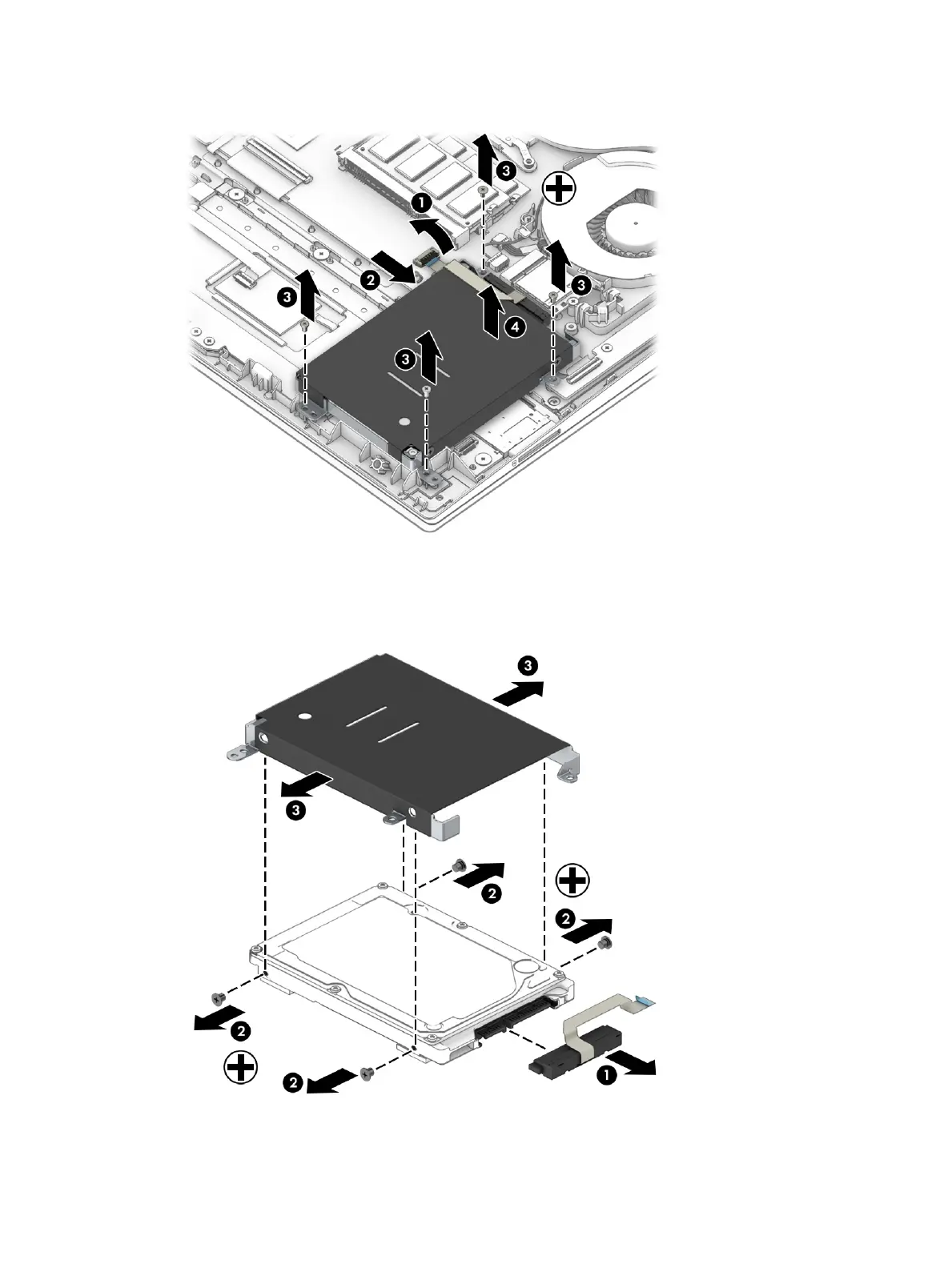

3. Remove the hard drive from the computer (4).
4. To remove the hard drive bracket and connector, pull the connector away from the hard drive (1).
5. Remove the four Phillips M3.0×3.0 screws (2) that secure the bracket to the hard drive.
6. Pull the bracket away from the sides of the hard drive to remove it (3).
Reverse this procedure to reassemble and install the hard drive.
48 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
