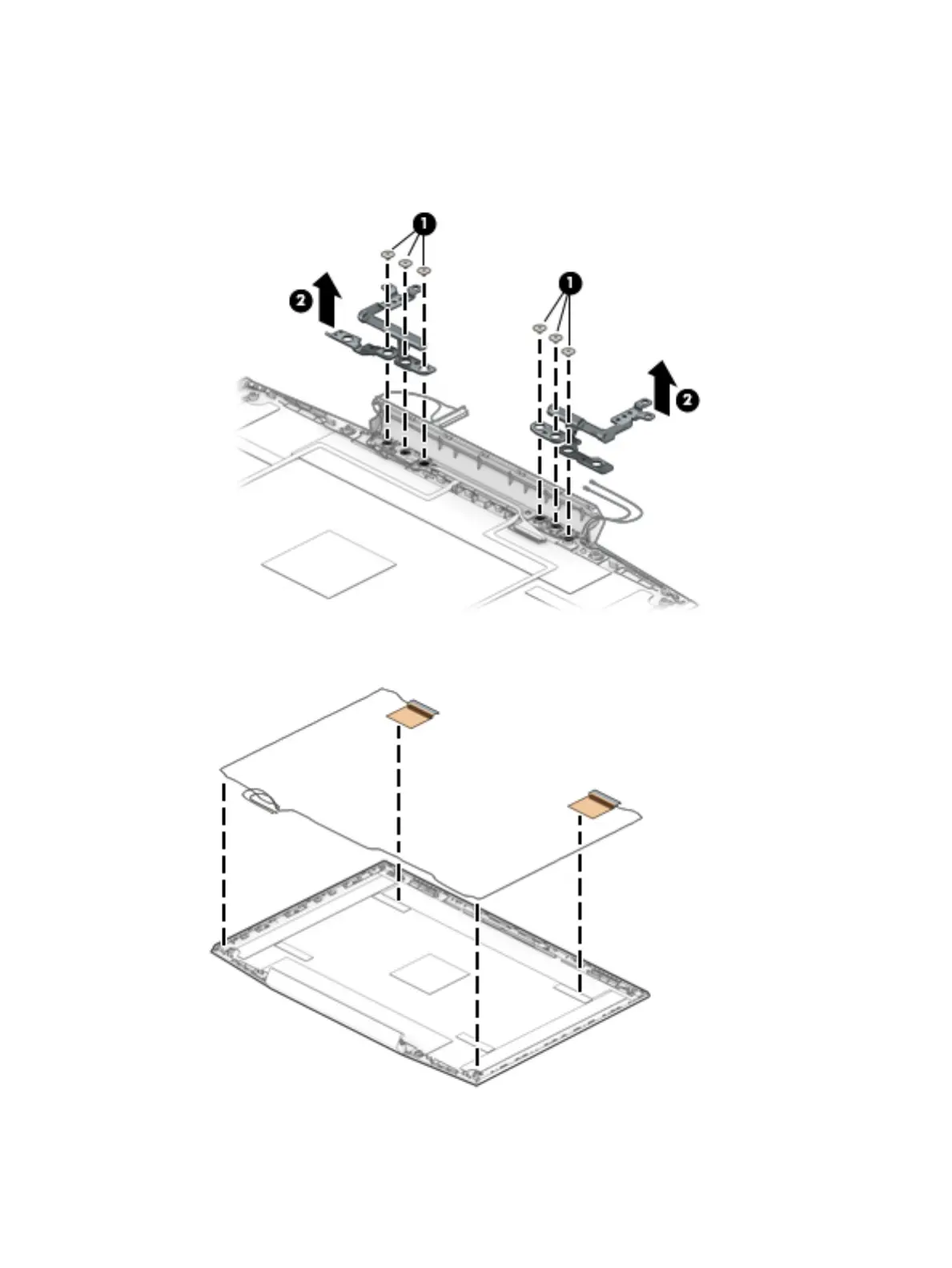

2. To remove the display hinges:
a. Remove the three Phillips broad head M2.5×3.0 screws (1) that secure each hinge to the display
enclosure.
b. Remove the display hinges (2).
3. To remove the wireless antennas an cables, release the cables from the clips built into the side of the
display enclosure, and then remove the antennas and cables.
Component replacement procedures 65
