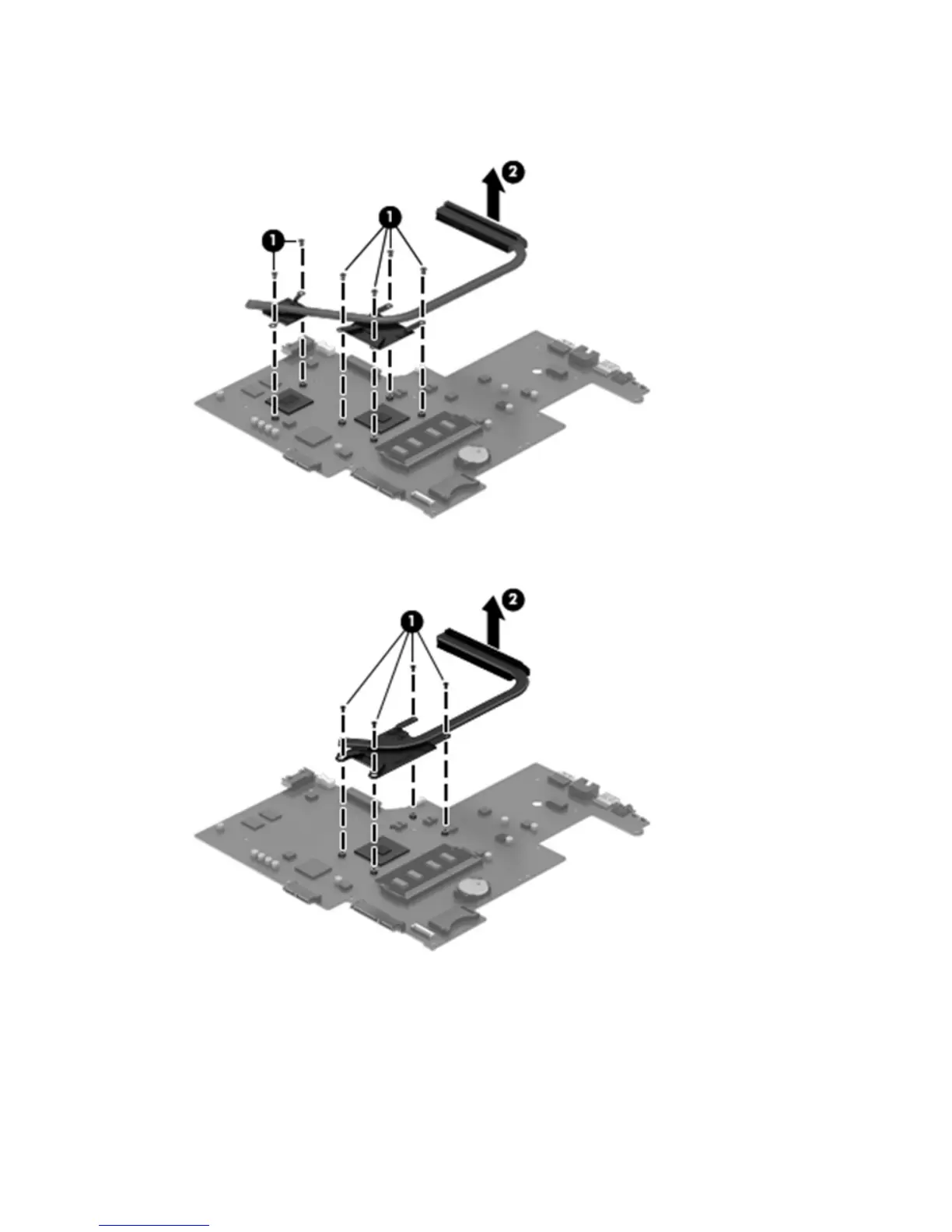

3. Remove the heat sink assembly (2) from the system board.
Discrete graphics:
UMA graphics:
●
Discrete graphics: Thermal paste is used on the processor and associated heat sink area (1)(2), as well
as the graphics chip and associated heat sink area (3)(4).
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
