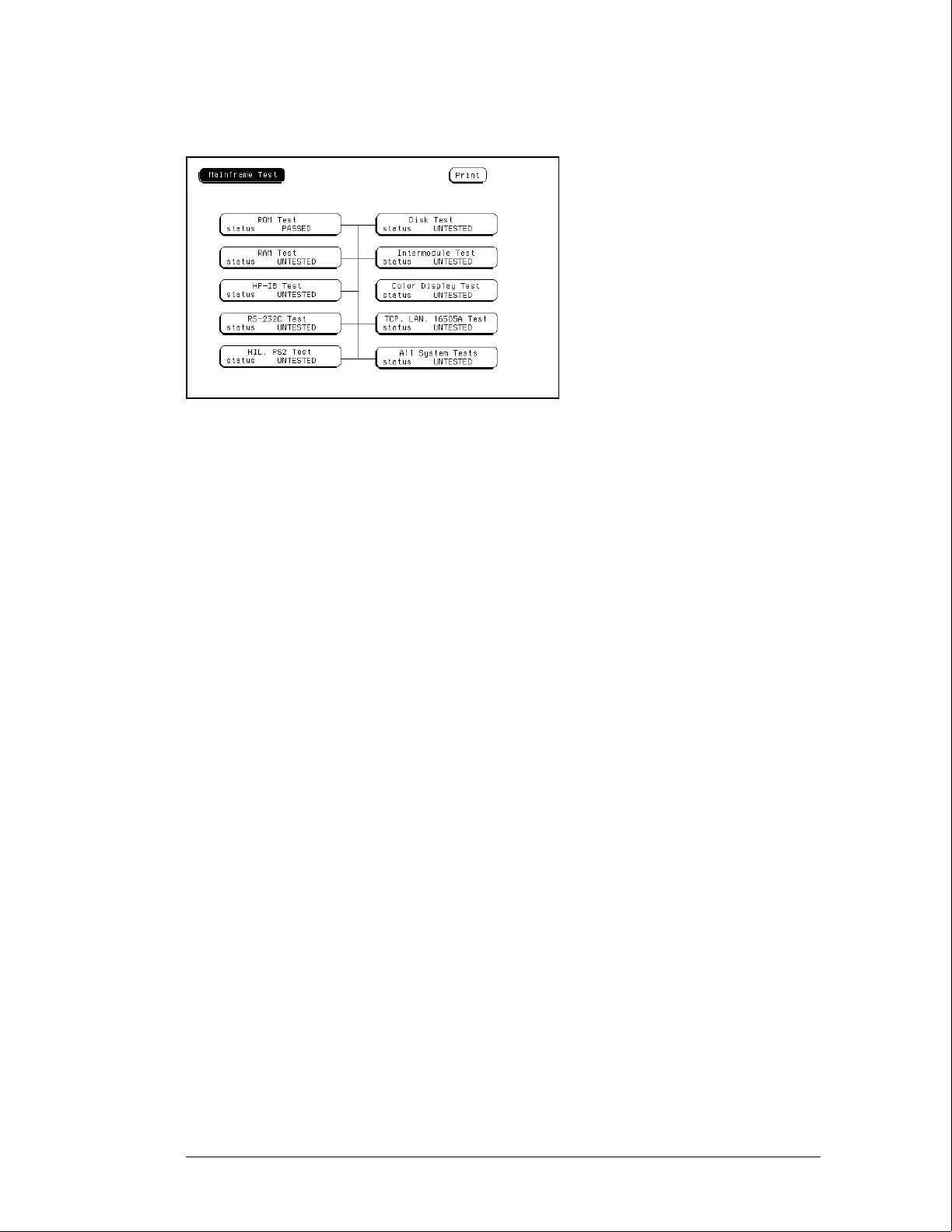

7 To exit the ROM Test, select Done. Note that the status changes to Passed or Failed.
8 Install a formatted disk that is not write-protected into the flexible disk drive. Run
the remaining All System Tests in the same manner.
The Color Display Test is not part of this troubleshooting. The Color Display Test is used in
chapter 4, "Calibrating and Adjusting," to adjust the color display.
99
Exit the mainframe tests.
a Select Done from any test screen.
b Select Mainframe Test, then select Test System in the pop-up menu.
c Select Configuration, then select Test in the pop-up menu.
d Select the box near the center of the screen to exit the test system.
10
If you are performing the self-tests as part of the troubleshooting flowchart, return
to the flowchart.
Troubleshooting
To run the self-tests
5–20
