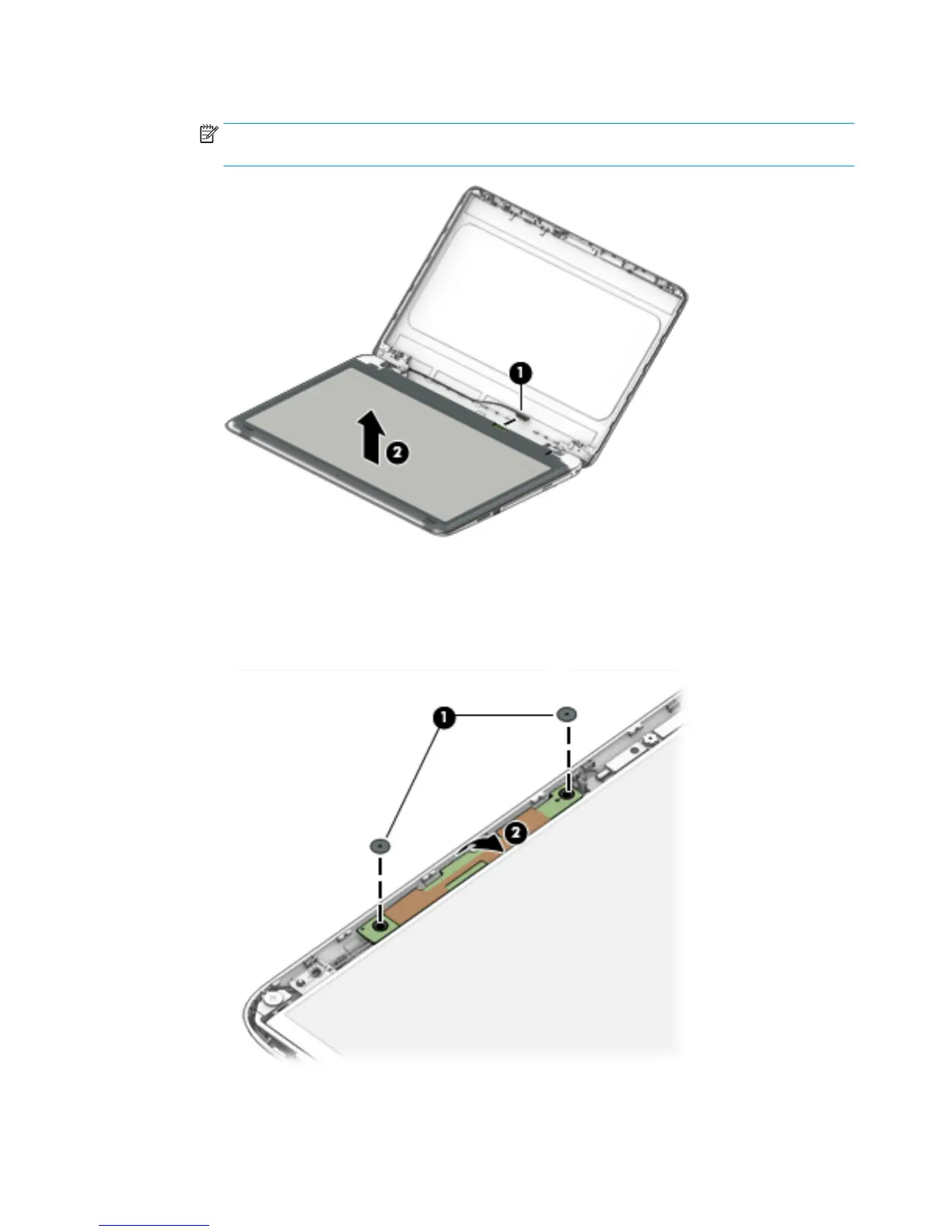

d. Remove the display panel from the computer (2).
NOTE: In this procedure the display will not be connected to the computer as shown in the
following image.
5. To remove the touch control board from the display:
a. Remove the two Phillips PM2.0×2.0 screws (1) that secure the touch control board to the top of the
display assembly.
b. Rotate the board upside down to access the connectors underneath (2).
c. Disconnect the cable from the end of the board (1).
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
